Projen Taiwan

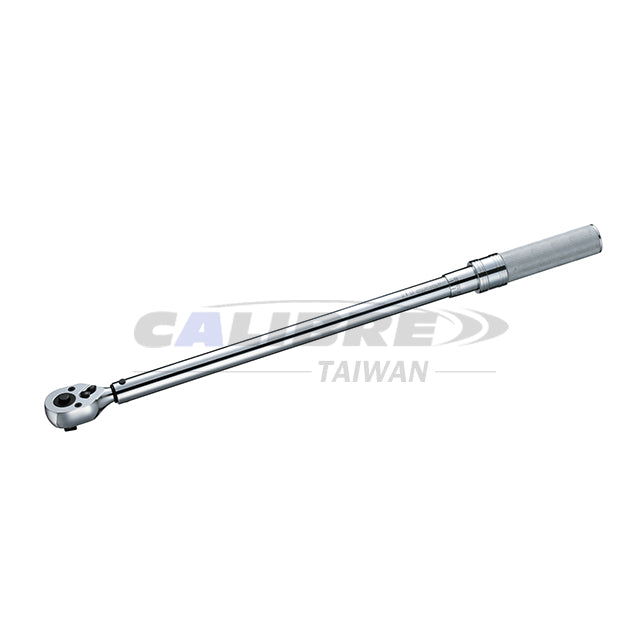

CAB600026 TAIWAN CALIBRE 32T Push CW +-3% Industrial Torque Wrench

CAB600026 TAIWAN CALIBRE 32T Push CW +-3% Industrial Torque Wrench

Size

Torque wrench inch pounds

Torque wrench inch pounds: Firstly, the CAB600026 Industrial wrench is ideal for precise fastening in automotive/aerospace industries. Furthermore, it is available in 3/8" Dr. (20-100 FT-LB) and 1/2" Dr. (30-250 FT-LB), offering +-3% accuracy (DIN ISO 6789).

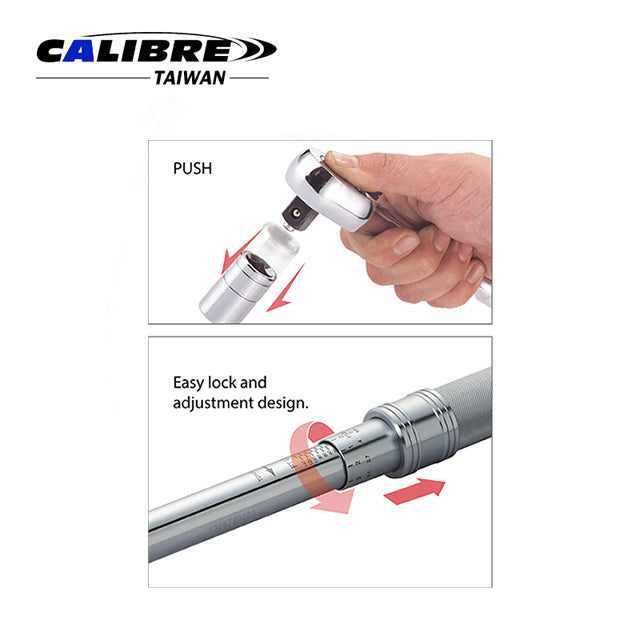

To adjust it, press the lock ring for easy, non-slip torque adjustment using the precise laser scales. Finally, the robust ratchet head is quick-release and supports both CW/CCW directions. An audible click signals when the desired torque is reached.

Size:

  • CAB600026-382C: 3/8" Dr. 20~100 FT-LB, L:433mm
  • CAB600026-122C: 1/2" Dr. 30~250FT-LB, L:610mm

Feature:

  • Industrial application.
  • Wide range of choice.
  • Tolerance of torque ±3%.
  • Easy torque-adjusting design brings energy-saving benefit.
  • Applied to both clockwise and counterclockwise directions.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.

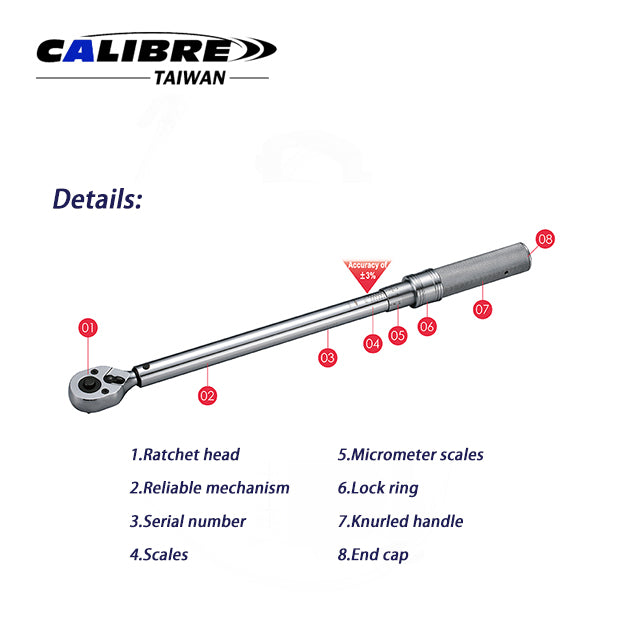

Details:

  1. Ratchet head: A highly robust ratchet mechanism for CW and CCW directions application. Quick released design for changing socket quickly. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. An audible and palpable signal indicates automatically when the desire torque value is achieved.
  3. Serial number: Each piece stamping serial number for traceability.
    Scales: Easy read laser scale is flexible for multi units and double scales for different market need.
  4. Micrometer scales: Very precise adjustment by visible micrometer laser scales on handle ensure optimal and simplified readings while operation. The micrometer scale for precision adjustment is in integral values, for user easily take round figure while operation.
  5. Lock ring: Easy torque adjustment by press down the Lock-ring, brings energy saving and automatically lock device to avoid accidentally altering setting.
  6. Knurled handle: Non-slip knurled handle design; customized color handle is available.
  7. End cap: Aluminum poly end cap with standard or customized design.

Application:

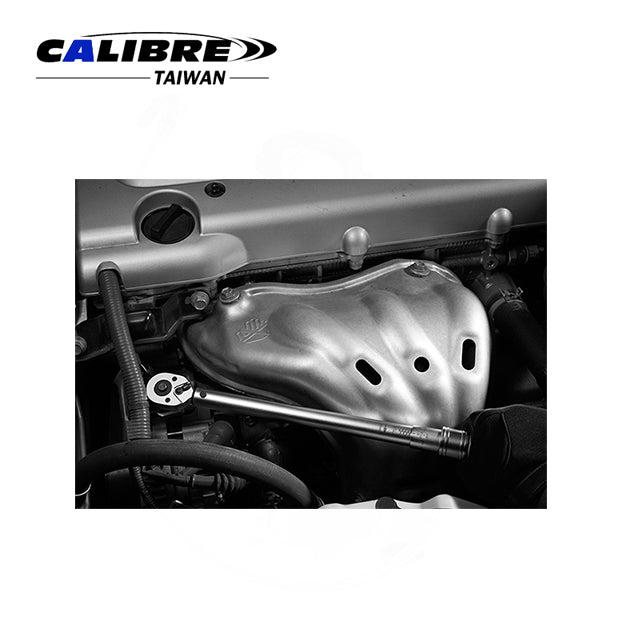

  • Automotive Manufacturing & Maintenance
  • Aerospace & Marine Industry
Packaging:
  • 1pc/Blow Mould Case
  • CAB600026-382C: 12pc/16.20/17.11kgs/1.36'
  • CAB600026-122C: 12pc/26.52/27.59kgs/1.88'
