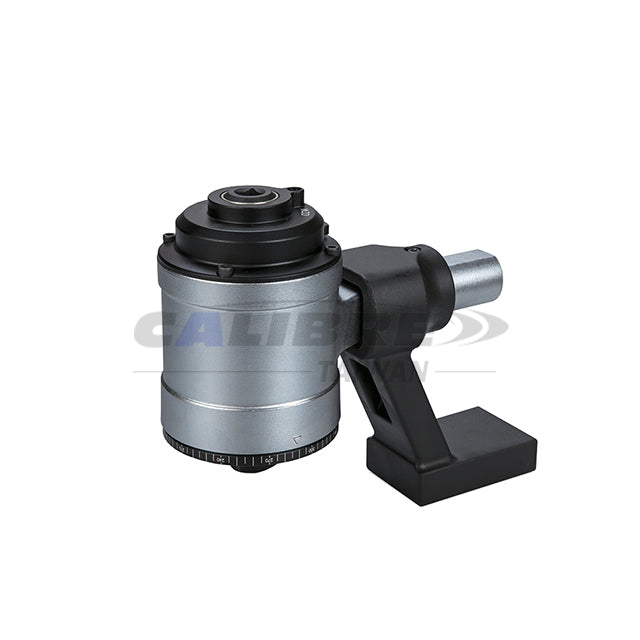

CAB600025 TAIWAN CALIBRE 1/2" Dr (F) x 1" Dr (M) Torque Multiplier

CAB600025 TAIWAN CALIBRE 1/2" Dr (F) x 1" Dr (M) Torque Multiplier

Size

Torque multiplier

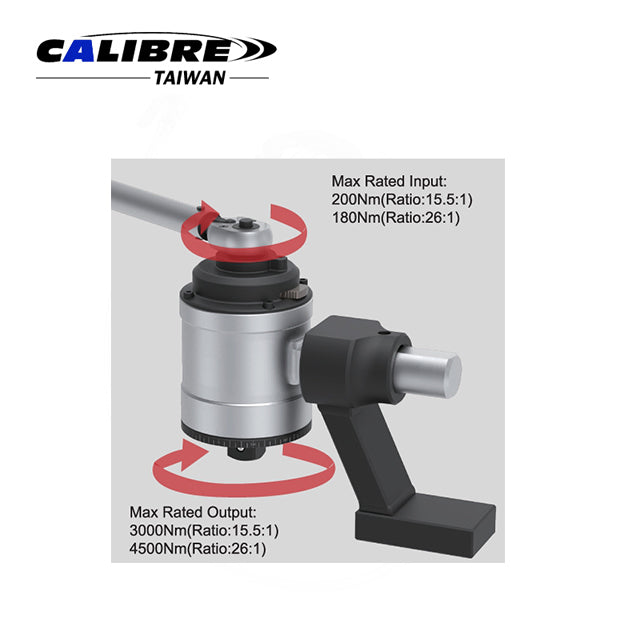

Torque multiplier: Select the 1/2" Dr input and 1" Dr output, then attach the proper reaction bar. Engage the double planetary-gear system to achieve a 26:1 torque boost with ±5% accuracy. Apply steady force to replace long lever arms safely, while the anti-backlash mechanism ensures smooth operation. The robust construction supports high loads up to 4500 Nm for efficient tightening in heavy-duty applications.

Size:

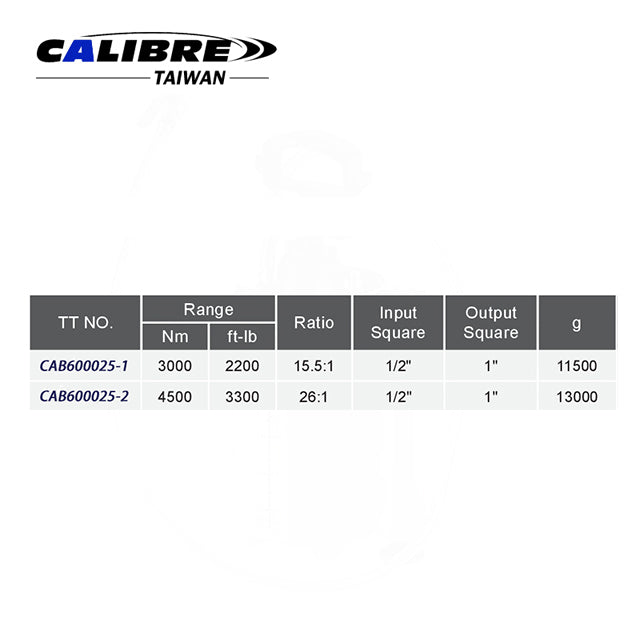

  • CAB600025-1: 1/2" Dr (F) x 1" Dr (M) 3000Nm
  • CAB600025-2: 1/2" Dr (F) x 1" Dr (M) 4500Nm

Feature:

  • Double planetary-gear-carriers bring high load capacity.
  • With high ratio gearbox 26:1, multiplication accuracy ±5%.
  • High ratios offer an idea to replace long lever arms and heavy wrenches.
  • Supplied with 2 different reaction bars.
  • Robust construction for long lifetime use.
  • Anti-backlash mechanism for safety and comfortable operation.
Packaging:

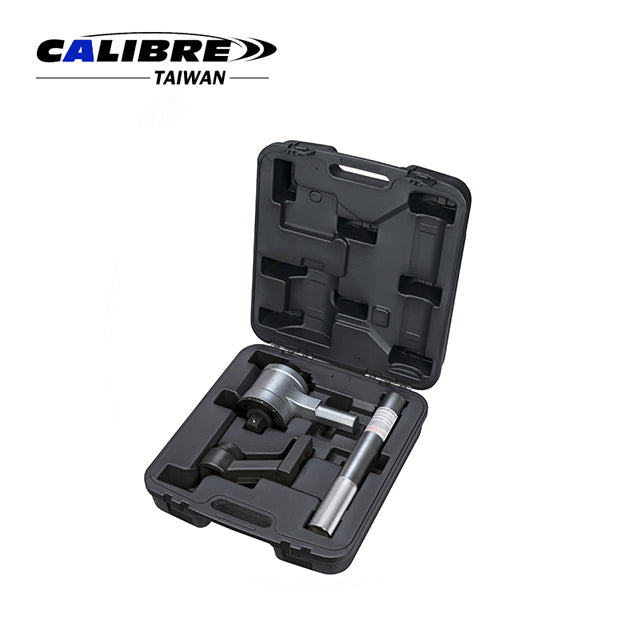

  • 1Set/Blow Mould Case
  • CAB600025-1: 1Set/14.61/15.59kgs/1.24'
  • CAB600025-2: 1Set/15.72/16.72kgs/1.24'
