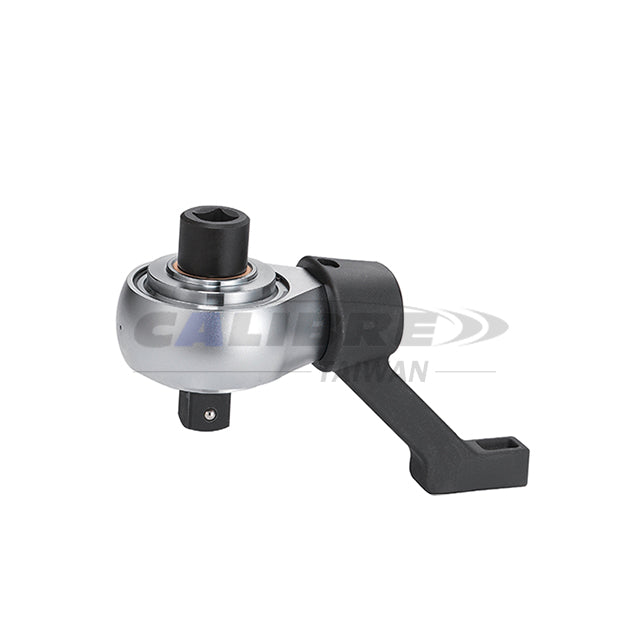

CAB600023 TAIWAN CALIBRE Torque Multiplier

CAB600023 TAIWAN CALIBRE Torque Multiplier

Size

Torque multiplier wrench

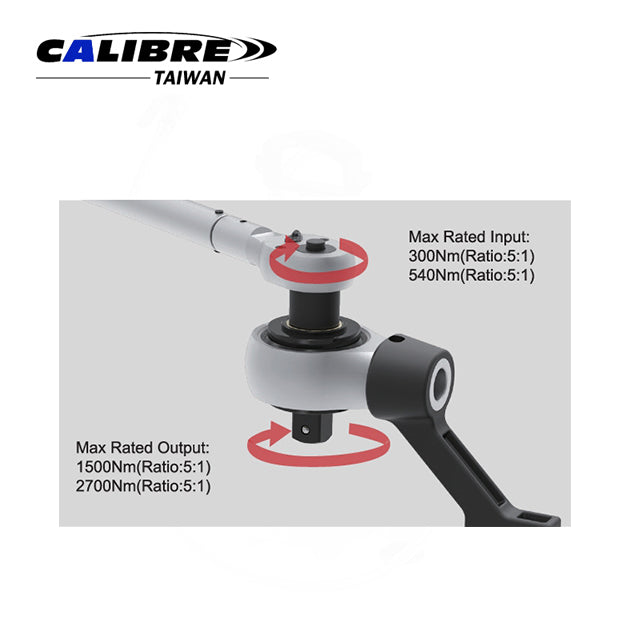

Torque multiplier wrench: Select the proper drive size, attach the input wrench, and position the reaction bar securely. Apply force to achieve 5:1 torque output through the planetary gear system. Ensure stable support to reach accurate high-torque tightening up to 2700 Nm.

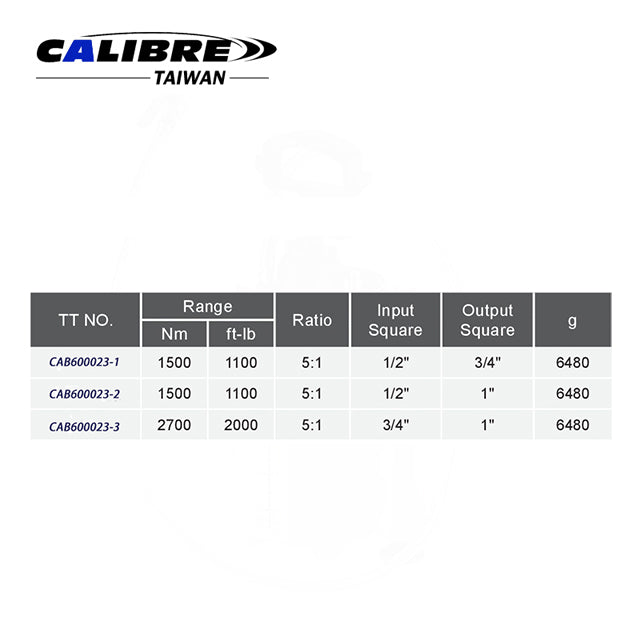

Size:

  • CAB600023-1: 1/2" Dr (F) x 3/4" Dr (M) 1500NM
  • CAB600023-2: 1/2" Dr (F) x 1" Dr (M) 1500NM
  • CAB600023-3: 3/4" Dr (F) x 1" Dr (M) 2700NM

Feature:

  • Planetary gear carrier mechanism makes high transmission efficiency and load capacity.
  • 5:1 torque multiplication.
  • Multiplication accuracy ±5%.
  • Supplied with 2 reaction bars.

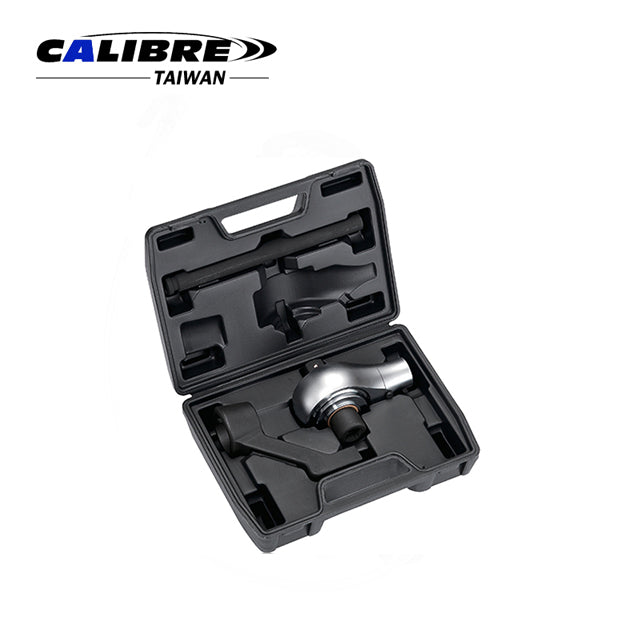

Packaging:
  • 1Set/Blow Mould Case
  • 2Set/14.6/15.3kgs/0.92'
