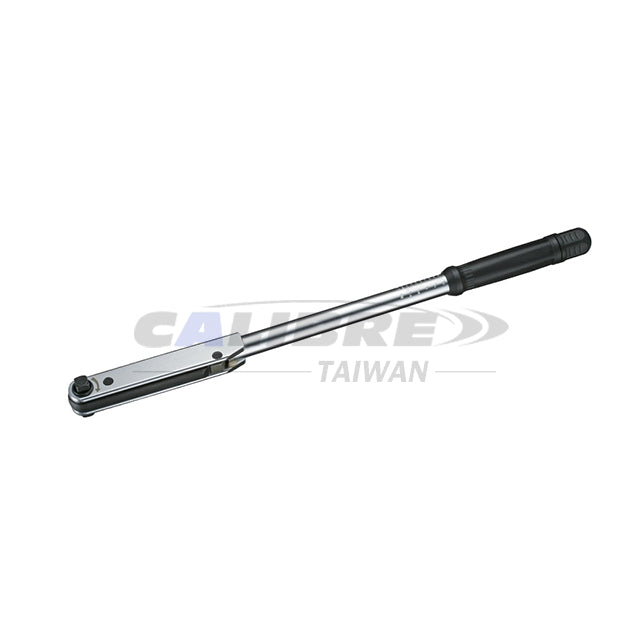

CAB600018-CAB600022 TAIWAN CALIBRE Classic Adjustable Torque Wrench

CAB600018-CAB600022 TAIWAN CALIBRE Classic Adjustable Torque Wrench

Adjustable wrench ratchet

Adjustable wrench ratchet setup is easy. First and foremost, pull out the crank within ninety degrees. In addition, select your preferred scale. Specifically, set the torque. After that, push through the drive to engage. As a result, apply steady force. In conclusion, stop immediately upon hearing a loud click sound. Consequently, this ensures safety.

Feature:

  • Specifically, the chromium-molybdenum push-through drive boosts stability and reliability.
  • Furthermore, the chromium-vanadium steel head enhances strength and lifespan.
  • Handle: Both P.P Plastic and metal handle is available.

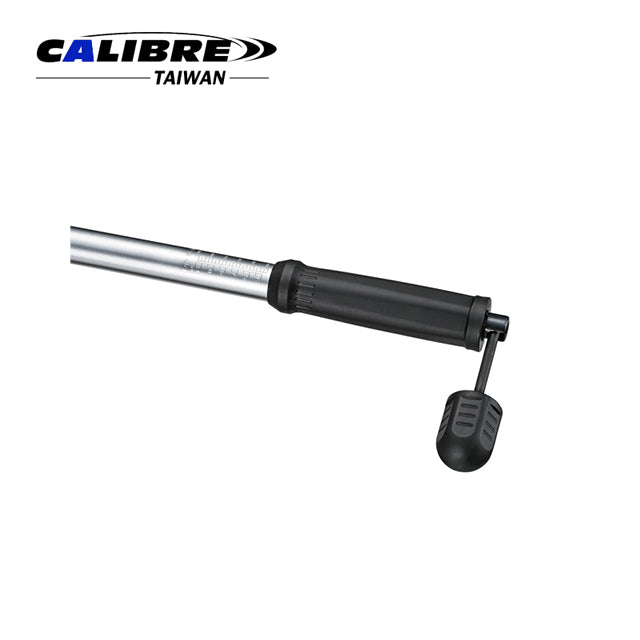

  • In addition, pull out the crank ninety degrees to set torque.
  • Therefore, its exceptional durability makes it ideal for industrial applications.
  • Tolerance of torque +/- 4%.
  • Four torque sizes (Nm, kgf.m, lbf.in, lbf.ft) for easy scale reading.

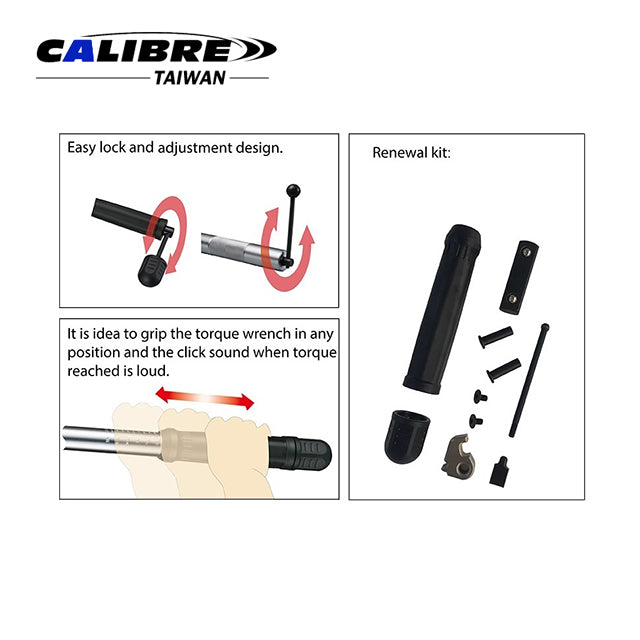

  • Additionally, its push-through mechanism simplifies repairs.
  • Loud click sound when required torque is reached.
  • Moreover, its length-independent mechanism ensures accurate torque.
  • Consequently, its quality strictly meets DIN ISO 6789 and ASMEB107.14M-2004 standards.

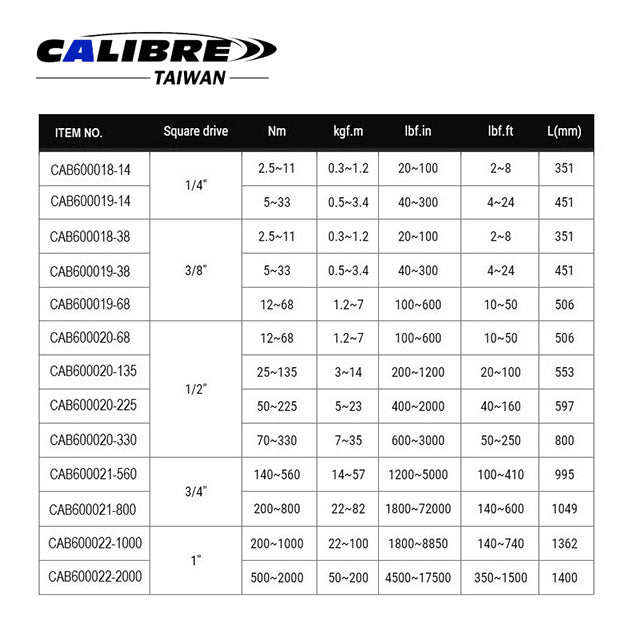

Specifications:

  • CAB600018-14: 1/4"Dr., 2.5-11Nm, 0.3~1.2 kgf.m, 20~100 lbf.in, 2~8 lbf.ft
  • CAB600018-38: 3/8"Dr., 2.5~11Nm, 0.3~1.2 kgf.m, 20~100 lbf.in, 2~8 lbf.ft
  • CAB600019-14: 1/4"Dr., 5~33Nm, 0.5~3.4 kgf.m, 40~300 lbf.in, 4~24 lbf.ft
  • CAB600019-38: 3/8"Dr., 5~33Nm, 0.5~3.4 kgf.m, 40~300 lbf.in, 4~24 lbf.ft
  • CAB600019-68: 3/8"Dr., 12~68Nm, 1.2~7 kgf.m, 100~600 lbf.in, 10~50 lbf.ft
  • CAB600020-68: 1/2"Dr., 12~68Nm, 1.2~7 kgf.m, 100~600 lbf.in, 10~50 lbf.ft
  • CAB600020-135: 1/2"Dr., 25~135Nm, 3~14 kgf.m, 200~1200 lbf.in, 20~100 lbf.ft
  • CAB600020-225: 1/2"Dr., 50~225Nm, 5~23 kgf.m, 400~2000 lbf.in, 40~160 lbf.ft
  • CAB600020-330: 1/2"Dr., 70~330Nm, 7~35 kgf.m, 600~3000 lbf.in, 50~250 lbf.ft
  • CAB600021-560: 3/4"Dr., 140~560Nm, 14~57 kgf.m, 1200~5000 lbf.in, 100~410 lbf.ft
  • CAB600021-800: 3/4"Dr., 200~810Nm, 22~82 kgf.m, 1800~72000 lbf.in, 140~600 lbf.ft
  • CAB600022-1000: 1"Dr., 200~1000Nm, 22~100 kgf.m, 1800~8850 lbf.in, 140~740 lbf.ft
  • CAB600022-2000: 1"Dr., 500~2000Nm, 50~200 kgf.m, 4500~17500 lbf.in, 350~1500 lbf.ft
Packaging:
  • 1pc/Blow Mould Case
  • CAB600018-14: 24pc/20.4/21.33kgs/1.62'
  • CAB600018-38: 24pc/20.4/21.33kgs/1.62'
  • CAB600019-14: 12pc/12.6/13.35kgs/1.37'
  • CAB600019-38: 12pc/12.6/13.35kgs/1.37'
  • CAB600019-68: 12pc/17.76/18.86kgs/1.86'
  • CAB600020-68: 12pc/18/19.12kgs/1.86'
  • CAB600020-135: 12pc/22.32/23.41kgs/1.86'
  • CAB600020-225: 12pc/24/25.13kgs/1.86'
  • CAB600020-330: 6pc/20.58/21.59kgs/1.64'
  • CAB600021-560: 2pc/17.1/18.49kgs/1.76'
  • CAB600021-800: 2pc/17.52/18.91kgs/1.76'
  • CAB600022-1000: 1pc/14.8/15.9kgs/1.7
  • CAB600022-2000:1pc/ctn
