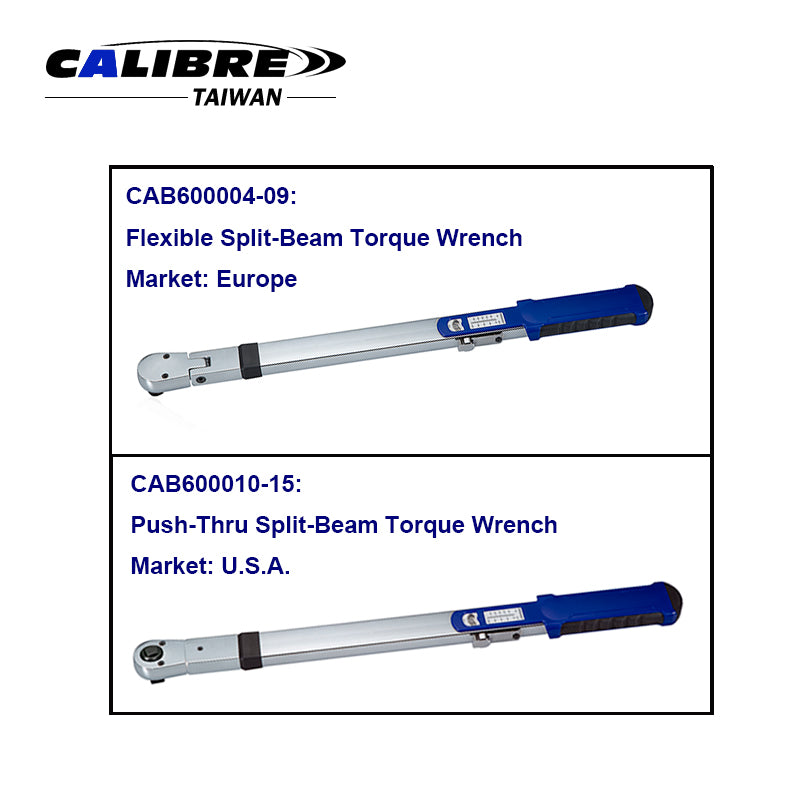

CAB600010-15 - CALIBRE Push-Thru Split-Beam Torque Wrench

CAB600010-15 - CALIBRE Push-Thru Split-Beam Torque Wrench

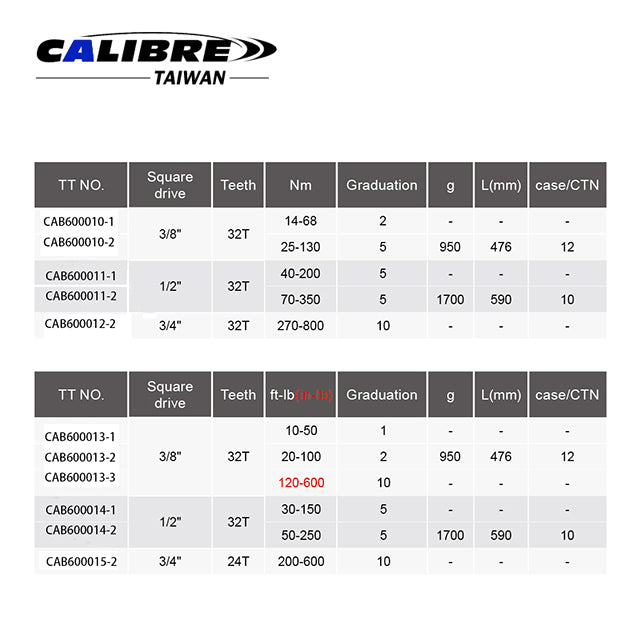

Size:
  • CAB600010-1: 3/8" push thru Dr. Torque Wrench, 32T, 14~68Nm
  • CAB600010-2: 3/8" push thru Dr. Torque Wrench, 32T, 25~130Nm
  • CAB600011-1: 1/2" push thru Dr. Torque Wrench, 32T, 40~200Nm
  • CAB600011-2: 1/2" push thru Dr. Torque Wrench, 32T, 70~350Nm
  • CAB600012-2: 3/4" push thru Dr. Torque Wrench, 24T, 270~800Nm
  • CAB600013-1: 3/8" push thru Dr. Torque Wrench, 32T, 10~50 ft-lb
  • CAB600013-2: 3/8" push thru Dr. Torque Wrench, 32T, 20~100 ft-lb
  • CAB600013-3: 3/8" push thru Dr. Torque Wrench, 32T, 120~600 in-lb
  • CAB600014-1: 1/2" push thru Dr. Torque Wrench, 32T, 30~150 ft-lb
  • CAB600014-2: 1/2" push thru Dr. Torque Wrench, 32T, 50~250 ft-lb
  • CAB600015-2: 3/4" push thru Dr. Torque Wrench, 24T, 200~600 ft-lb
Material:
  • Matt Finished
Feature:
  • Torque of tolerance +-4%.
  • Non coil-spring mechanism and no need to return to zero after use, which brings longer tool life.
  • Knob-type torque adjustment is faster and more energy-efficient.
  • Toothed guard contains the lock function, which can prevent setting from being changed accidentally.
  • Torque setting can be easily read through the window scale.
  • The conversion table to Nm displayed on the handle.
  • TPR cushion handle provides comfort, easy control and oil-resistance.
  • Torque measurement in a clockwise direction only with 15-degree flex head.
  • Loud click sound strong impulse when torque is reached.
  • Applied to both clockwise & counterclockwise directions for tightening.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Specification:
  • Ratchet head: A highly robust ratchet mechanism. Repair kit for inner spare parts of ratchet head is available. With Push-Thru drive allows CW/CCW directions for tightening.
  • Reliable mechanism: Non coil-spring mechanism and no need to return to zero after use, which brings longer tool life.
  • Hinge cover: Toothed guard contains the lock function, which can prevent setting from being changed accidentally.
  • The window scale: The conversion table to Nm displayed on the handle. The main reading window scale for single unit.
  • Grip handle: TPR cushion handle provides comfort, easy control and oil-resistance.
Packaging:
  • 1pc/Blow Mould Case
  • CAB600010-1: Be advise
  • CAB600010-2: 12pc/15.36/16.18kgs/1.37'
  • CAB600011-1: Be advise
  • CAB600011-2: 10pc/21.30/22.14kgs/1.54'
  • CAB600012-2: Be advise
  • CAB600013-1: Be advise
  • CAB600013-2: 12pc/15.36/16.18kgs/1.37'
  • CAB600013-3: Be advise
  • CAB600014-1: Be advise
  • CAB600014-2: 10pc/21.30/22.14kgs/1.54'
  • CAB600015-2: Be advise
