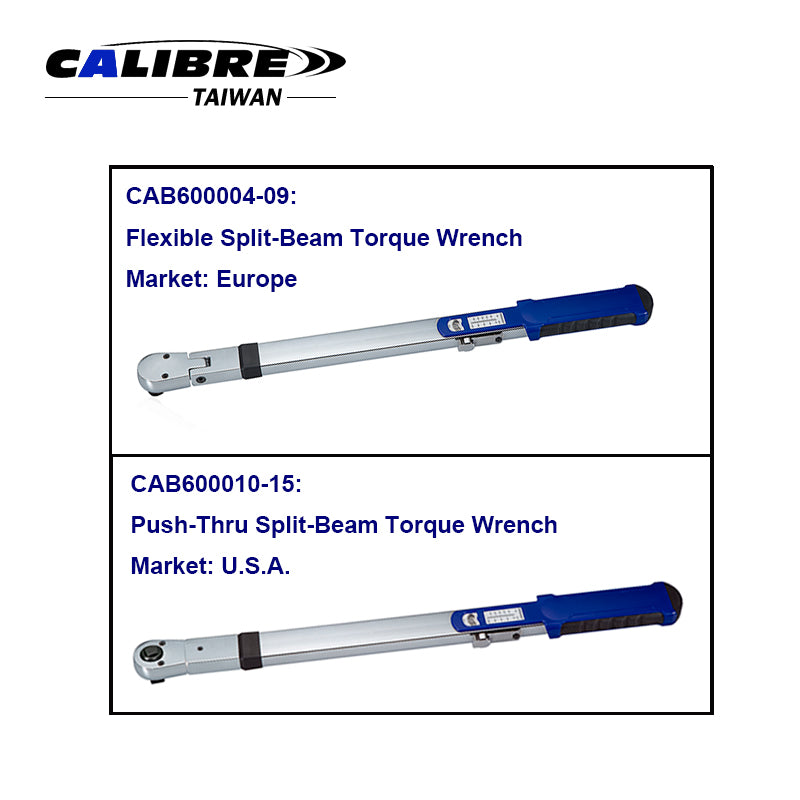

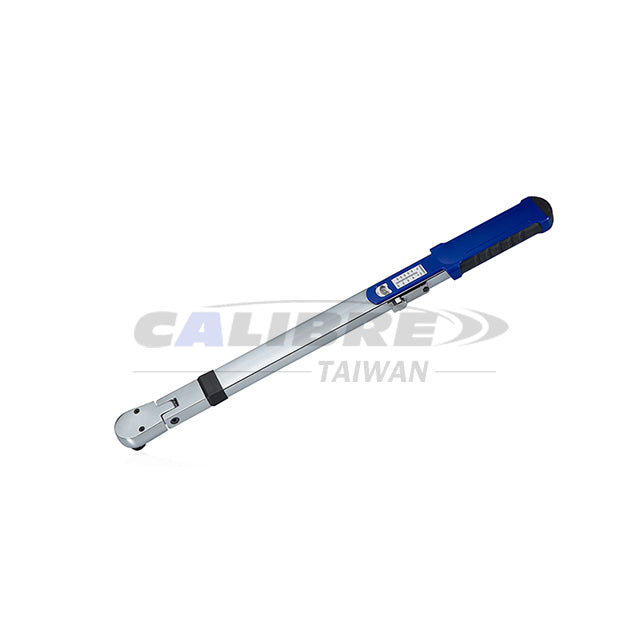

CAB600004-09 - CALIBRE Flexible Split-Beam Torque Wrench

CAB600004-09 - CALIBRE Flexible Split-Beam Torque Wrench

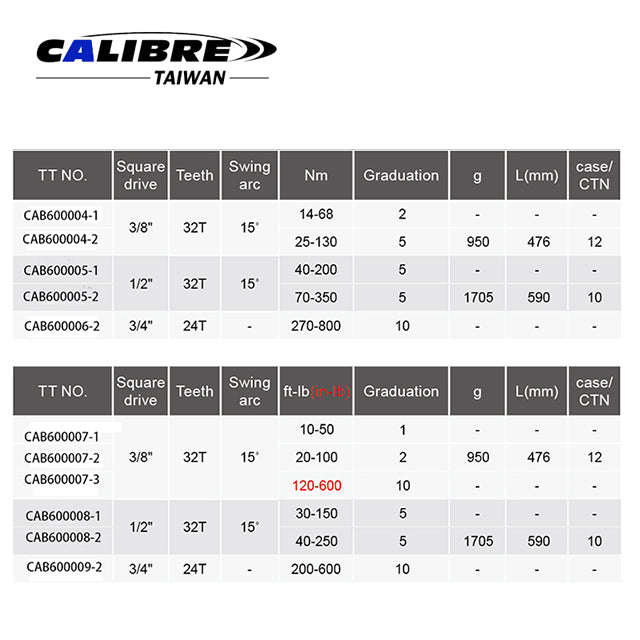

Size:
  • CAB600004-1 3/8" Dr. Torque Wrench, 32T, 14~68 Nm, Swing arc 15°
  • CAB600004-2 3/8" Dr. Torque Wrench, 32T, 25~130Nm, Swing arc 15°
  • CAB600005-1 1/2" Dr. Torque Wrench, 32T, 40~200Nm, Swing arc 15°
  • CAB600005-2 1/2" Dr. Torque Wrench, 32T, 70~350Nm, Swing arc 15°
  • CAB600006-2 3/4 Dr. Torque Wrench, 32T, 270~800Nm, Fixed push-thru head
  • CAB600007-1 3/8" Dr. Torque Wrench, 32T, 10~50ft-lb, Swing arc 15°
  • CAB600007-2 3/8" Dr. Torque Wrench, 32T, 20~100ft-lb, Swing arc 15°
  • CAB600007-3 3/8" Dr. Torque Wrench, 32T, 120~600 in-lb, Swing arc 15°
  • CAB600008-1 1/2" Dr. Torque Wrench, 32T, 30~150ft-lb, Swing arc 15°
  • CAB600008-2 1/2" Dr. Torque Wrench, 32T, 40~250ft-lb, Swing arc 15°
  • CAB600009-2 3/4 Dr. Torque Wrench, 32T, 200~600ftlb, Fixed push-thru head
Material:
  • Polished Finished
Feature:
  • Torque of tolerance: unflexed +-4%; flexed +-4~+-10%.
  • Non coil-spring mechanism and no need to return to zero after use.
  • Knob-type torque adjustment is faster and more energy-efficient.
  • Toothed guard contains the lock function, which can prevent setting from being changed accidentally.
  • Torque setting can be easily read through the window scale.
  • The conversion table to Nm displayed on the handle.
  • TPR cushion handle provides comfort, easy control and oil-resistance.
  • Torque measurement in a clockwise direction only with 15-degree flex head.
  • Loud click sound strong impulse when torque is reached.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Specification:

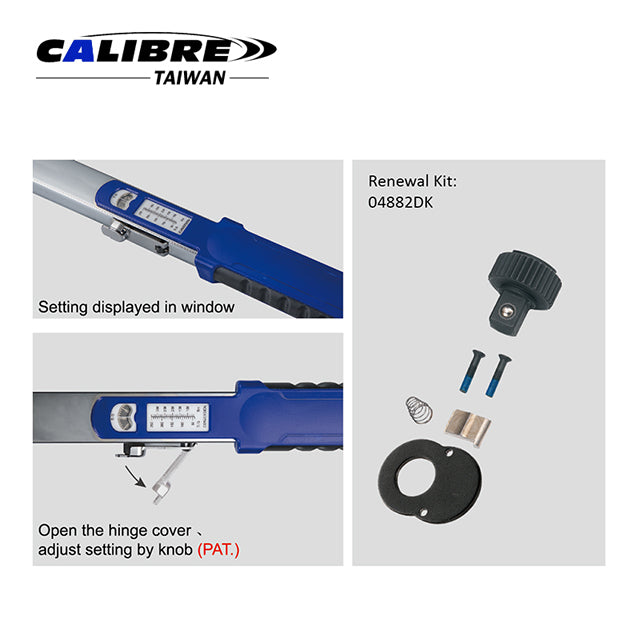

  • Ratchet head: A highly robust ratchet mechanism. Repair kit for inner spare parts of ratchet head is available.

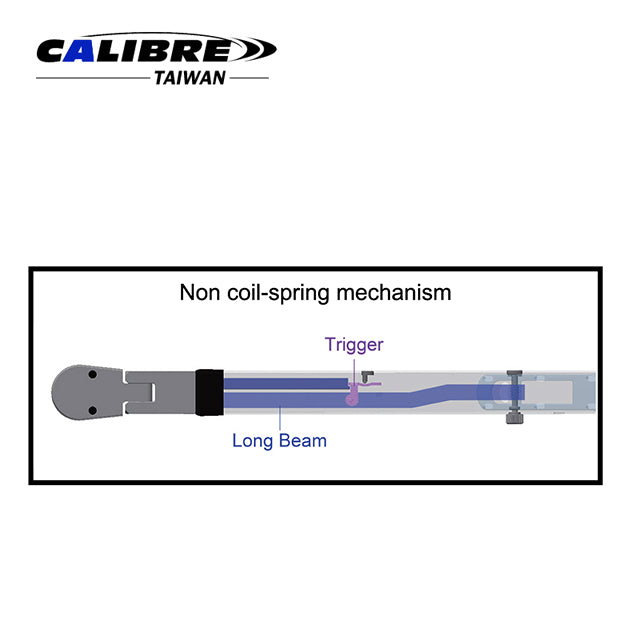

  • Reliable mechanism: Non coil-spring mechanism and no need to return to zero after use, which brings longer tool life.
  • Hinge cover: Toothed guard contains the lock function, which can prevent setting from being changed accidentally.
  • The window scale: The conversion table to Nm displayed on the handle. The main reading window scale for single unit.
  • Grip handle: TPR cushion handle provides comfort, easy control and oil-resistance.
Packaging:
  • 1pc/Blow Mould Case
  • CAB600004-1: Be advise
  • CAB600004-2: 12pc/15.36/16.18kgs/1.37'
  • CAB600005-1: Be advise
  • CAB600005-2: 10pc/21.30/22.14kgs/1.54'
  • CAB600006-2: Be advise
  • CAB600007-1: Be advise
  • CAB600007-2: 12pc/15.36/16.18kgs/1.37'
  • CAB600007-3: Be advise
  • CAB600008-1: Be advise
  • CAB600008-2: 10pc/21.30/22.14kgs/1.54'
  • CAB600009-2: Be advise
