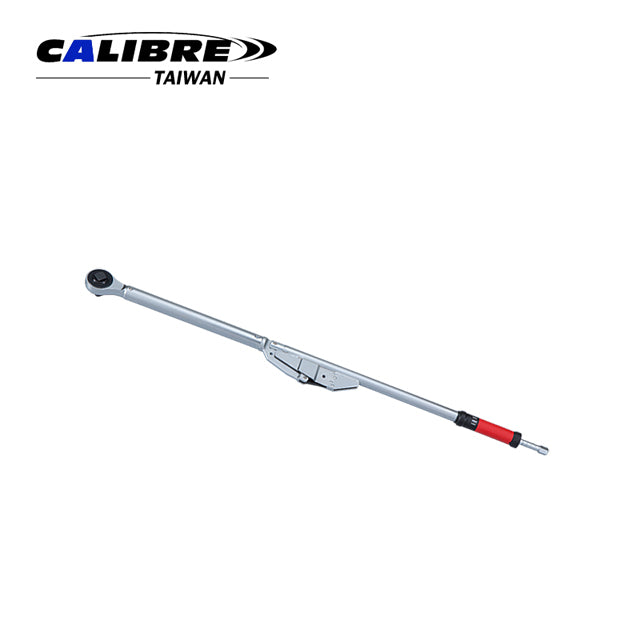

CAB600003 TAIWAN CALIBRE Breakback Torque Wrench

CAB600003 TAIWAN CALIBRE Breakback Torque Wrench

Size
Torque Range

Manual

Size:

CAB600003-34-1:  3/4" Dr. 36T, 120~600Nm/ 100~450ft-lb, +/-4%
CAB600003-34-2: 3/4" Dr. 36T, 200~800Nm/ 150~600ft-lb, +/-4%
CAB600003-34-3:

3/4" Dr. 36T, 300~1000Nm/ 200~750ft-lb, +/-4%
CAB600003-1-1: 1" Dr. 36T, 120~600Nm/ 100~450ft-lb, +/-4%
CAB600003-1-2:

1" Dr. 36T, 200~800Nm/ 150~600ft-lb, +/-4%
CAB600003-1-3:

1" Dr. 36T, 300~1000Nm/ 200~750ft-lb, +/-4%

Material:

  • Mat Finished

Feature:

  • Industrial application with durability. Ideal for heavy duty area.
  • Push-through ratchet allows two directions tightening.
  • Torque measurement in clockwise direction only.
  • Unique linking plate and support plate design gives very clear "torque break point", which reduces the possibility of over torque, even in arduous working conditions.
  • Easily readable dual scale N-m and Ft-lb below a window.
  • Ergonomically shaped and comfort plastic handle grip.
  • Can be split and packed in two parts for a smaller, easier to transport package.
  • Tolerance of torque ±4%.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.

Specification:

  • Round head: A highly robust ratchet mechanism with inner 4 pawls mechanism design to bear large output value, without plate and screws to avoid losing while operation. Push-through square drive.

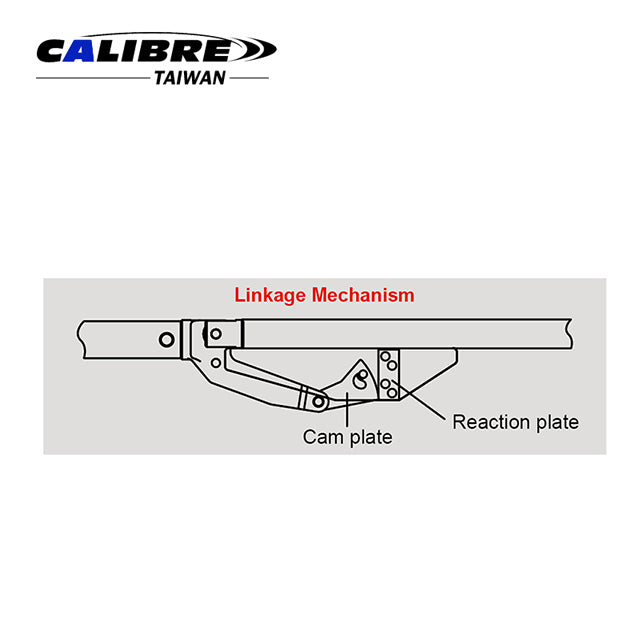

  • Reliable mechanism: The unique linking plate and support plate design gives very clear "torque break point", which reduces the possibility of over torqueing, even in arduous working conditions.
  • Serial number: Each piece stamping serial number for Traceability.
  • Scales: Dual scale window type; easy readable for two different units.
  • NBR handle: Ergonomic shape with non-slip and comfortable features.

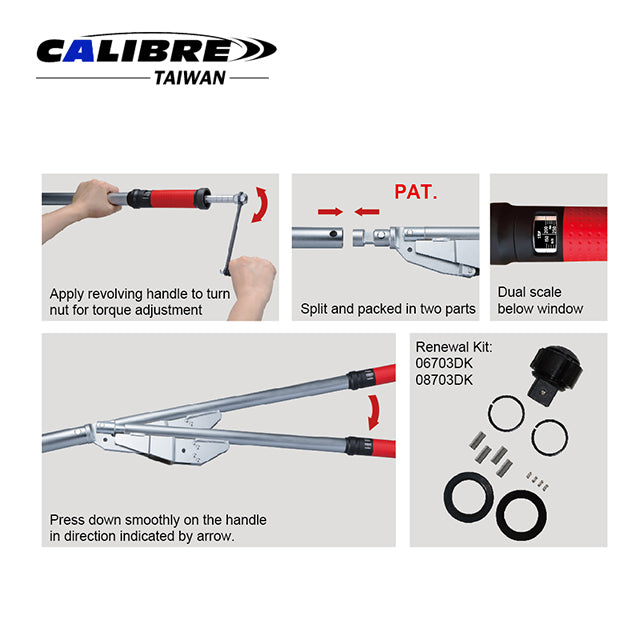

  • Adjustment system: Apply revolving handle to turn nut for torque adjustment.
Packaging:

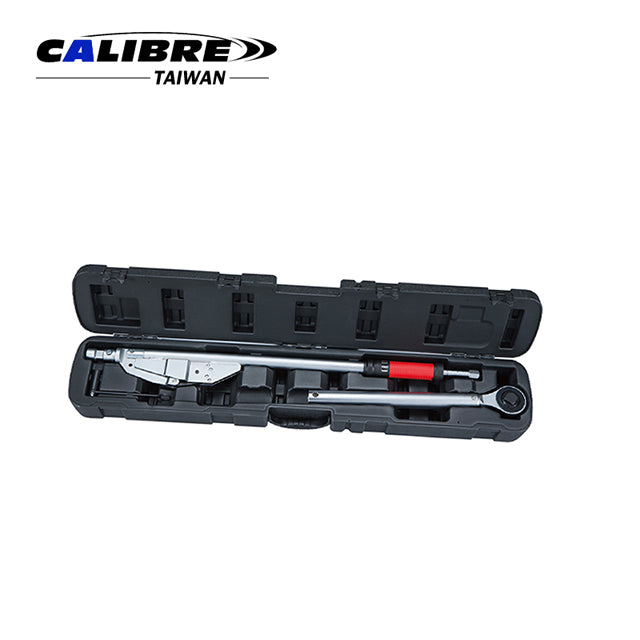

  • 1pc/Blow Mould Case
  • CAB600003-34-1: 1pc/8.25/8.90kgs/0.89'
  • CAB600003-34-2: 1pc/9.55/10.2kgs/0.89'
  • CAB600003-34-3: 1pc/9.71/10.36kgs/0.89'
  • CAB600003-1-1: 1pc/9.55/10.2kgs/0.89'
  • CAB600003-1-2: 1pc/9.55/10.2kgs/0.89'
  • CAB600003-1-3: 1pc/9.55/10.2kgs/0.89'
