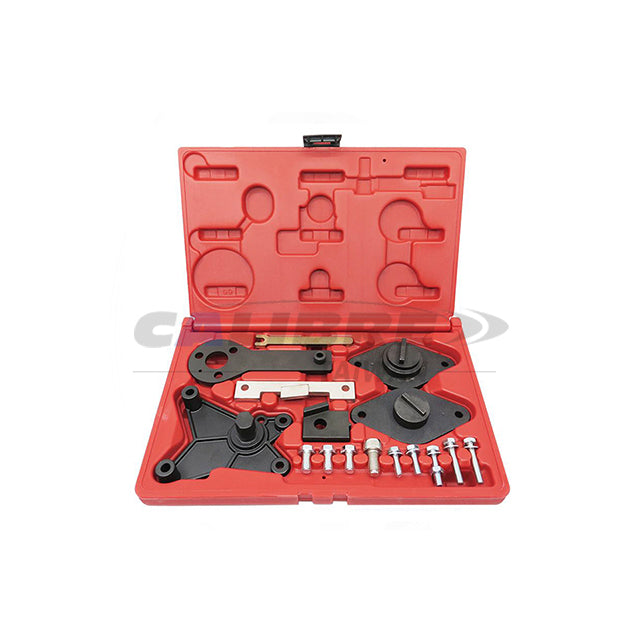

CAB0220 TAIWAN CALIBRE Engine Timing Kit for 1.2, 1.4 8v Belt Drive (Fiat, Ford, Lancia)

CAB0220 TAIWAN CALIBRE Engine Timing Kit for 1.2, 1.4 8v Belt Drive (Fiat, Ford, Lancia)

Cam locking tool

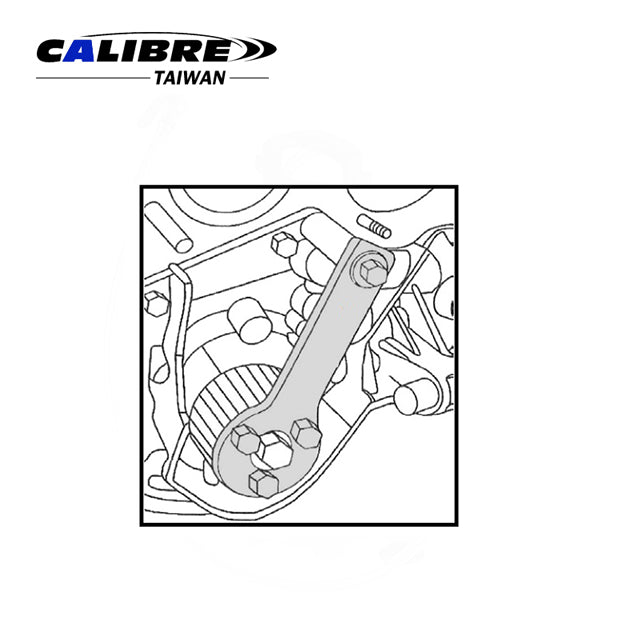

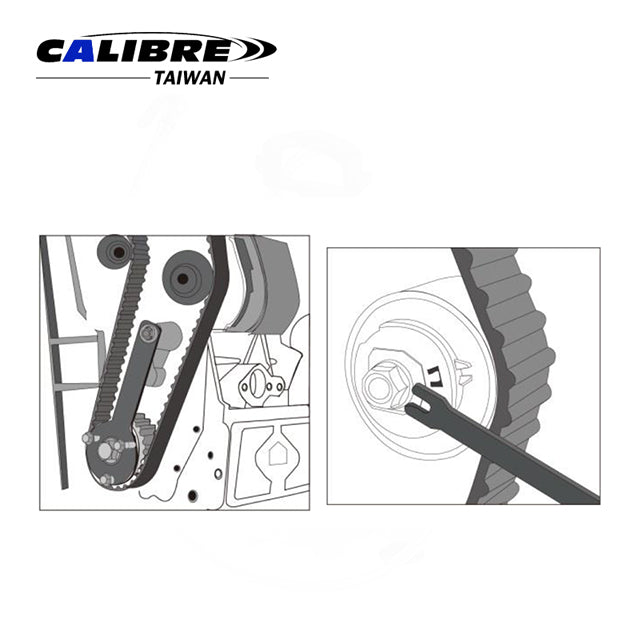

Cam locking tool instructions: Use this engine timing kit to replace belts on 1.2 and 1.4L belt-driven Fiat, Ford, or Lancia engines. Position the camshaft locking plate to lock the camshaft safely in place. Utilize the sprocket locking tool and tensioner adjuster to hold timing points aligned during belt removal and installation. Reassemble and verify timing alignment before starting the engine.

Feature:

  • To remove & install belt for 1.2, 1.4 engine.
  • Including camshaft & tensioned adjuster, and sprocket locking tool.

Application:

  • Fiat: 500 (07-12), Doblo/Cargo (05-10)/Grande Punto (07-12)/Idea (04-12), Linea (07-11), Panda EVO2 (05-11), Punto EVO (09-12)
  • Ford: Ka (09-12) Lancia: Ypsilon (06-11), Musa (05-12)

Engine code:

  • Fiat: 1.2/1.2 Dualogic 169A4.000, 188A4.000 (EVO2 only), 199A4.000 1.4/1.4 Bi - fuel LPG/1.4 Natural Power CNG 199A7.000, 350A1.000
  • Ford: 1.2 Duratec 169A4.000 (FP4) Lancia: 1.4/1.4 Bi - fuel LPG 350A1.000
Packaging:
  • 1Set/Blow Mould Case
  • 10Set/19.94/20.94kgs/1.1'
