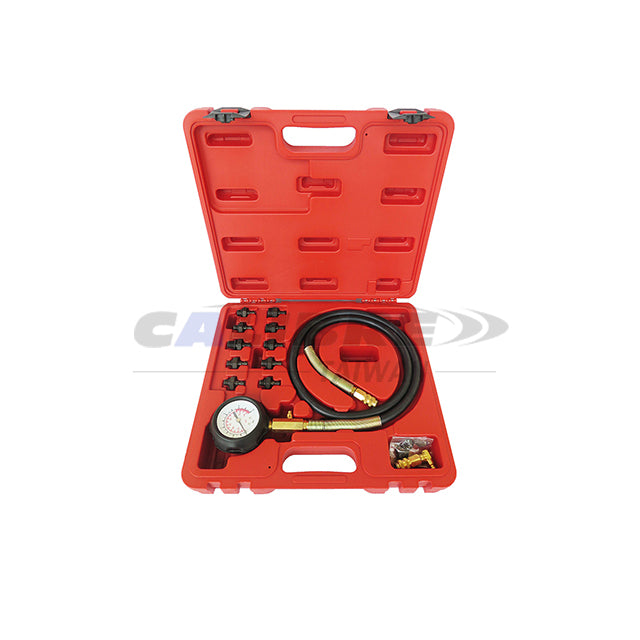

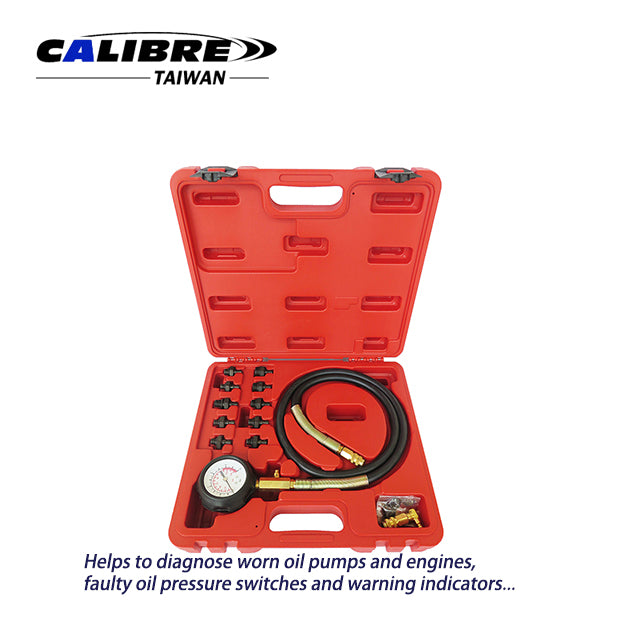

CAB0201 CALIBRE Oil Pressure Tester Set

CAB0201 CALIBRE Oil Pressure Tester Set

Fuel injection test helps diagnose worn oil pumps, engines, and faulty oil pressure switches. It accurately tests oil pump pressure and warning indicators using a large dual-scaled gauge. The Fuel injection test features quick coupling adapters with a shut-off valve for secure and efficient use. A long, flexible, permanently oil-primed hose ensures durability and ease of operation.
Feature:
  • Helps to diagnose worn oil pumps and engines, faulty oil pressure switches and warning indicators...
  • Easy to use.
  • Accurately tests oil pumps pressure, switch & warning indicators.
  • Large clear dual scaled gauge.
  • Quick coupling adapters, with shut-off valve, for speed & security.
  • Permanently oil primed, long, flexible hose.
Contents:
  • Gauge assembly:
    Overall length   Gauge diameter    Scale
    A    1300MM      80 MM                  0-10 BAR
  • Adapters: Thread
    01              R1/8 DIN 2999
    02             1/8 * 27 NPT
    03             1/4 * 18 NPT
    04             3/8 * 20 UNF
    05             1/2 * 20 UNF
    06             M10 * 10
    07             M12 * 1.5
    08             M14 * 1.5
    09             M16 * 1.5
    10             M18 * 1.5
    B              90° ELBOW
Packaging:
  • 1Set/Blow Mould Case
  • 6Set/11.8/12.8kgs/2.6'
