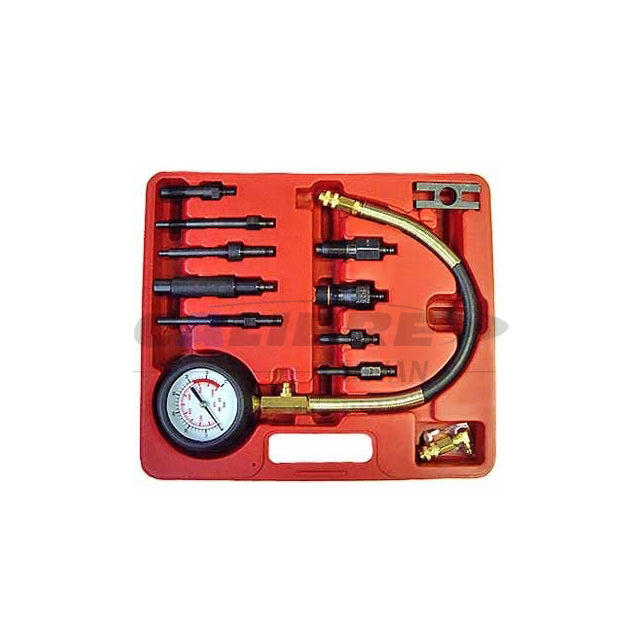

CAB0124 TAIWAN CALIBRE 12pc Diesel Engine Compression Tester Set (Cars)
CAB0124 TAIWAN CALIBRE 12pc Diesel Engine Compression Tester Set (Cars)
Engine compression tests
Engine compression tests: Use this test set for direct or indirect engines. Select the correct glow plug adapter or dummy injector, connect to the gauge with 90° elbow if needed, then crank engine to read pressure. Replace seals as needed.
Feature:
- Diesel engine compression test set for Direct and Indi-rect engines
- Dual scale gauge
- Glow plug adaptors - M10x1.0 / M10x1.25 /M12x1.25 / M14x1.25
- Dummy injectors - M20x1.5 / M24x2.0
- Stanadyne dummy
- Replacement seal and washer set
- 90 Degree elbow
- Clamp plate

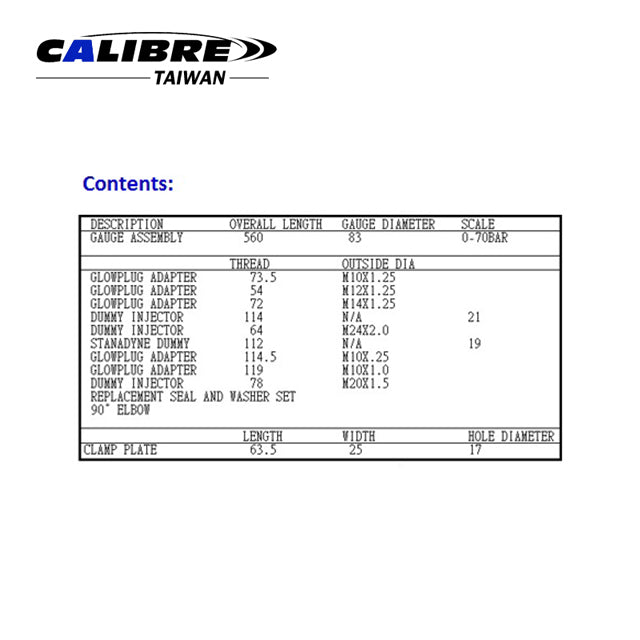

Contents:
- A: Glowplug assembly 560mmL; 83mmd; 0-70 Bar
- B: Glowplug adapter 73.5mmL; M10 X 1.25
- C: Glowplug adapter 54mmL; M12 X 1.25
- D: Glowplug adapter 72mmL; M14 X 1.25
- E: Dummy injector 114mmL; 21mmd (Outside)
- F: Dummy injector 64mmL; M24 X 2.0
- G: Stanadyne dummy 112mmL; 19mmd (Outside)
- H: Glowplug adapter 114.5mmL; M10 X 1.25
- I: Glowplug adapter 119mmL; M10 X 1.0
- J: Dummy injector 75mmL; M20 X 1.5
- K: Replacement seal and washer set
- L: 90° Elbow
- M: Clamp plate 63.5mmL x 25mmw x 17mmd (Hole)

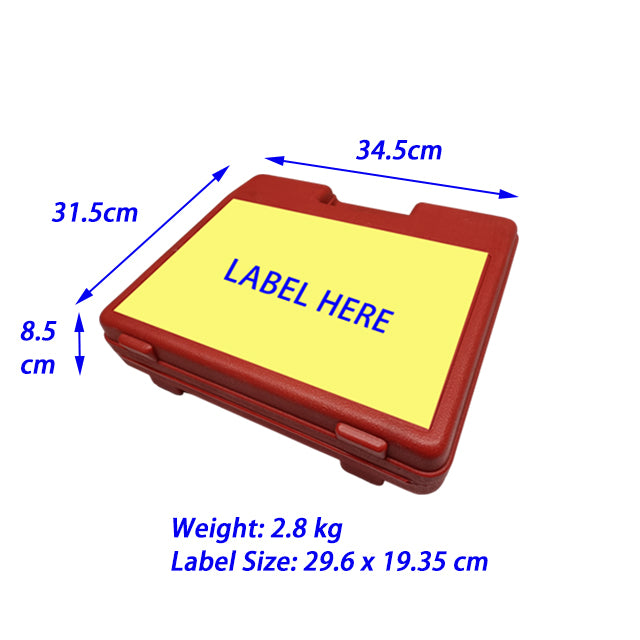

Packaging:
- 1Set/Blow Mould Case
- 6Set/12/13kgs/2'
