Projen Taiwan

CAB0115 TAIWAN CALIBRE Diesel Injector Seat Cutter Set

CAB0115 TAIWAN CALIBRE Diesel Injector Seat Cutter Set

Fuel injectors service

Fuel injectors service using CAB0115 begins when you detect blow-by. First, carefully remove the injectors. Next, assemble the correct reamer onto the pilot post. Subsequently, place it into the recess. Meanwhile, add light lubricant. Then, gently rotate the T-handle clockwise. However, do not over-cut the seat. Finally, thoroughly clean away all remaining swarf.

Feature:

  • Identify injector ”Blow-By” exists.
  • Gain access to the injectors and remove them.
  • Select required reamer onto pilot post and thigh the internal hex screw.
  • Place assembled cutter into injector recess.
  • Using the T-bar and Socket supplied apply only a small amount of pressure while the cutter in a clockwise direction only.
  • Use a small amount of light lubricant whilst performing the cut to reduce cha and help give a flat cut.
  • Do not over cut the seat only remove enough metal to form a good seat.
  • Thoroughly clean the seat and remove all swarf.

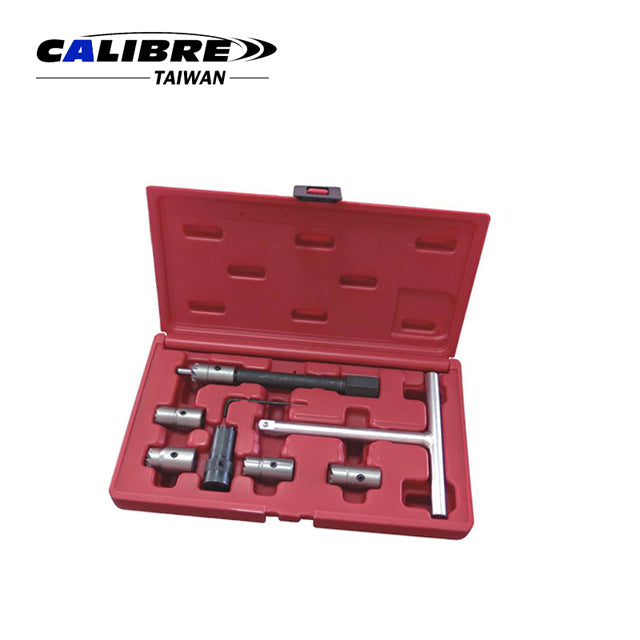

Contents:

  • Φ19mm * Φ15mm Flat Reamer For Universal Injector.
  • Φ17mm * Φ17mm Angled Reamer For FAIT/IVECO and FORD.
  • Φ17mm * Φ17mm Flat Reamer For DELPHI/BOSCH  Injectors (BMW/PSA/RENAULT/FORD)
  • Φ19mm * Φ17mm Flat Reamer For BOSCH Injectors (MERCEDES CDI)
  • Φ21mm * Φ17mm Angled Reamer For FIAT/IVECO.
  • Φ19mm * Φ50mm Injector Cleaner Reamer.
  • T Handle*1
  • Pilot Post*1
Packaging:
  • 1Set/Blow Mould Case
  • 20Set/20.3/21.3kgs/2.1'
