Projen Taiwan

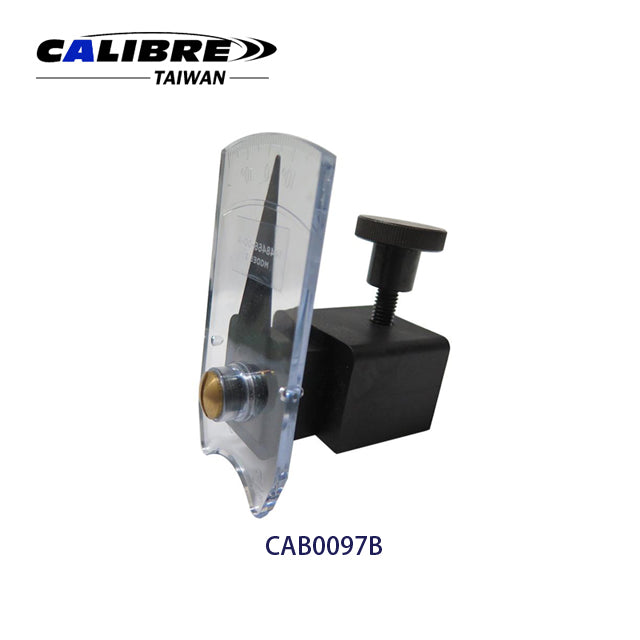

CAB0097A&B TAIWAN CALIBRE Wiper Angle Adjustment Tool for TESLA

CAB0097A&B TAIWAN CALIBRE Wiper Angle Adjustment Tool for TESLA

Model

Window wiper arm removal tool

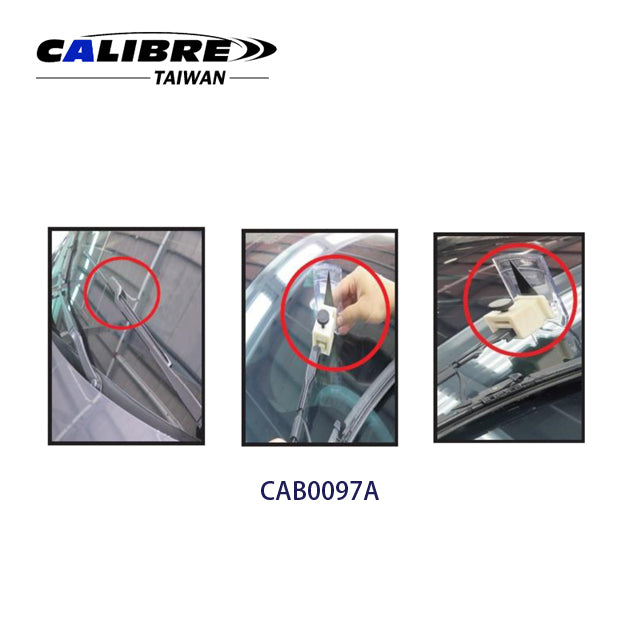

Window wiper arm removal tool instructions: Fix the CAB0097 TAIWAN CALIBRE adjustment tool onto the front of the Tesla wiper arm. Attach a 24mm open-ended wrench to the tool to check and adjust the angle between the arm and the windshield within a range of plus or minus 20 degrees. Ensure the driver side reads 1.5 degrees and the passenger side reads 1.7 degrees.


Size:

  • Using range: ± 20°

Feature:

  • To check & adjust angle between windshield wiper arm and windshield.
  • Fixed adjustment tool at the front of the wiper arm, adjusting angle with open-ended wrench (24mm) to suitable angle.

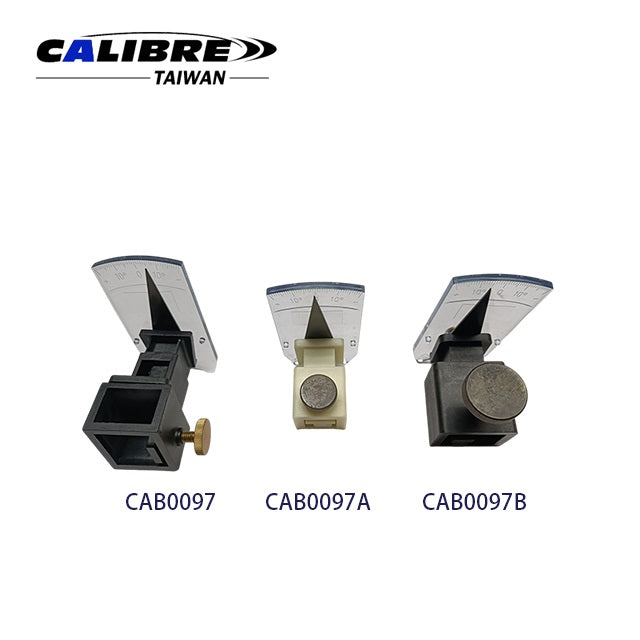

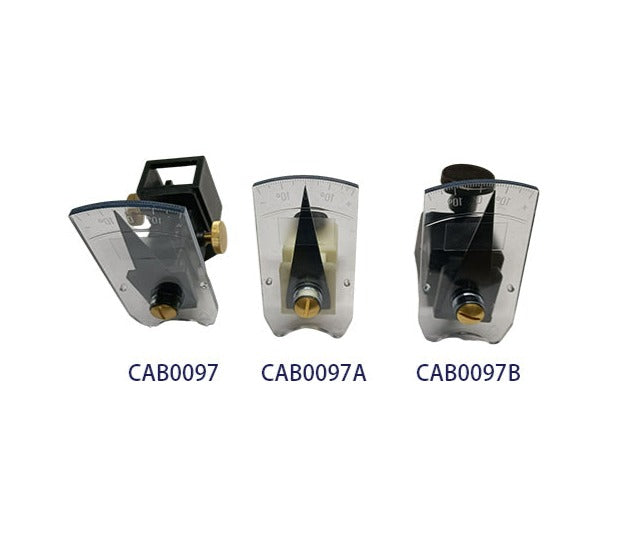

Application:

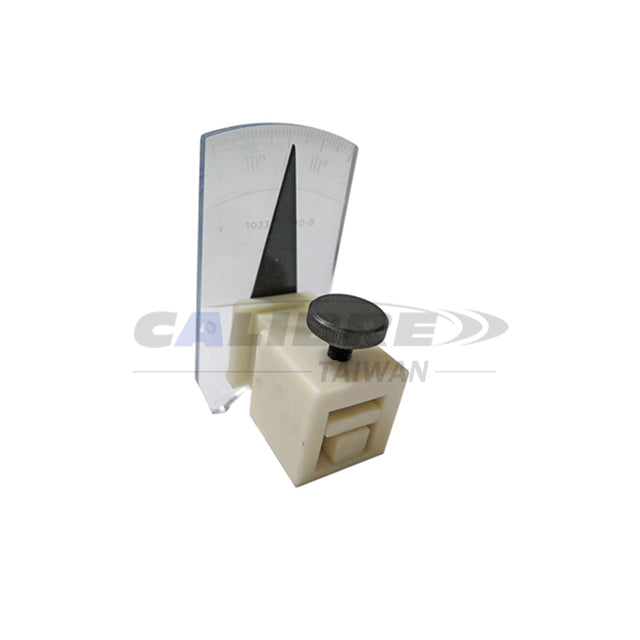

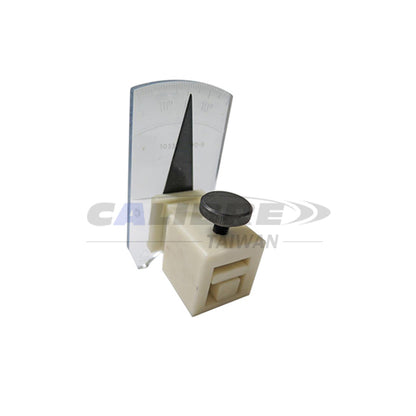

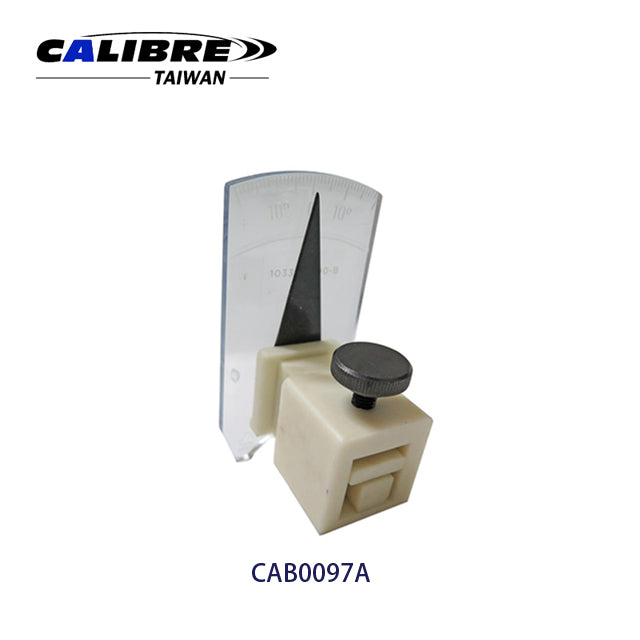

  • CAB0097A: Befitting for TESLA model X & S.
  • CAB0097B: Befitting for TESLA model 3.

Suitable Specification of Arm:

  • LHD & RHD Vehicle, Driver's Side: 1.5 Degrees +/- 3 Degrees
  • LHD & RHD Vehicle, Passenger's Side: 1.7 Degrees +/- 3 Degrees
Packaging:
  • 1pc/Sliding Card
  • CAB0097A: 6/36pc/7.9/8.9kgs/2.2'
  • CAB0097B: 6/36pc/11.9/12.9kgs/2.5'
