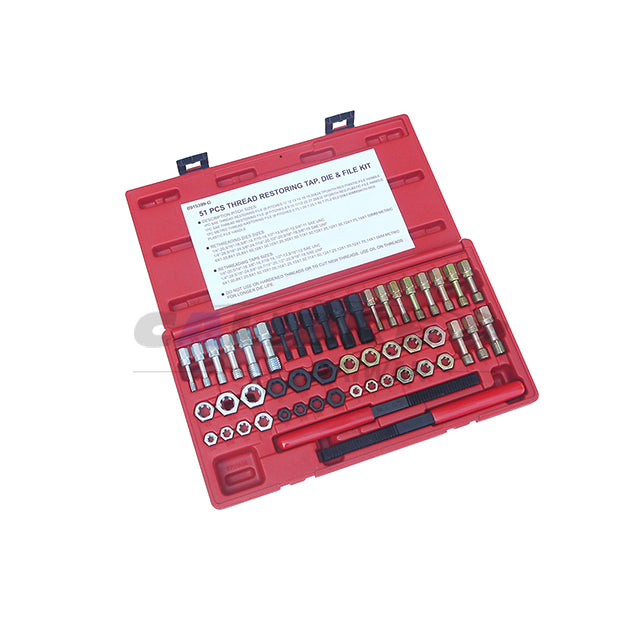

CAB0061G TAIWAN CALIBRE 51pc Thread Restoring Tap, Die & File Kit

CAB0061G TAIWAN CALIBRE 51pc Thread Restoring Tap, Die & File Kit

Thread chaser kit

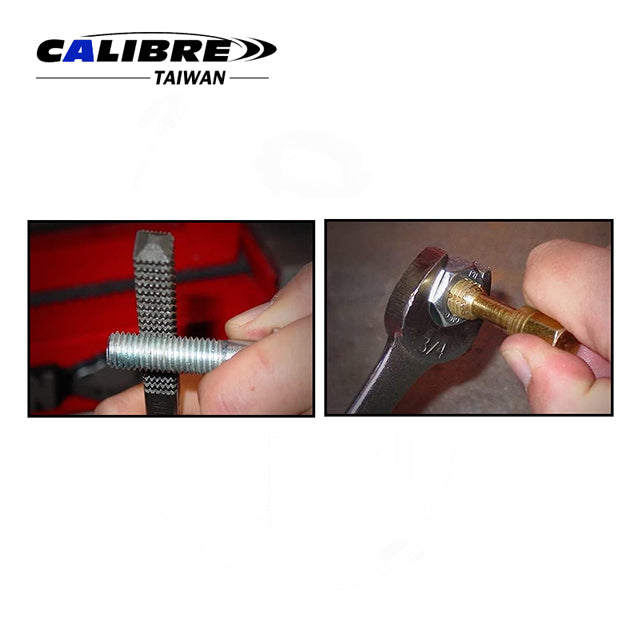

Thread chaser kit restores damaged internal and external threads using files, taps, and dies. Select the correct SAE or metric size, apply oil to the threads, and gently chase the damaged area. Avoid use on hardened threads or for cutting new ones.

Pitch Sizes:

  • 1pc SAE thread restoring file(8 pitches:11.12.13.14.16.18.20&24 tpi)with red plastic file handle
  • 1pc SAE thread restoring file (8 pitches:8.9.10.111/2.20.27.28&32 tpi)with red plastic file handle
  • 1pc metric thread restoring file (8 pitches:0.75,1.00,1.25,1.50,1.75,2.00,2.50&3.00mm)with red plastic file handle

Rethreading Dies Sizes:

  • 1/4”-20,5/16”-18,3/18”-16,7/16-14,1/2”-13,9/16”-12,5/8”-11 USS coarse
  • 1/4”-28,5/16”-24,3/8”-24,7/16”-20,1/2”-20,9/16”-18,5/8”-18 SAE fine
  • 6X1.00,8X1.25,8X1.50,10X1.00,10X1.25,10X1.50,11X1.50,12X1.25,12X1.50,12X1.75,14X1.50mm

Rethreading Taps Sizes:

  • 1/4”-20,5/16”-18,3/18”-16,7/16-14,1/2”-13,9/16”-12 USS coarse
  • 1/4”-28,5/16”-24,3/8”-24,7/16”-20,1/2”-20,9/16”-18 SAE FINE
  • 6X1.00,8X1.25,8X1.50,10X1.00,10X1.25,10X1.50,11X1.50,12X1.25,12X1.50,12X1.75,14X1.5MM

Feature:

  • Do not use on hardened threads or to cut new threads.
  • Use oil on threads for longer die life.
Packaging:
  • 1Set/Blow Mould Case
  • 10Set/21.5/22.5kgs/1.6’
