CAB0027-10 TAIWAN CALIBRE 10pc Screw Extractor Set

CAB0027-10 TAIWAN CALIBRE 10pc Screw Extractor Set

Screw Extractor Set 10pc

Easily remove broken bolts and screws with this chrome molybdenum extractor set. Covers SAE & metric sizes. Ideal for damaged studs, cap screws, and more.

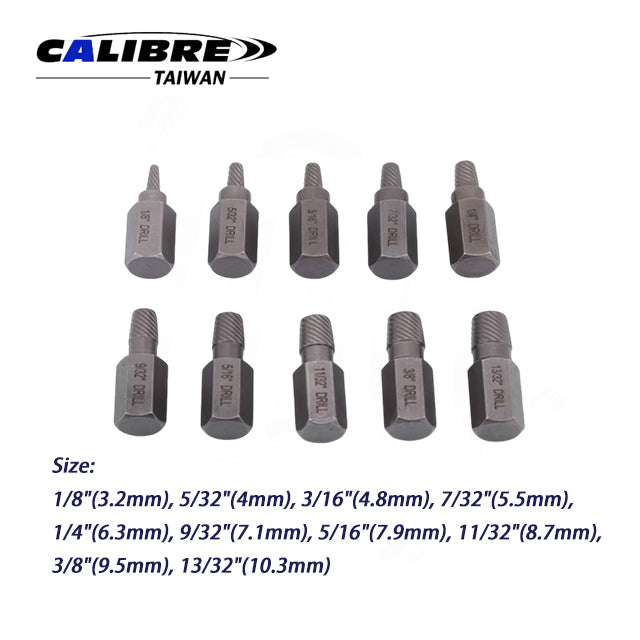

Size:

  • Bolt SAE  Metric
    #12 1/8” 3.2mm
    1/4” 5/32” 4.0mm
    5/16” 3/16” 4.8mm
    3/8” 7/32” 5.5mm
    7/16" 1/4” 6.3mm
    1/2” 9/32” 7.1mm
    9/16” 5/16” 7.9mm
    5/8” 11/32” 8.7mm
    11/16” 3/8” 9.5mm
    3/4” 13/32” 10.3mm

Material:

  • Chrome Molybdenum

Feature:

  • In order to extract broken machine screws, studs, cap screws which strongly damaged.

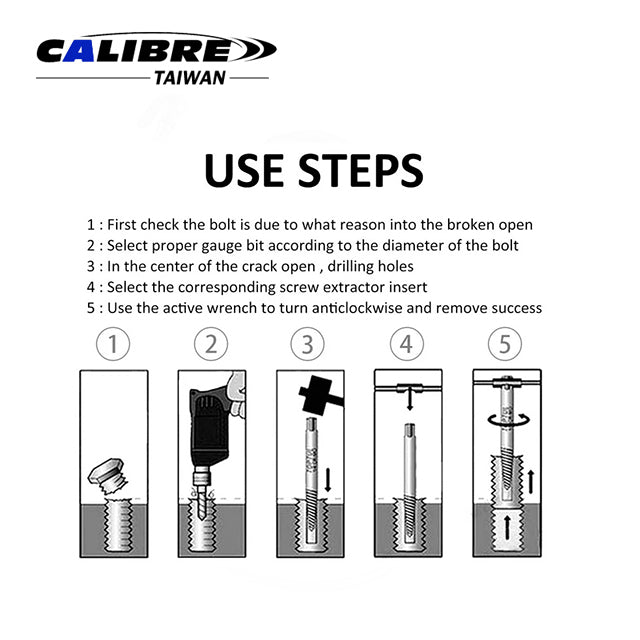

Instruction:

  • Step 1: Center punch broken part.
  • Step 2: Select correct drill size (use chart below).
  • Step 3: Drill hole in center of broken part with recommended size drill.
  • Step 4: Lightly tap extractor into broken fastener.
  • Step 5: Using a socket wrench or open-end wrench, turn the extractor counter-clockwise.
Packaging:
  • 1Set/Blow Mould Case
  • 24Set/11/12kgs/1.1'
