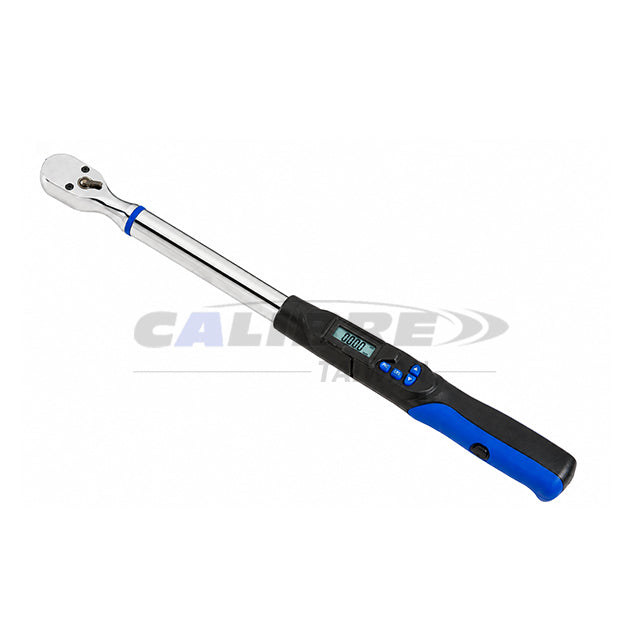

CAA330008 TAIWAN CALIBRE 36T Fixed - Lever Type Digital Torque Wrench

CAA330008 TAIWAN CALIBRE 36T Fixed - Lever Type Digital Torque Wrench

Digital torque tool

Digital torque tool applications include precise fastening with adjustable torque settings from 1.5 to 340 Nm across five models. Select the appropriate drive size, set the target torque and measurement unit, then apply force steadily. Green side LEDs indicate approaching torque, while red LEDs and a buzzer signal when the target is reached. Additionally, the LCD display supports four units, with ±2% clockwise accuracy.

Size:

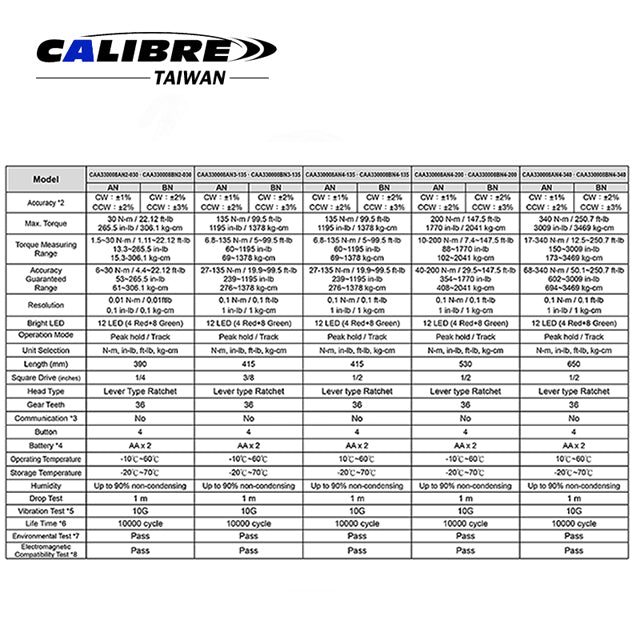

Item No. Drive Size Torque Range Accuracy
CAA330008BN2-030 1/4" Dr. 1.5–30 Nm ±2% (CW)
CAA330008BN3-135 3/8" Dr. 6.8–135 Nm ±2% (CW)
CAA330008BN4-135 1/2" Dr. 6.8–135 Nm ±2% (CW)
CAA330008BN4-200 1/2" Dr. 10–200 Nm ±2% (CW)
CAA330008BN4-340 1/2" Dr. 17–340 Nm ±2% (CW)

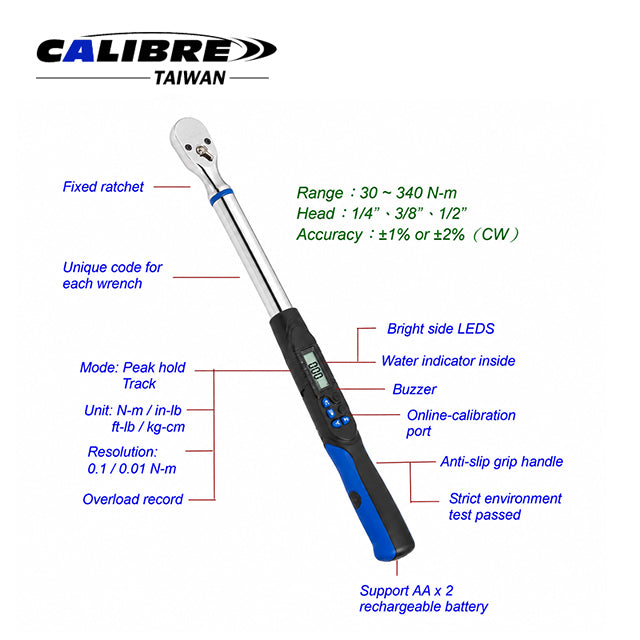

Feature:

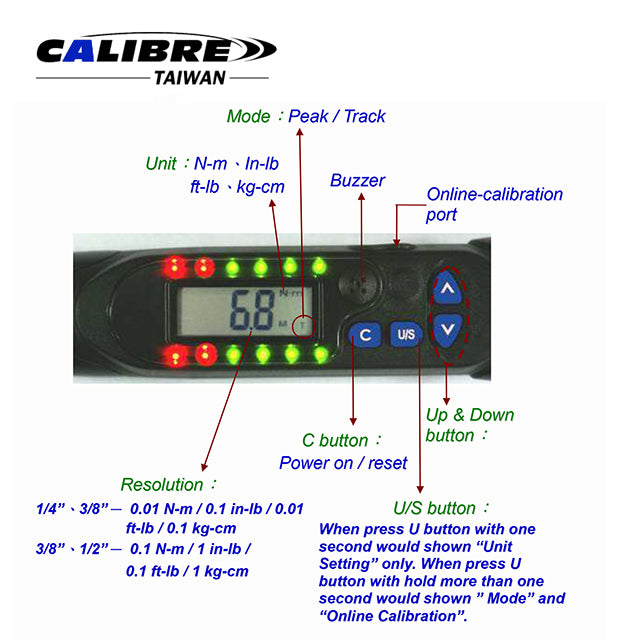

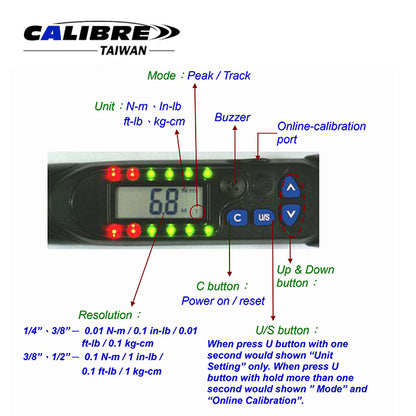

  • Standard functions including torque setting, unit setting, mode setting, and online calibration.
  • Functions in both clockwise and anticlockwise directions.
  • LCD display showing N-m, ft-lb, in-lb. and kg-cm measurements.
  • Audible and visible torque confirmation by means of buzzer and side LED display.
  • Easy set-up per application.

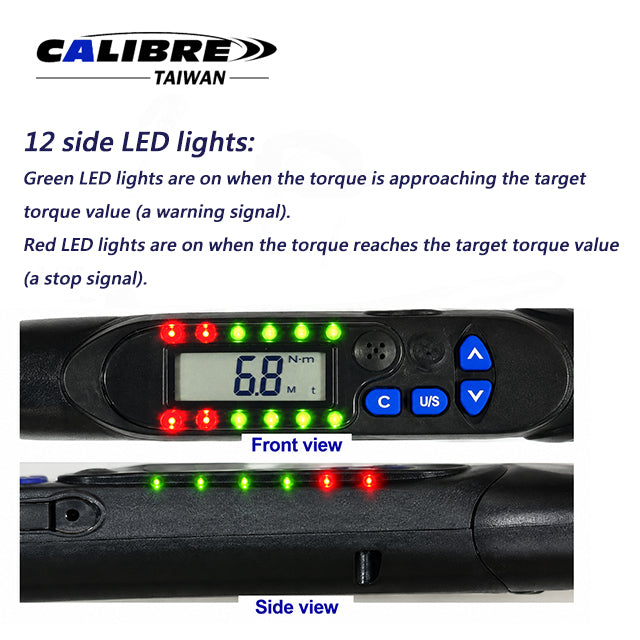

12 side LED lights:

  • Green LED lights are on when the torque is approaching the target torque value (a warning signal).
  • Red LED lights are on when the torque reaches the target torque value (a stop signal).

Advantages:

  • While using and the LCD display is invisible, 6 or 12 LED could side visible to alert user to reading.
  • Additionally, side-view LEDs allow users to monitor torque levels without repeatedly bending over to check the LCD display. As a result, this ergonomic design may help reduce back strain during prolonged use.
  • Can assist in working at small room (Need not move position to check LCD display).
  • Can assist in working at noisy places; when working at noisy places and the buzzer is inaudible, side-view LEDS are very helpful.
Packaging:
  • 1pc/Blow Mould Case
  • CAA330008BN2-030: 6pc/10kgs/0.94'
  • CAA330008BN3-135: 6pc/11kgs/0.94'
  • CAA330008BN4-135: 6pc/12kgs/0.94'
  • CAA330008BN4-200: 6pc/14kgs/1.34'
  • CAA330008BN4-340: 6pc/14kgs/1.34'
