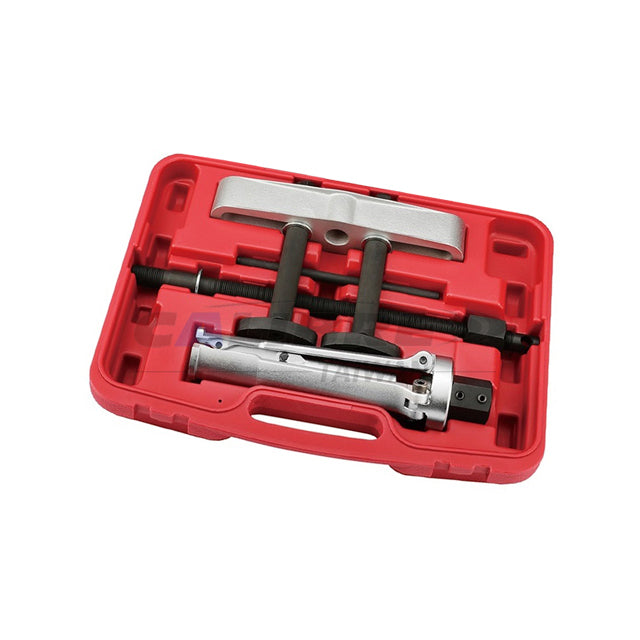

CAA0267 - CALIBRE Cylinder Liner Puller With Support Brace

CAA0267 - CALIBRE Cylinder Liner Puller With Support Brace

Feature:
  • Wet heavy-vehicle (e.g. Daimler Benz, MAN) cylinder liners, automobile and stationary-engine liners, and other parts may be extracted using this puller.
  • Suitable for Cylinder liners with Ø 60 - 160 mm
Operation:

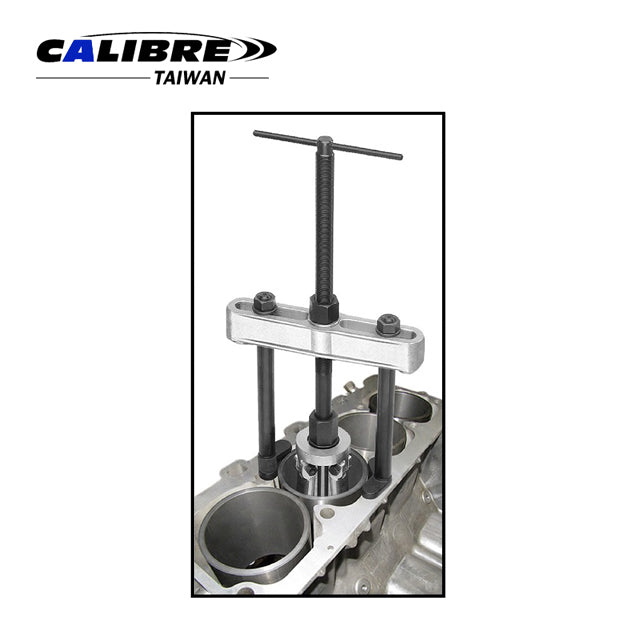

  • The spindle of the support brace is screwed into the clamping nut of the puller, and the puller inserted into the liner.
  • The support brace is placed on to the cylinder block.
  • Due to the newly developed spreading system, when the spindle is turned, all three jaws spread quickly and without difficulty, until they are firmly seated beneath the edge of the liner.
  • Then the nut of the support brace is tightened.
Packaging:
  • 1Set/Blow Mould Case
  • 2Set/16/16.5KGS/1.1'
