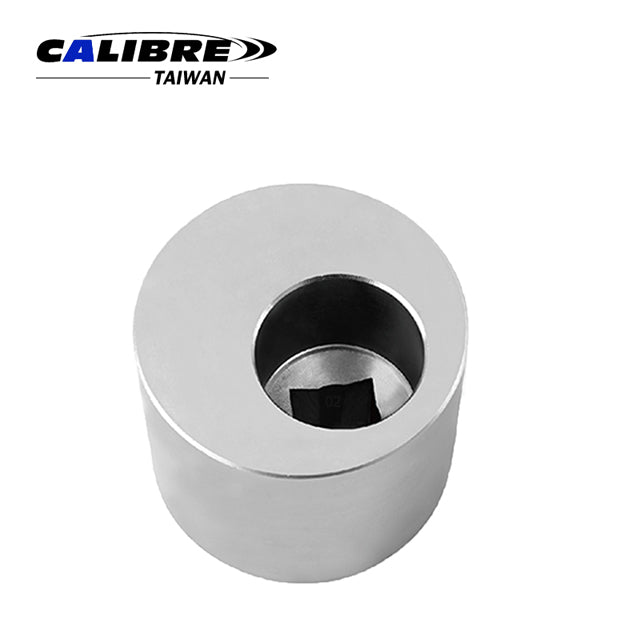

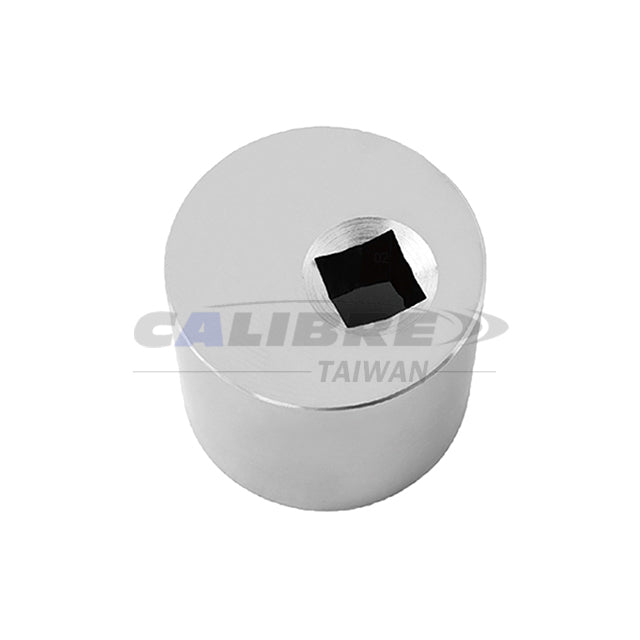

CAA0207 CALIBRE 1/2” Dr Rear Toe Adjustment Tool

CAA0207 CALIBRE 1/2” Dr Rear Toe Adjustment Tool

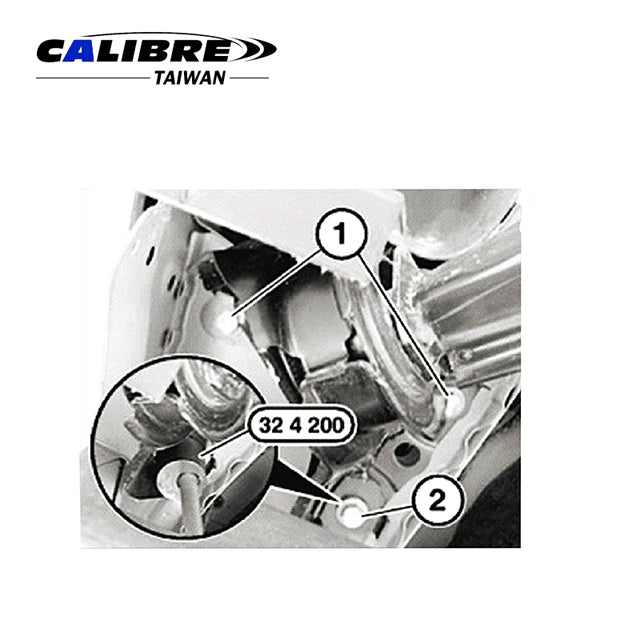

Toe alignment tool adjusts the rear toe angle on 1st generation MINI Coopers (2002–2006). Toe alignment tool moves the forward central arm bushing mount using special tool 32 4 200. Adjust rear toe with an eccentric bolt and plate. Loosen three mounting bolts to move the central arm in slotted holes for precise alignment and better handling.

Feature:

  • On 1st generation MINI Coopers (2002–2006), move the forward central arm bushing mount with special tool 32 4 200 to adjust the rear toe angle.
  • On 2002–2006 models, adjust the rear toe by turning the eccentric bolt and plate that secure the lower transverse link to the trailing arm.
  • Once the three mounting bolts are loosened, the central arm has slotted holes which allow for movement.
Packaging:
  • 1pc/White Box
  • 36pc/18/18.5kgs/0.6’
