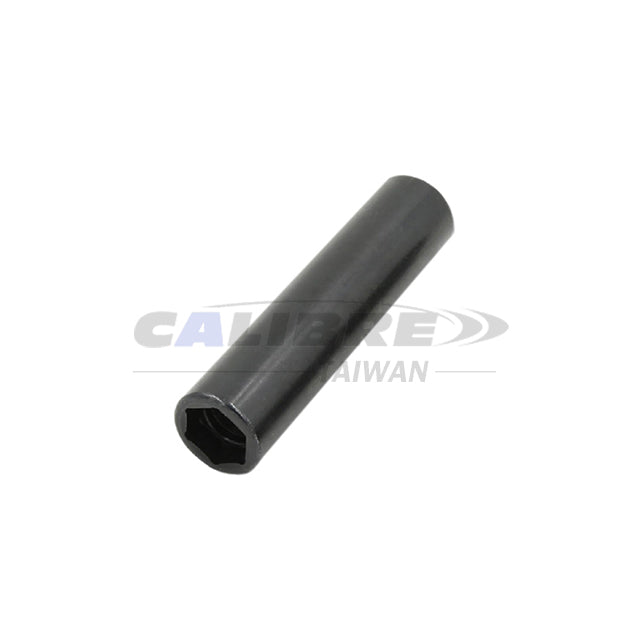

CAA0152 Dodge Wheel Hub Removal Adaptor

CAA0152 Dodge Wheel Hub Removal Adaptor

Feature:
  • The adaptor is designed to take off the front hubs found on the 3/4 ton (2500 series) and 1 ton (3500 series) Dodge pick up trucks.
  • The adaptor was designed to cut the flat rate for changing out U joints, front differential service, ball joints and any front hub service.
  • The adaptor works on both 6pt fasteners for newer models and 12pt fasteners found on older Dodge trucks.
Operation:

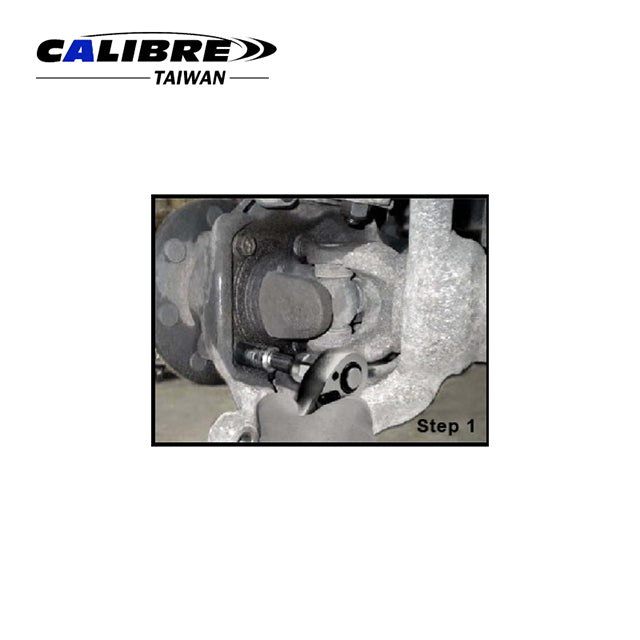

  • Step 1:
    Use socket and ratchet to loosen the four hub bolts.
    Just back the bolts out about a quarter inch (need them to press the hub out of the knuckle).

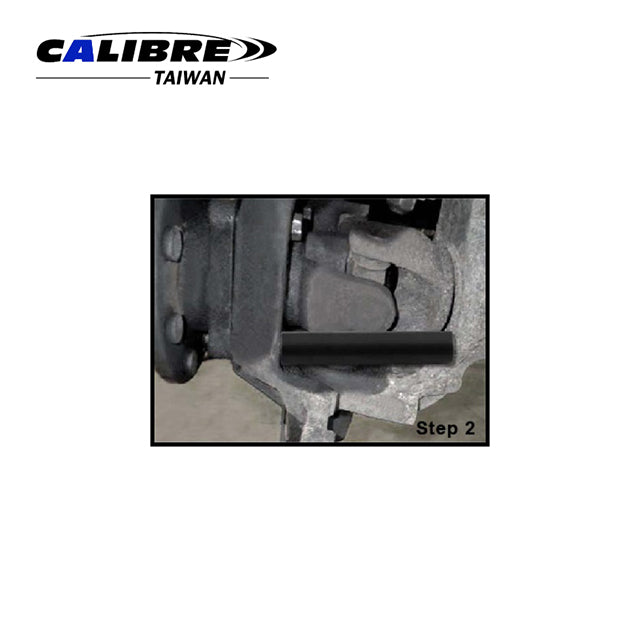

  • Step 2:
    Place the adaptor over hub bolt.
    Turn steering knuckle assembly to hold free end of the adaptor in place against axle bracket.
    Apply pressure by turning steering wheel.
Packaging:
  • 1pc/Sliding Card
  • 24pc/14/15kgs/0.4'
