CA800005 TAIWAN CALIBRE 2.5" Cylinder Leakage Tester Kit

CA800005 TAIWAN CALIBRE 2.5" Cylinder Leakage Tester Kit

Cylinder leakage tester kit

Cylinder leakage tester kit: First, connect a 90-100psi air source to reach the "SET ZONE." Meanwhile, choose the correct adapter from the included sizes. Consequently, you can accurately measure leakage percentages. Furthermore, this shock-resistant diaphragm gauge ensures high precision. Finally, verify the results to maintain engine efficiency. Although it is durable, always monitor input pressure carefully. Therefore, you can effectively diagnose trucks, cars, and various engines.

Specifications:

  • Dial Diameter: 2.5 inch
  • Dual Gauges
  • Pressure Range: 0~100psi/ 0~7bar & Leakage percentage
    Note: Pressure input from air compressor MUST REACH TO 90~100psi.
    Pointer in the Right gauge will be moved to "SET ZONE"
  • Housing: Black-Plated Steel
  • Lens: Acrylic
  • Pointer: Black

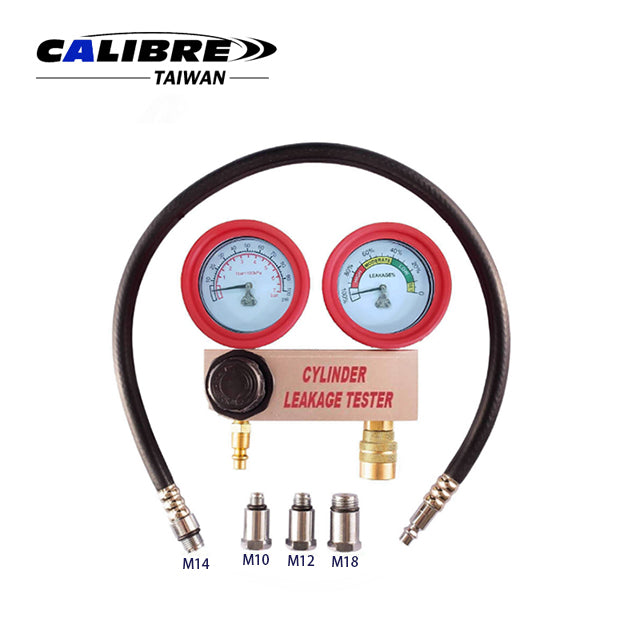

  • 600mm Hose with M14 adapter
  • Replaceable M18/M12/M10 adapters included
  • Protector: Red Rubber
  • Quick release male plug: American, European or Japanese type
  • Accuracy: ±3%~±2%~±3% (ANSI/ASME B40.100 Standard)

Feature:

  • Our diaphragm pressure gauge lacks gear teeth; consequently, it is more precise and durable for professional use.
  • Therefore, we have below special features:
    1.Precise
    2.Shock resistant and durable
    3.Sudden pressure endurable without oil-filled inside gauge
    4.Complying with ANSI/ASME B40.100 standard
    5.CE Certified
    6.ISO 9001 Quality System
    7.Quality Assurance Team monitoring
    8.Made in Taiwan

Application:

  • By testing leakage, you can effectively maintain efficiency; furthermore, this ensures various vehicles retain their maximum horsepower.

Others:

  • Other pressure scales available: bar, kPa, Mpa, kg/cm².
Packaging:
  • 1Set/Blow Mould Case
  • 10Set/18.6/21.5kgs/3.33'
