CA800004 TAIWAN CALIBRE 3.5" Vacuum / Fuel Pump Pressure Tester

CA800004 TAIWAN CALIBRE 3.5" Vacuum / Fuel Pump Pressure Tester

 Fuel pump pressure tester

Fuel pump pressure tester: First, connect the NBR hose using the provided adapters. Consequently, you can measure pressure and vacuum accurately. Furthermore, the air release function ensures safety during testing. Meanwhile, the gearless diaphragm design provides shock resistance. Thus, you can effectively monitor engine efficiency. Finally, verify readings to maintain horsepower. Therefore, this durable tool is ideal for professional diagnostics across various engine scales and types.

Specifications:

  • Dial Diameter: 3.5" inch
  • Pressure Range: 0~15psi / 0~1 kg/cm² & 0~30inHg/ 0~76cmHg
  • Housing: Black-Plated Steel
  • Ring: Black-Plated Steel
  • Lens: Glass
  • Pointer: Flat White-Plated Aluminum
  • Swivel Hanger
  • 24.4" NBR Hose

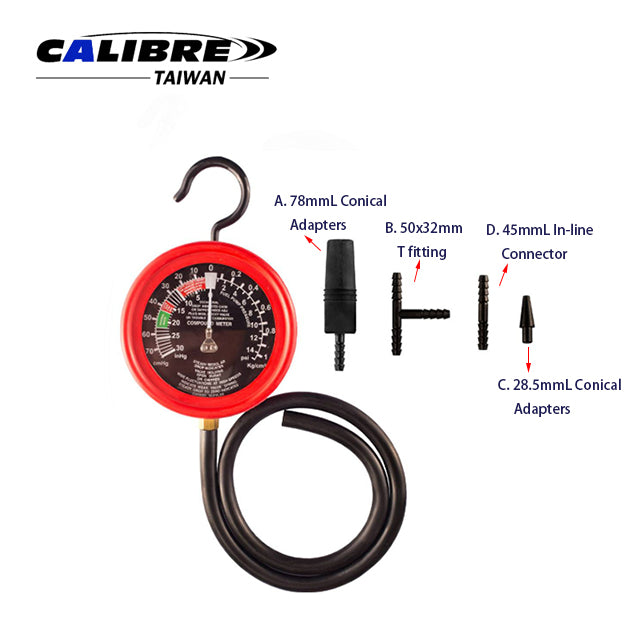

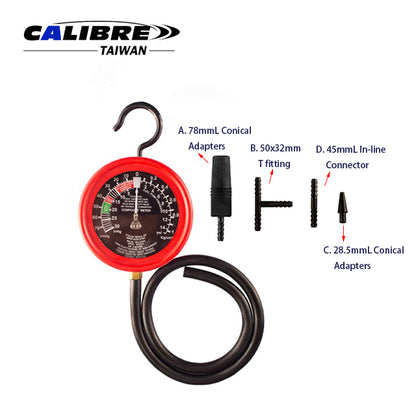

  • Conical Adapters in length 78mm (Mark A in below photo)
  • T fitting 50x32mm (Mark B in below photo)
  • Conical Adapters in length 28.5mm (Mark C in below photo)
  • In-line Connector in length 45mm (Mark D in below photo)
  • Rubber boot protector
  • Accuracy: ±3%~±2%~±3% (ANSI/ASME B40.100 Standard)

Feature:

  • Our gearless diaphragm pressure gauge lacks teeth; consequently, it offers superior precision while significantly increasing durability for professional engine diagnostic tasks.
  • Therefore, we have below special features:
    1.Accurate
    2.Shock resistant and durable
    3.Sudden pressure endurable without oil-filled inside gauge
    4.Air release function
    5.Complying with ANSI/ASME B40.100 standard
    6.CE Certified
    7.ISO 9001 Quality System
    8.Quality Assurance Team monitoring
    9.Made in Taiwan

Application:

  • Accurately test the throttle to keep engines efficient; hence, this tool helps your car reach its full horsepower.

Others:

  • Other pressure scales available: bar, kPa, Mpa, kg/cm².
Packaging:
  • 1Set/ Blow Mould Case
  • 5/10Set/9.5/11kgs/2.41'
