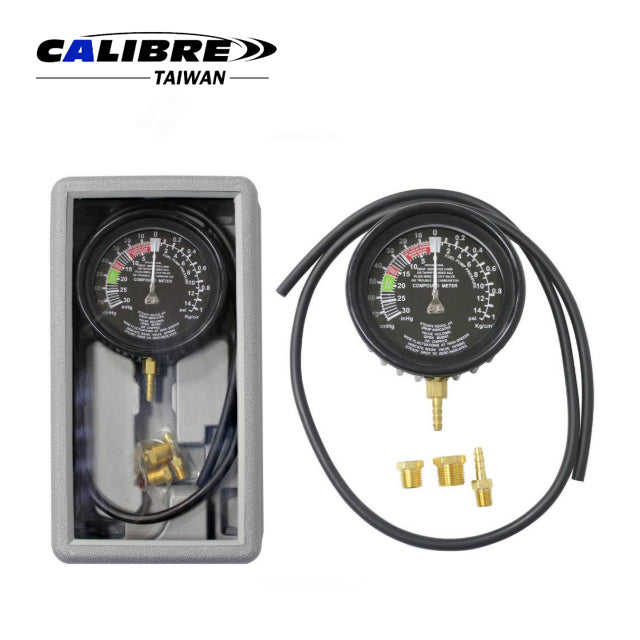

CA800003 TAIWAN CALIBRE Vacuum / Fuel Pump Pressure Tester (Compound Type)

CA800003 TAIWAN CALIBRE Vacuum / Fuel Pump Pressure Tester (Compound Type)

Fuel pump pressure gauge

Fuel pump pressure gauge: First, attach the NBR hose using the brass or NPT adapters. Subsequently, connect it to the engine to check pressure and vacuum. Because it uses a gearless diaphragm, the readings remain accurate and shock-resistant. Additionally, this compound gauge monitors efficiency for various vehicles. Finally, verify the results to ensure performance. Therefore, it provides a durable, oil-free solution for professional diagnostics.

Specifications:

  • Dial Diameter: 3.5 inch
  • Pressure Range: 0~15psi/ 0~1kg/cm² & 0~30inHg/ 0~76cmHg vacuum
  • Housing: Black-Plated Steel
  • Ring: Black-Plated Steel
  • Lens: Glass
  • Pointer: Flat White-Plated Aluminum
  • 6.5mm Brass fittings

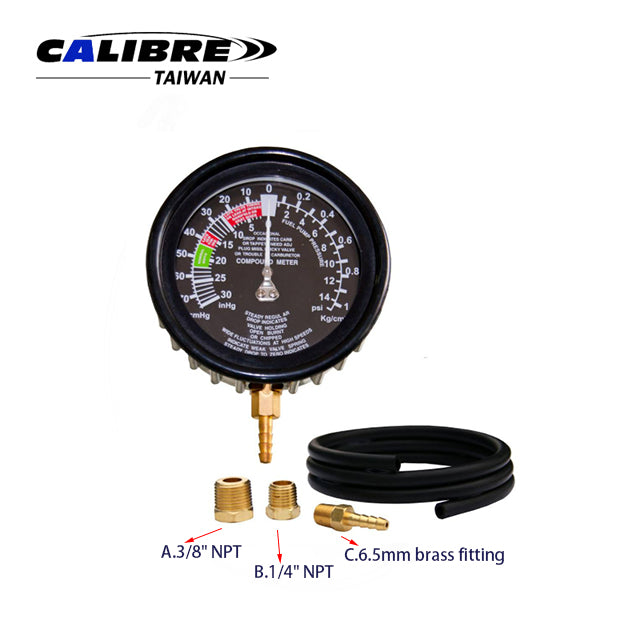

  • Also including 3 pieces adapters: 3/8" NPT, 1/4" NPT, 6.5mm brass fitting
  • 950mm NBR Hose
  • Rubber Protector
  • Accuracy: ±3%~±2%~±3%

Feature:

  • Our product is Diaphragm pressure gauge without any cut teethes of gear.
  • Therefore, we have below special features:
    1.Accurate
    2.Shock resistant and durable
    3.Sudden pressure endurable without oil-filled inside gauge
    4.Compound Type
    5.Complying with ANSI/ASME B40.100 standard
    6.CE Certified
    7.ISO 9001 Quality System
    8.Quality Assurance Team monitoring
    9.Made in Taiwan

Application:

  • Checking fuel pump pressure and vacuum for Car, Minivan, Jeep, Pick-up truck…etc.

Others:

  • Other pressure scales available: bar, kPa, Mpa, kg/cm².
Packaging:

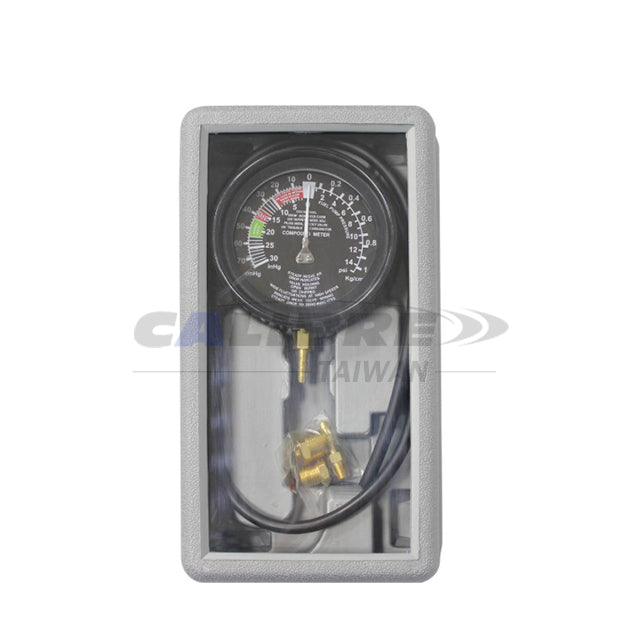

  • 1Set/Blow Mould Case
  • 6/24Set/20/22kgs/2.39'
