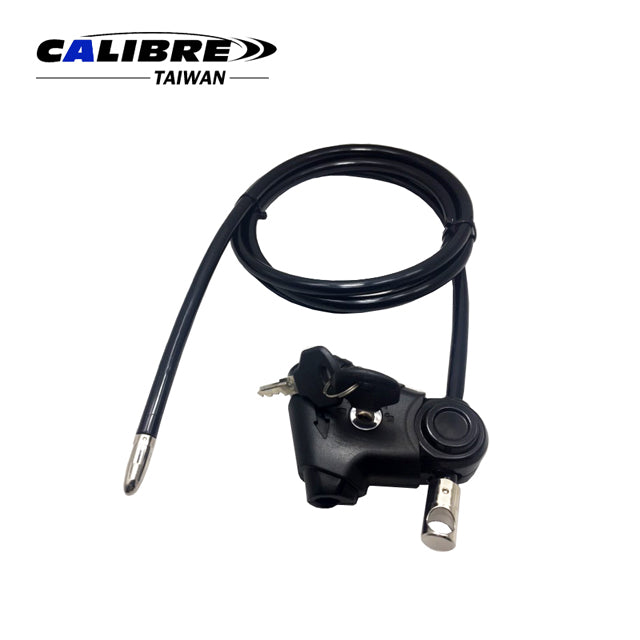

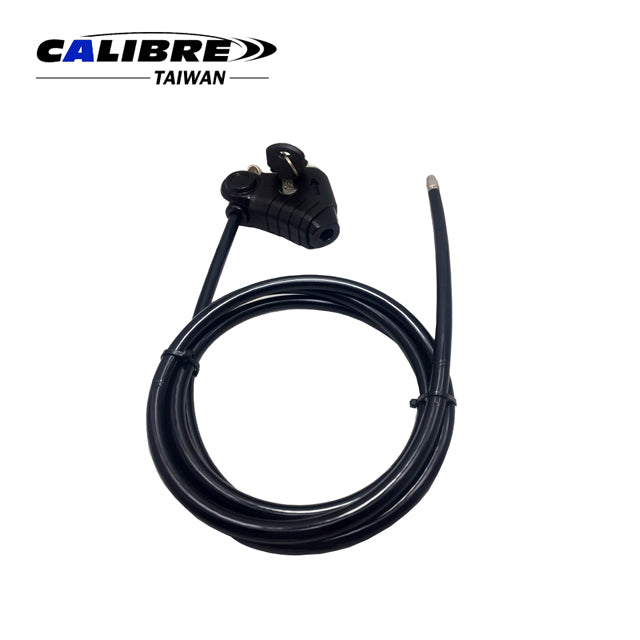

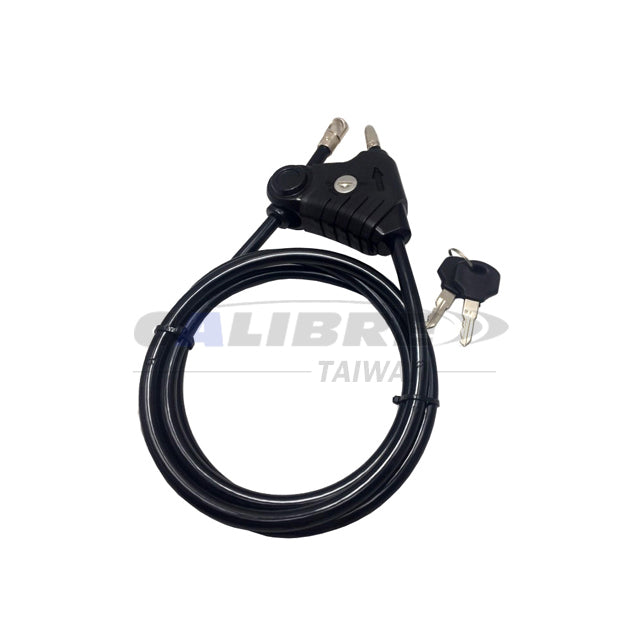

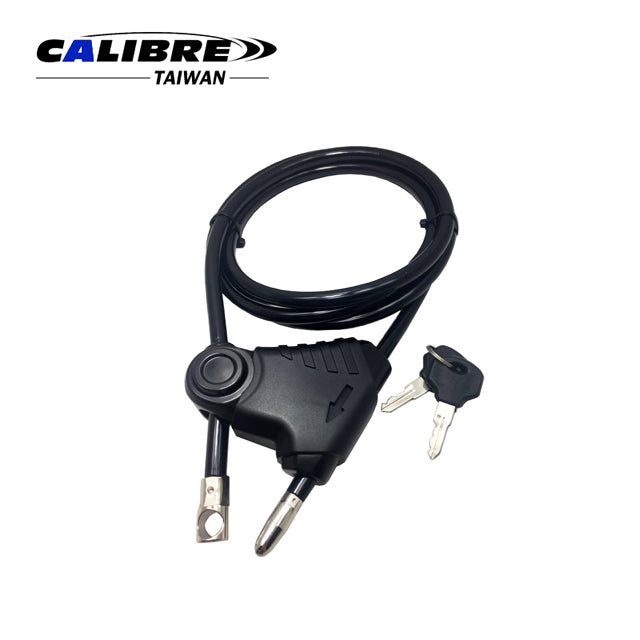

CA740005 CALIBRE Versatile Security Cable Locks

CA740005 CALIBRE Versatile Security Cable Locks

Cable lock key

It is designed for flexible security. To use the Cable lock key, wrap the 2000mm cable around items, adjust to desired length, and engage the patented locking mechanism. Use single or double loop as needed. Secure excess cable with the hook and loop strap.


Manual Download Here

Specification:

  • Cable size: Φ 10 x 2000 mm
  • Size: 79.2 x 38 x 102.7 mm

Description:

  • Patented adjustable locking mechanism holds cable tight at any position for perfect fit.

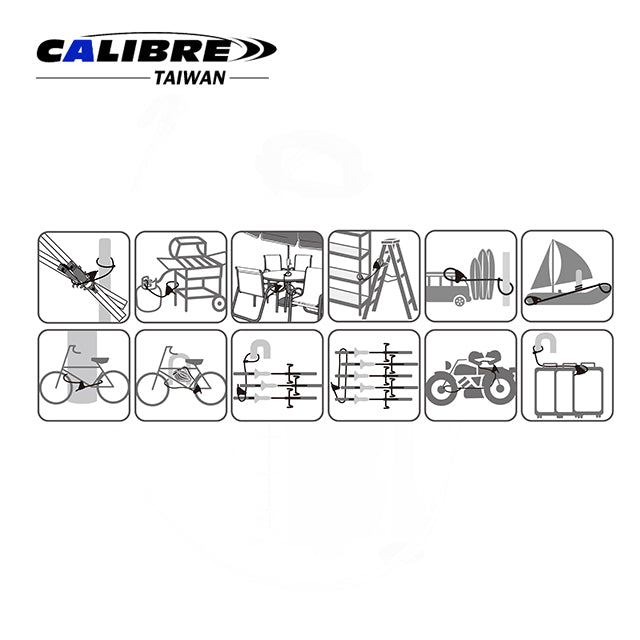

  • Multipurpose application for home, travel, bike and other activities.
  • Highly flexible locking way by either single or double loop.
  • Total solution for locking various objects at once.
  • Hook and loop fastener strap holds excess cable for compact storage.

Feature:

  • Tie-Down convenience
  • Ultimate flexibility
  • Compact storage with hook and loop fastener strap
  • Cutting resistant
  • Wafer key cylinder

Material:

  • Zinc alloy + ABS housing
  • PVC coated steel cable
Packaging:
  • 1pc/Polybag
  • 6/24pc/17.6/19kgs/1.48'

OPERATION MANUAL

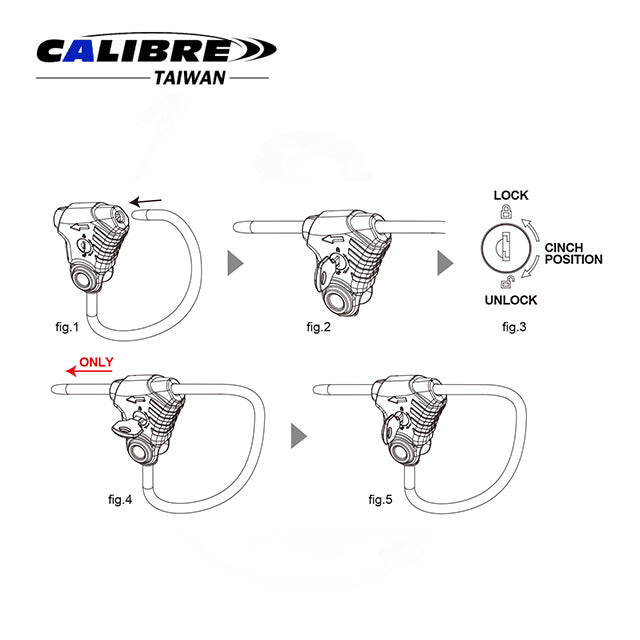

ONE LOOP USE

Step 1
Open lock, pull out the cable.
Step 2
Secure the object , insert Cable Tip through lock in the direction of arrow. (fig1+2.)
Step 3
Turn key from Unlock position counterclockwise to 90˚ (Cinch Position, fig.3), pull cable tight for a more secure fit (fig. 4)
Step 4
Turn key to further 90˚counterclockwise to Lock position(fig. 3+5), then cable is fixed now.

DOUBLE LOOP USE

Step 1
Pull the entire cable out of lock totally. (fig.1)
Step 2
Insert Cable Tip through Cable Adaptor as a loop with a stationary object. (fig.2)
Step 3
Insert Cable Tip through the bottom of lock body, in the direction of arrow, wrap cable around your property, insert Cable Tip through lock in the direction of arrow. (fig. 3)
Step 4
Turn key from Unlock position counterclockwise to 90˚ (fig.4), pull cable tight for a more secure fit (fig.5)
Step 5
Turn key to further 90˚ counterclockwise to Lock position (fig.4), then cable is fixed now

RELEASE CABLE

Step 1
Open the lock.
Step 2
Pull cable in the direction of arrow a bit (step.1) ,
then would be easy to pull cable out of whole lock body. (step.2)
