Projen Taiwan - Auto Tools, Hand Tools manufacturer

CA740001 TAIWAN CALIBRE 4 Digit Combination Key Lock Box

CA740001 TAIWAN CALIBRE 4 Digit Combination Key Lock Box

Key lock box

Key lock box setup is straightforward. Initially, ensure the zinc alloy housing is accessible. Subsequently, set your desired 4-digit combination using the plastic dial mechanism. Furthermore, test the code before closing the lid. Afterward, place your keys inside for secure storage. Finally, snap the box shut and scramble the dials. Consequently, your keys remain safe yet accessible to authorized users through this simple, durable locking system.

MANUAL Download Here

Feature:

  • 4-Digit combination
  • Lock housing material: Zinc alloy
  • Dial mechanism: plastic
Packaging:
  • 1pc/White Box
  • 20pc/11.4/12.4kgs/0.97'

OPERATION MANUAL

The Lock is preset at O-O-0-0. (Even though dials may appear in other numbers).
How to Open:

First, turn the dials to the preset 0-0-0-0 combination; subsequently, pull the door down to open it.
To prevent other people beside you to see your code,please scramble the combination after open the door.

How to Close:

Turn the dials at preset combination 0-0-0-0 and push up to close.
Please scramble the combination after close the door.

How to reset your combination:

1. Open the lock at preset number in 0-0-0-0.
2. Push the reset lever from original A to position.
3. Set your own combination, such as 1-2-3-4.
4. Push back the reset lever from B to A posilion.

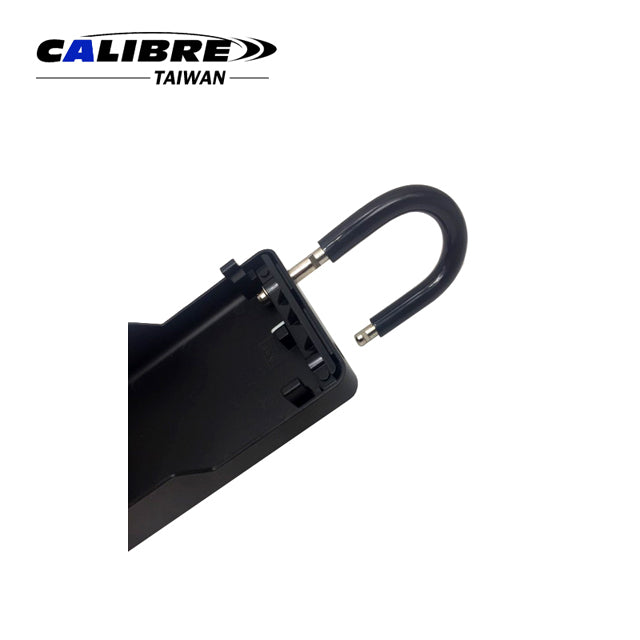

Opening your shackle

1. Open your lock.

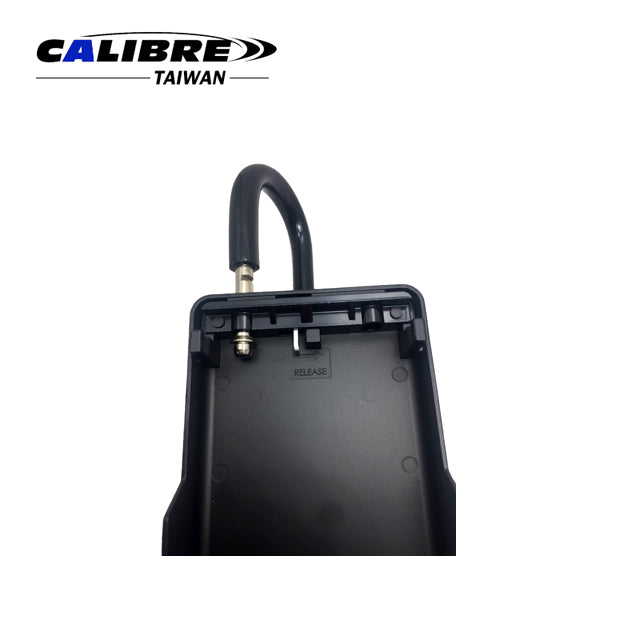

2. Slide the Release Lever in direction of the arrow.
3. Open lock Shackle.
4. Then remove Shackle.
5. Affix to suitable anchor.

Closing your shackle
1. Holding the Release Lever in the direction of the arrow.
2. Relocate Shackle into lock.
3. Then release the Release Lever.
