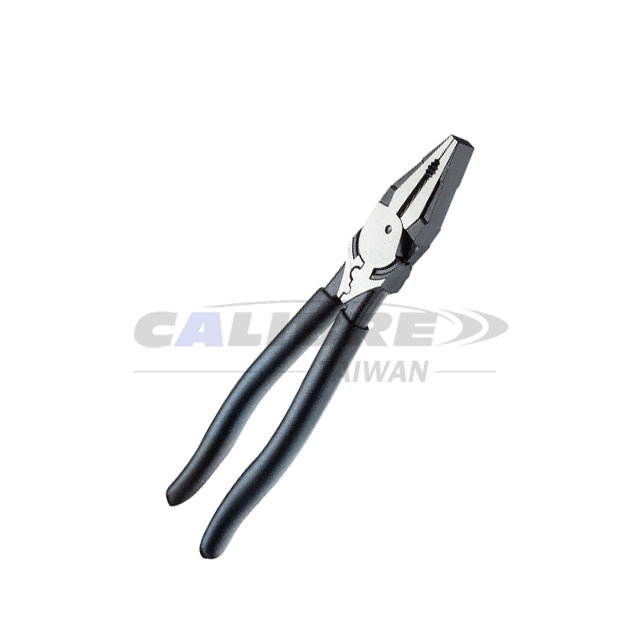

CA720006C TAIWAN 9" New Type High Leverage Combination Pliers + Crimping

CA720006C TAIWAN 9" New Type High Leverage Combination Pliers + Crimping

High leverage pliers snap on

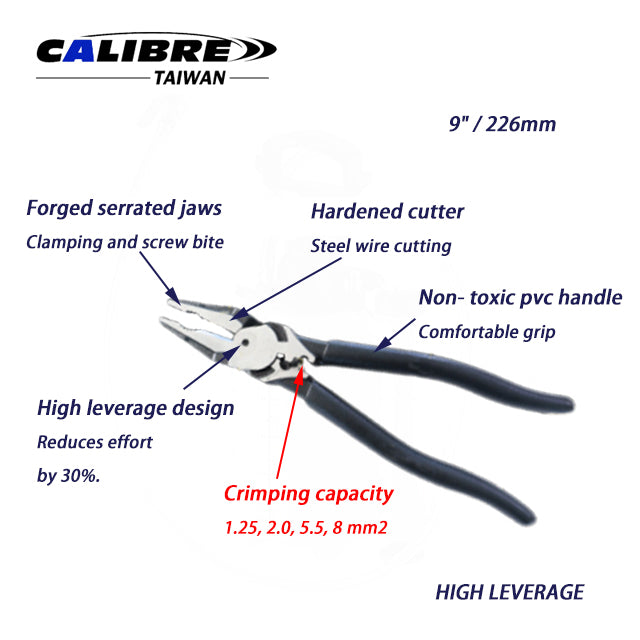

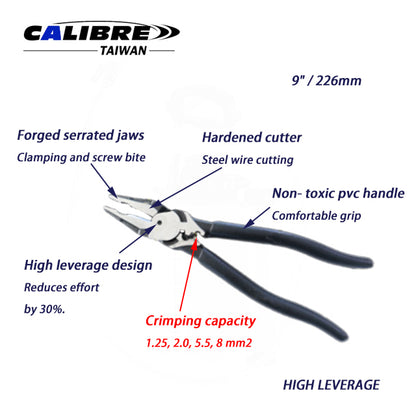

High leverage pliers snap on are 226mm long with an SCM440 body (45 ±2 HRC) and a PVC handle. The 60 ±2 HRC cutting edge cuts steel wire up to ∅2.5mm and has a 20% effort reduction due to the high leverage design. They also crimp non-insulated terminals (1.25 to 8 mm²). Use for clamping, twisting, bending, cutting, and gripping wires with optimized jaws

Size:

  • Full length: 226mm

Material:

  • Body: SCM440 CR-MO
  • Handle: PVC

Hardness:

  • Cutting edge: 60±2 HRC
  • Body: 45±2 HRC

Cutting ability:

  • Iron wire ∅3.6mm
  • Electric wire ∅5.5mm
  • Steel wire ∅2.5mm

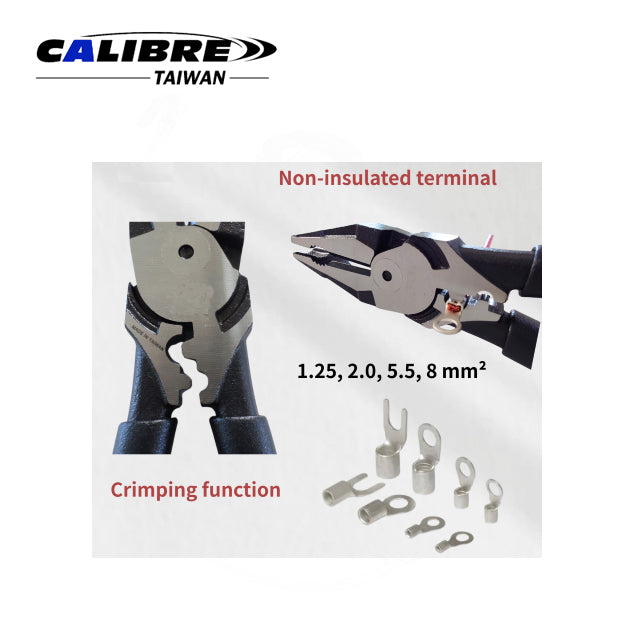

Crimping capacity:

  • Non-insulated terminal 1.25, 2.0, 5.5, 8 mm²

Feature:

  • Mainly used for clamping, twisting, bending and cutting wires, cables and other metal parts.

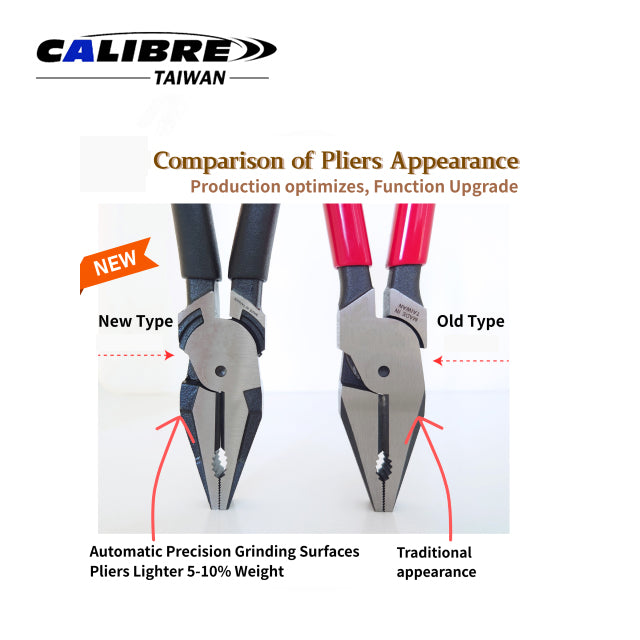

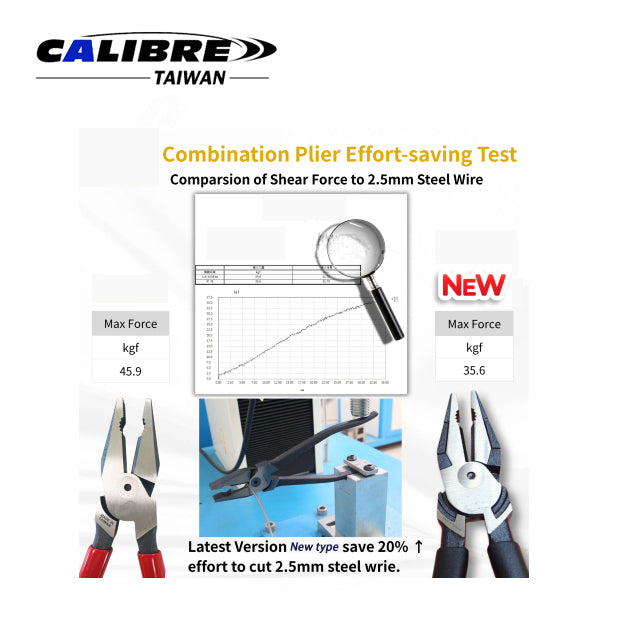

  • High leverage design (rivet closer to plier’s head), reduces effort by 20% more than old type, making steel wire cutting easier.
  • Fine teeth at the front and coarse teeth at the rear of the jaws, optimized for gripping various materials.
Packaging:
  • 1pc/Sliding Card
  • 6/60pc/25kgs/3.39'
