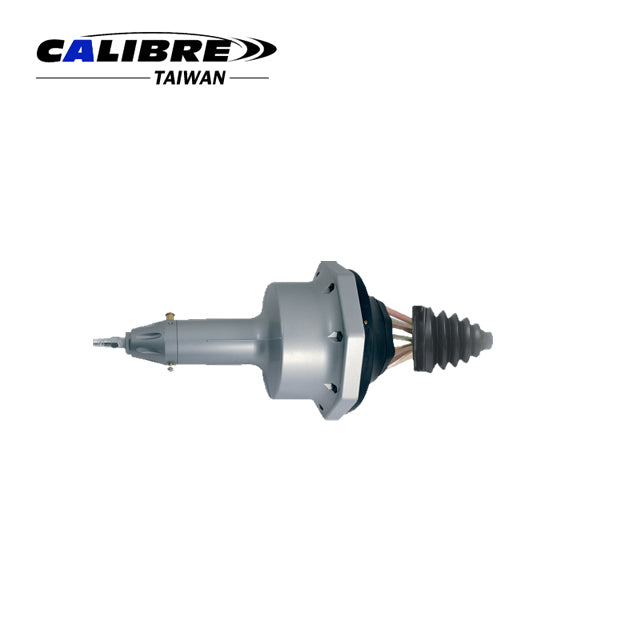

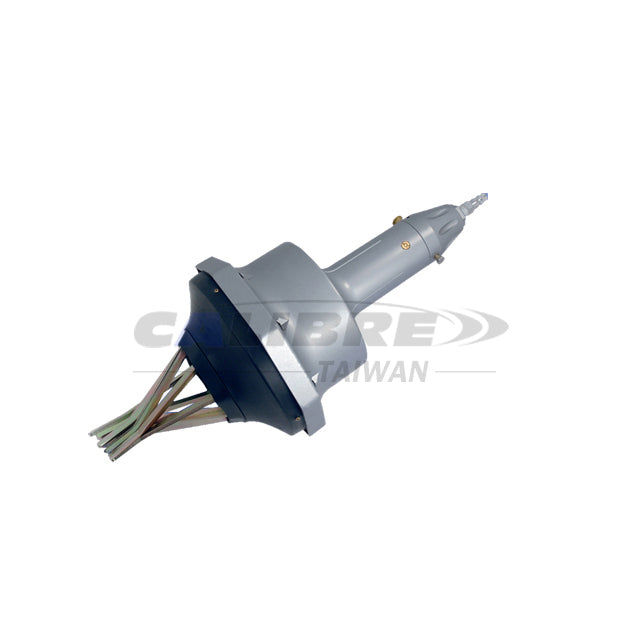

CA616100 TAIWAN CALIBRE AIR Powered CV Boots Installation Tool

CA616100 TAIWAN CALIBRE AIR Powered CV Boots Installation Tool

CV boot installation tool

CV boot installation tool stretches flexible rubber boots onto automotive drive-shaft assemblies. First, place the CV boot securely on the front jaws. Next, press the pressure switch to expand the jaws up to 110mm. Then, position the expanded boot over the CV joint. Finally, press the release button to fit the boot securely onto the joint. Operate with 5–8 bar working pressure.

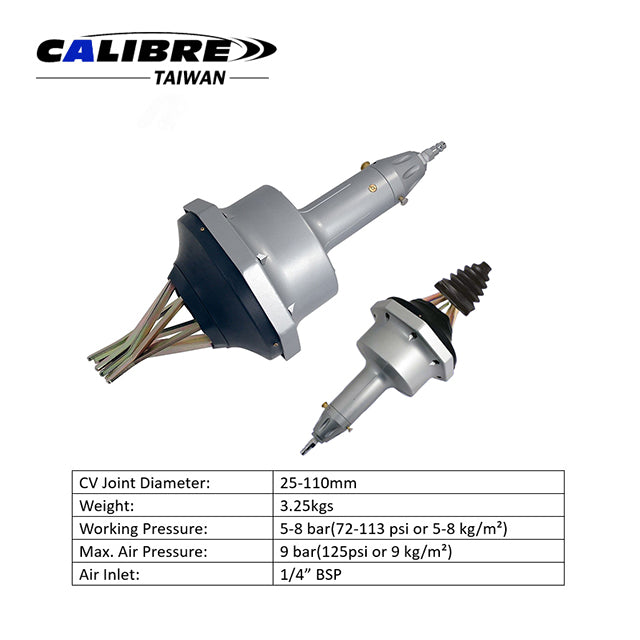

Details:

  • CV Joint diameters: 25-110mm
  • Weight: 3.25kgs
  • Working Pressure:5-8 Bar( 72-113psi or 5-8kg/㎡)
  • Max. Air pressure:9 Bar(125psi or 9kg/㎡)
  • Air Inlet: 1/4” BSP

Feature:

  • Air Powered
  • This Boot Tool is used for the stretching of flexible rubber CV boots onto automotive drive-shaft as assemblies.

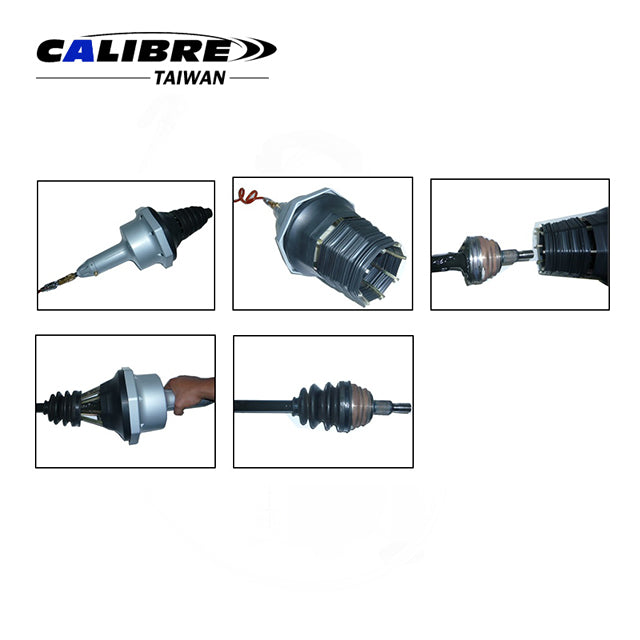

Instruction:

  • Put the CV boots on the front jaws. And ensure the jaws hold CV boots firmly.
  • Press the pressure switch, then the front jaws will open to max diameter 110mm.
  • Put the CV boots into the CV joint, then press the release bottom to release the CV boots onto the CV joint.
Packaging:
  • 1pc/Corrugated Box or White Box
  • 4pc/13/14kgs/3.5'
