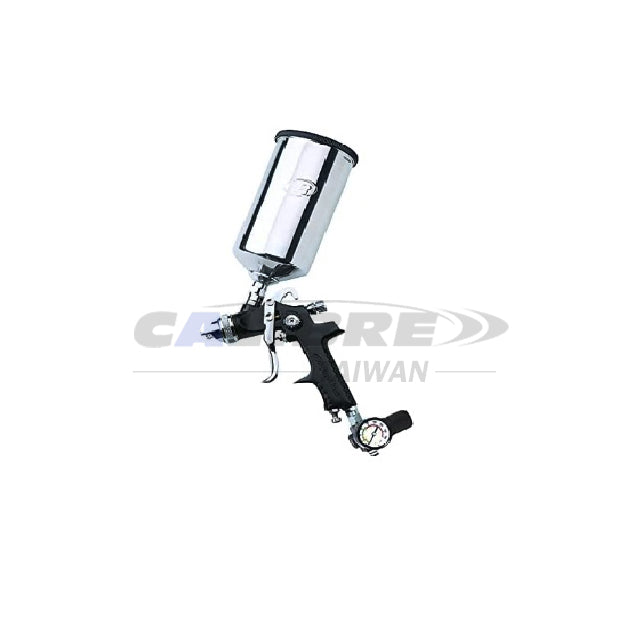

CA580041 TAIWAN CALIBRE M16 * 1.5P 1000C.C. Spray Gun

CA580041 TAIWAN CALIBRE M16 * 1.5P 1000C.C. Spray Gun

Air paint spray guns

Air paint spray guns (CA580041) operation guide: Connect the 1/4" NPS air line and M16*1.5P fluid line to the 600g aluminum body. Fill the 1000cc aluminum gravity cup. Set working pressure to 43 PSI (8 CFM air consumption). Maintain an 18-23cm spray distance for a 24-26cm spurt length using the 1.5mm stainless steel nozzle delivering 150cc/min paint flow.

Specifications:

  • Air inlet: 1/4" 18.5NPS
  • Fluid inlet: M16*1.5P
  • Fluid function: GRAVITY
  • Work pressure: 43 PSI
  • Air consumption: 235L/MIN/8CFM
  • Paint cup: 1000C.C.(Aluminum)
  • Gun weight: 600g
  • Consumption Paint measure: 150cc/min/1.5mm
  • The length of spurt: 24-26cm/1.5mm
  • Nozzle size: 1.5mm
  • Spurt distance: 18-23cm

Material:

  • Nozzle & Needle: stainless steel (303)
  • Body: Aluminum Alloy Die-casting
Packaging:
  • 1Set/Box
  • 10Set/17/18kgs/2.7'
