CA580032 TAIWAN CALIBRE Axle Staked Nut Air-Chisel Punch Set

CA580032 TAIWAN CALIBRE Axle Staked Nut Air-Chisel Punch Set

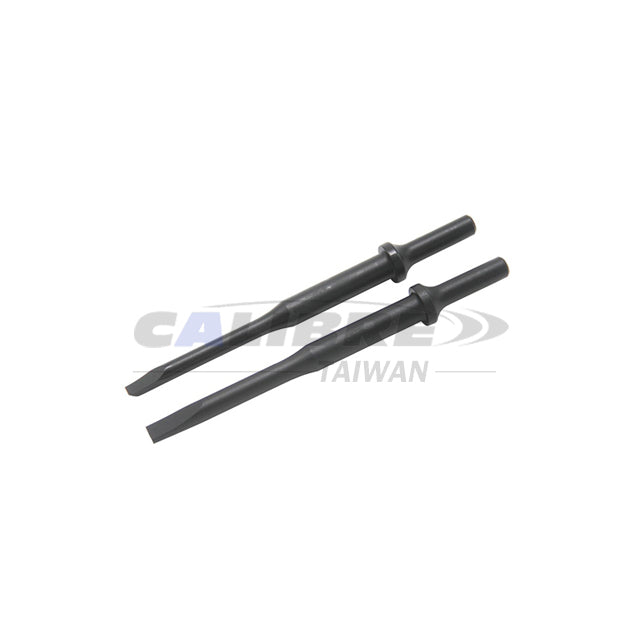

Staked axle nut punch set

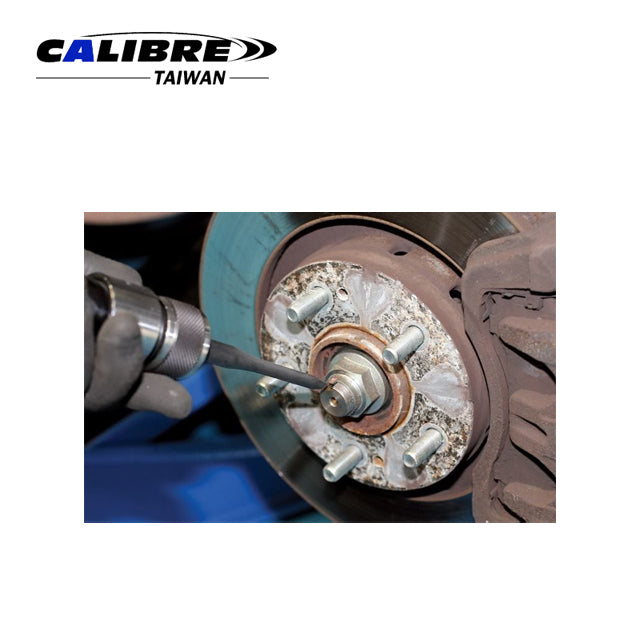

Staked axle nut punch set works with an air chisel to quickly remove and reset staked axle nuts. Use the curved tip punch to release the stake, then the flat punch to re-stake during reassembly.

Size:

  • The punches are 178mm in length with a 10mm shank diameter

Material:

  • SCM440

Feature:

  • Using the punches with the air-chisel makes this a quick and easy procedure that reduces the chance of causing damage to the axle shaft and threads.

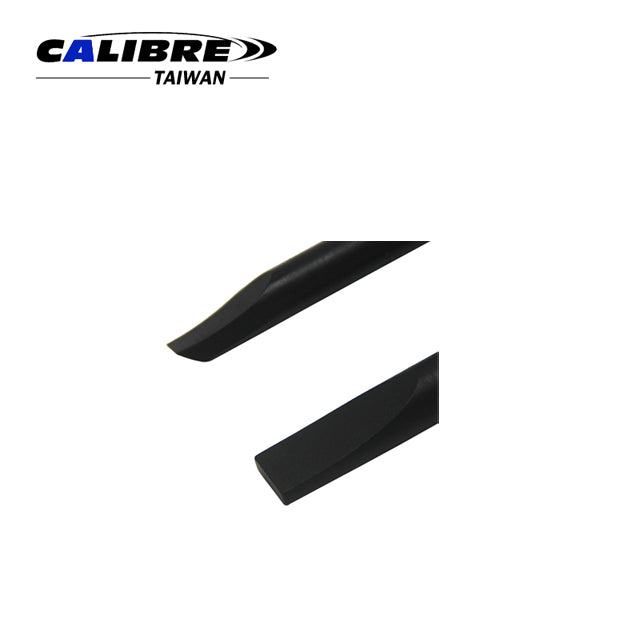

  • The kit includes a removal punch with a curved release tip to disengage the stake (crimp) and thus release the axle nut.
  • On replacement, the second flat-bladed punch is used to reset the stake squarely and positively.

Application:

  • Include wheel bearings, prop-shaft and drive-flange stake nuts across many makes of vehicle.
Packaging:
  • 1Set/Corrugated Box
  • 80Set/20/21kgs/0.5'
