CA531100 TAIWAN CALIBRE 12pc Terminal Tool Kit

CA531100 TAIWAN CALIBRE 12pc Terminal Tool Kit

Terminal pin removal tool

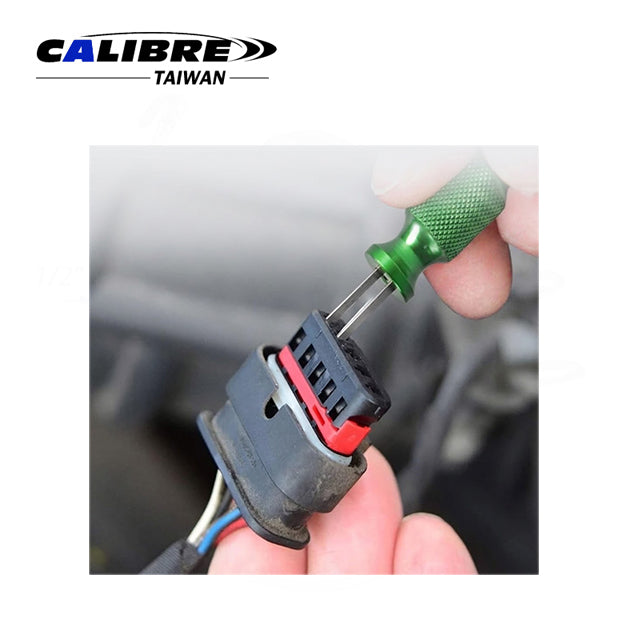

Terminal pin removal tool kit enables safe extraction of vehicle computer connectors and harness terminals. First, identify the required blade or tube shape using the color-coded aluminum handles. Next, carefully insert the corresponding tip into the housing slot to release the internal locking tab. Finally, gently pull the wire and terminal out from the rear connector, preventing damage during electrical repairs.

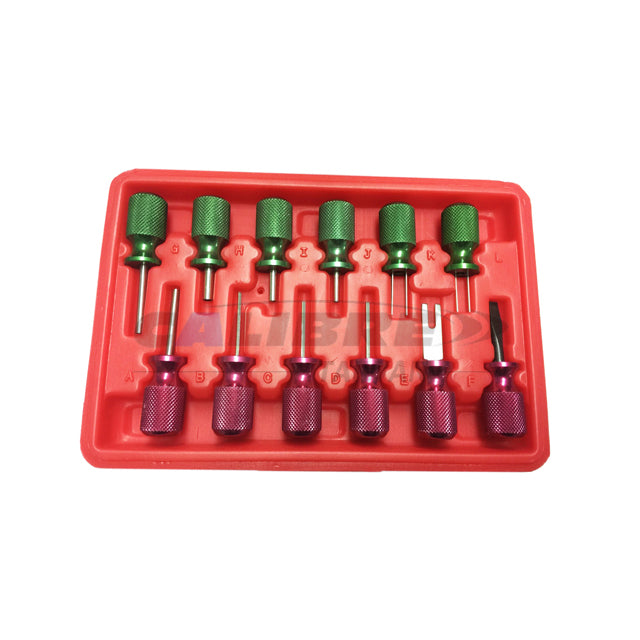

Contents:

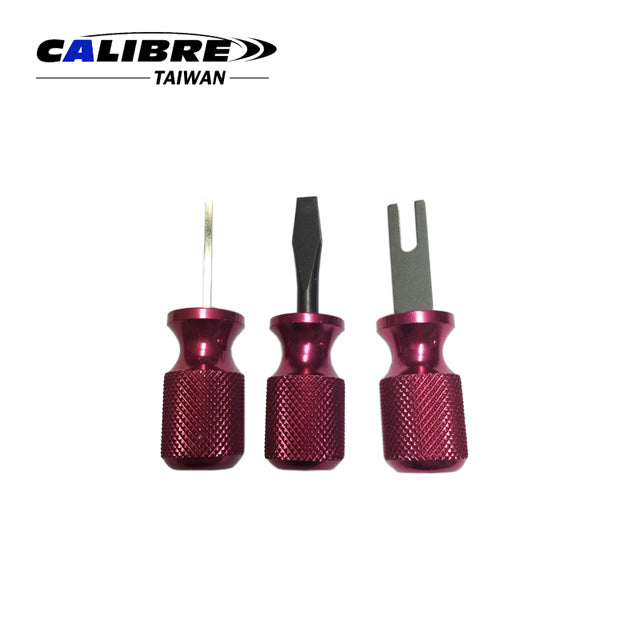

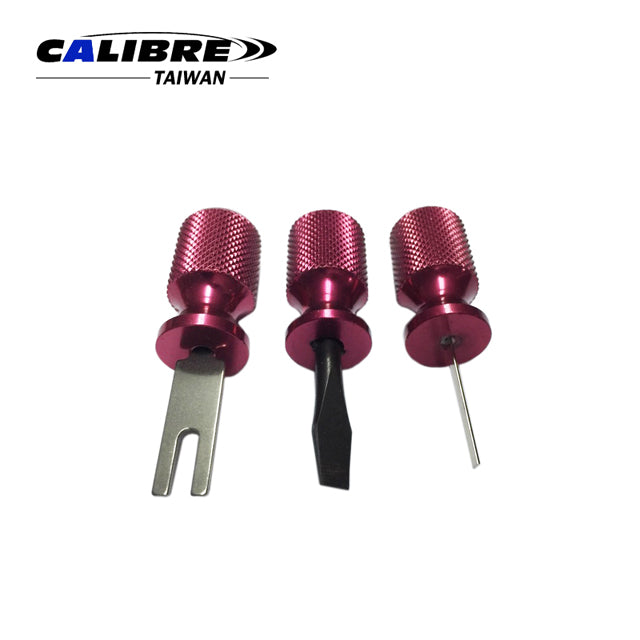

  • Red-
    Spring Loaded Tube; 3.2 x 28mm,
    Square Blade: 1.4 x 28mm,
    Flat Blade:1.5 x 24.75mm, 2 x 23mm,
    Fork Blade: 8 x 24mm,
    Screwdriver:3/16” x 1”

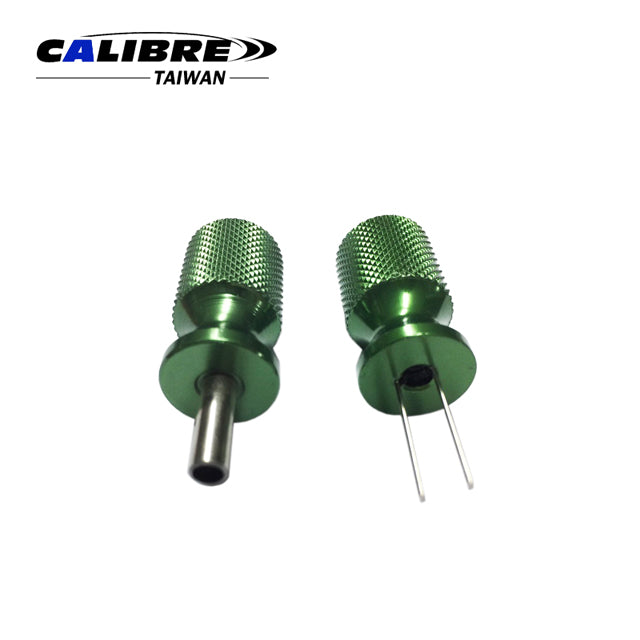

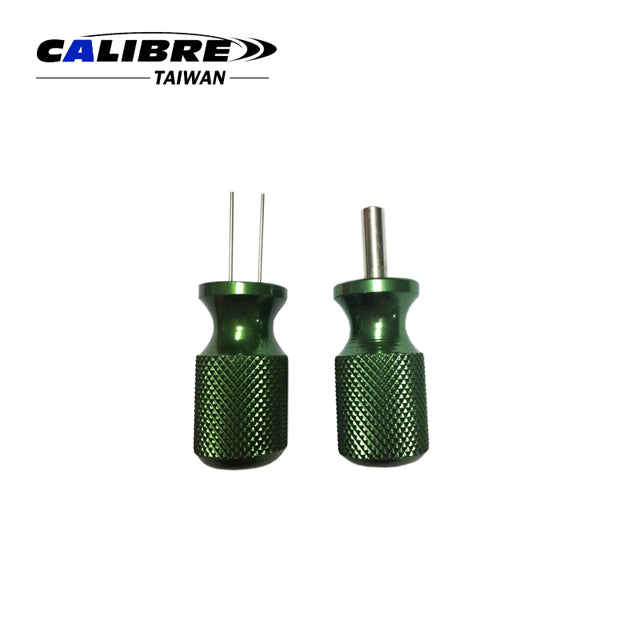

  • Green–
    Tube: 3.3 x 28mm. 4.3 x 13mm,
    3.75 x 13mm, 3 x 13mm,
    Flat Twin Blade; 3mm, 1.6mm

Application:

  • Suitable for the removal of vehicle computer connectors and terminals.
  • Designed for GM C3 system, the 12pc kit has a general application for safe and fast removal of terminals on a wide range of vehicles.
  • Color code Alu. Handles make for easy identification.
Packaging:

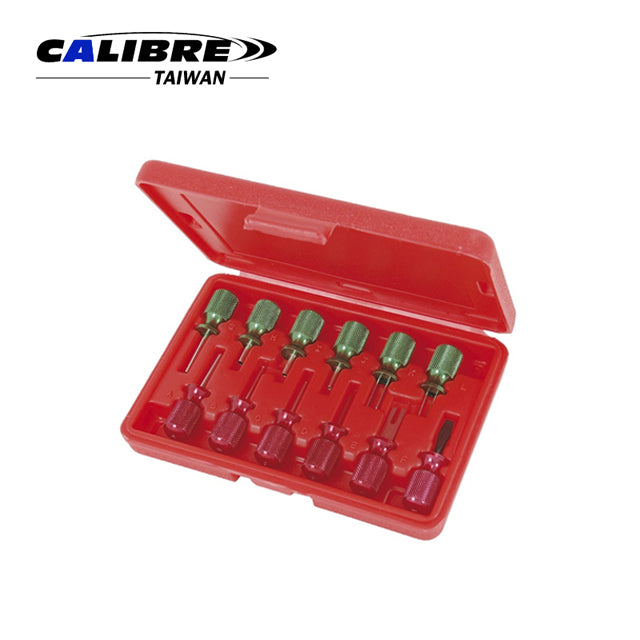

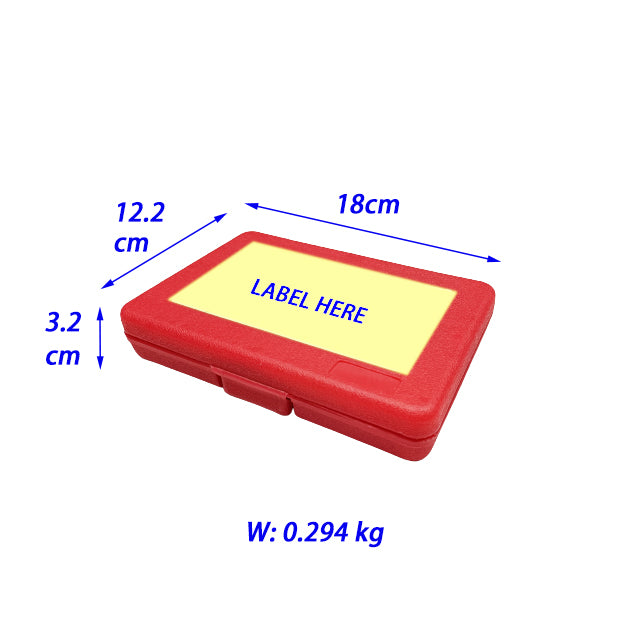

  • 1Set/Blow Mould Case
  • 50Set/14.8/15.6kgs/1.5'
