• VDE Insulated Torque Wrench
  • VDE Torque Wrench
  • Insulated Torque Wrench
  • Torque Wrench
1 4

Projen Taiwan

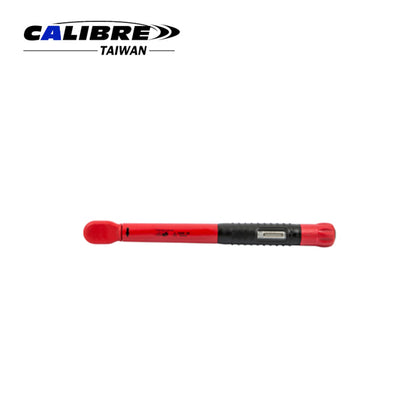

CA510020 TAIWAN CALIBRE VDE Insulated Torque Wrench

CA510020 TAIWAN CALIBRE VDE Insulated Torque Wrench

Size

Insulated torque wrench

Insulated torque wrench operation: First, use this VDE-certified tool, tested to IEC 60900 (up to 1000V AC/1500V DC), only with safety gear in charged areas to prevent shock. Furthermore, it features a 45-tooth ratchet for precise clockwise tightening. Finally, it is available in 1/4", 3/8", and 1/2" drives with various Nm ranges, making it ideal for electrical professionals.

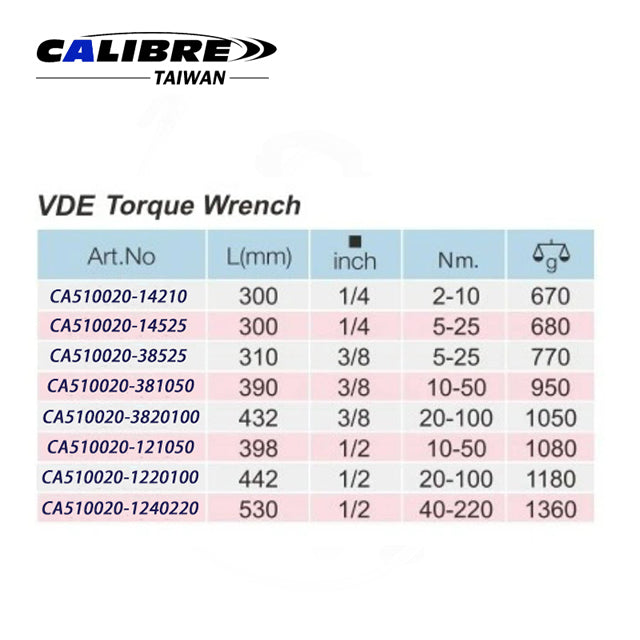

Size:

  • CA510020-14210: 1/4" Dr x 2-10 Nm x 300mmL
  • CA510020-14525: 1/4" Dr x 5-25 Nm x 300mmL
  • CA510020-38525: 3/8" Dr x 5-25 Nm x 310mmL
  • CA510020-381050: 3/8" Dr x 10-50 Nm x 390mmL
  • CA510020-3820100: 3/8" Dr x 20-100 Nm x 432mmL
  • CA510020-121050: 1/2" Dr x 10-50 Nm x 398mmL
  • CA510020-1220100: 1/2" Dr x 20-100 Nm x 442mmL
  • CA510020-1240220: 1/2" Dr x 40-220 Nm x 530mmL

Feature:

  • The torque wrench is engineered for precision. Specifically, it possesses 45 teeth. Consequently, it is designed to rotate clockwise for tightening.
  • The ratchet also has 45 teeth and can rotate clockwise.
  • Consequently, this specialized tool is ideal for electrical technicians and industrial professionals. Therefore, it meets the rigorous demands of these fields.

Description:

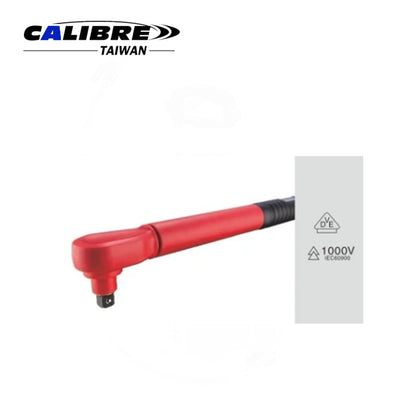

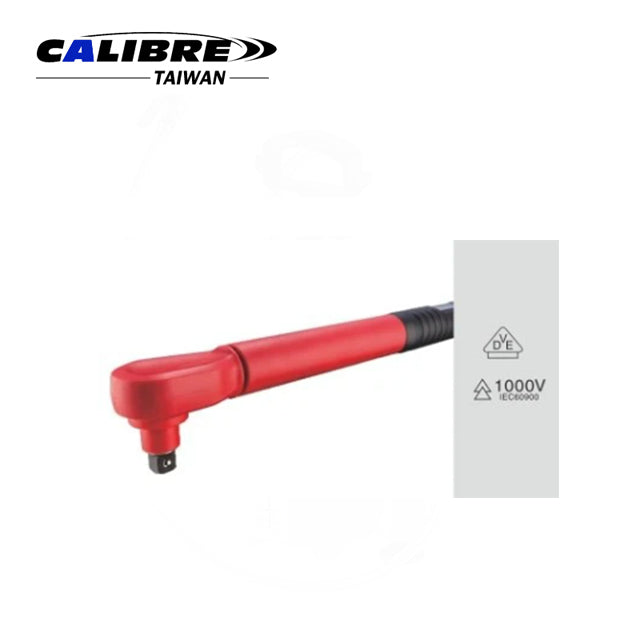

  • Tested in accordance with IEC 60900 and live up to 1000V AC or 1500V DC.
  • With VDE Certificate approved.
  • 1/4”, 3/8”, 1/2" are available.
  • In charged environments, please use insulated tools, insulated gloves, and safety equipment to prevent the risk of electric shock and ensure safety.
Packaging:
  • 1pc/Blow Mould Case
  • CA510020-14210: 12pc/12/13kgs/1.22'
  • CA510020-14525: 12pc/12/13kgs/1.22'
  • CA510020-38525: 12pc/13.2/14.2kgs/1.22'
  • CA510020-381050: 8pc/11/12kgs/1.07'
  • CA510020-3820100: 8pc/11.6/12.6kgs/1.07'
  • CA510020-121050: 8pc/12/13kgs/1.07'
  • CA510020-1220100: 8pc/13.2/14.2kgs/1.07'
  • CA510020-1240220: 8pc/16.4/17.4kgs/1.42'
