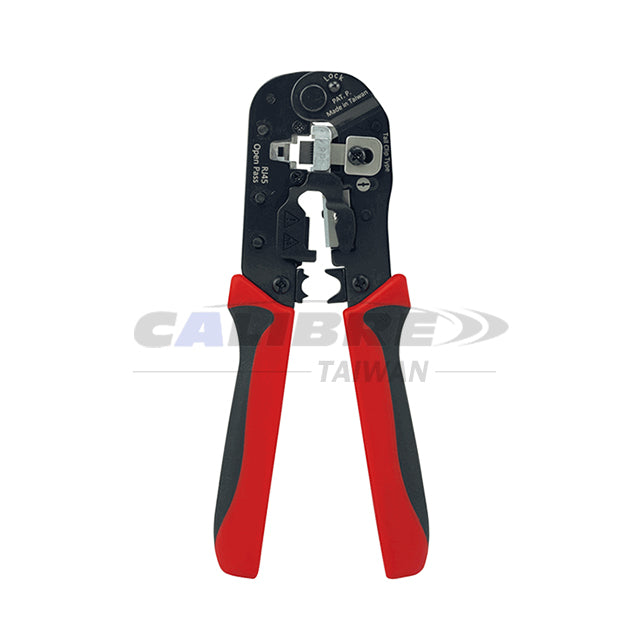

CA360025 TAIWAN CALIBRE Open-Pass, Shielded Tail Clip (External Ground) 8P Modular Plug Crimper

CA360025 TAIWAN CALIBRE Open-Pass, Shielded Tail Clip (External Ground) 8P Modular Plug Crimper

Crimping tool cable

Crimping tool cable preparation starts with stripping and cutting round cables safely using the blade-guarded integrated stripper. Prepare the cable, insert it into an Open-Pass 8P plug, adjust the crimp bar for the strain latch, and wrap the shielded tail clip with the 360-degree holder. Crimp and trim extended wires in one step using the zinc alloy section, then secure the handle lock for safe storage.

Size:

  • 190mm (7.5")

Feature:

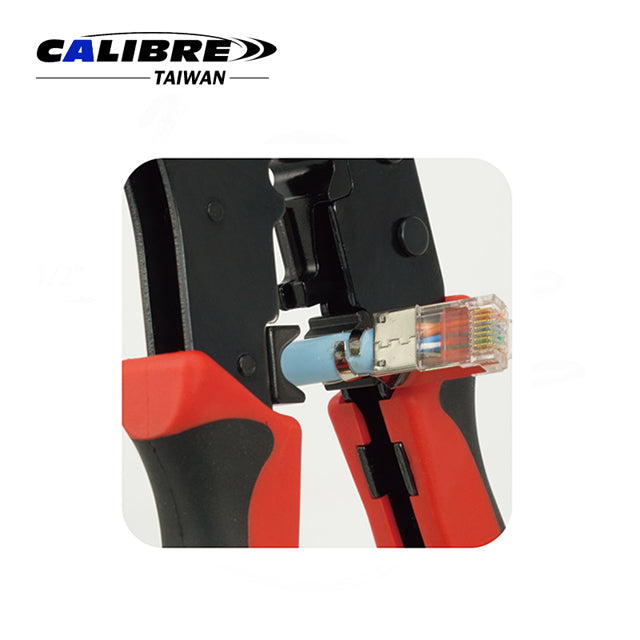

  • Works on Open-Pass and shielded tail clip (external ground) 8P plugs.

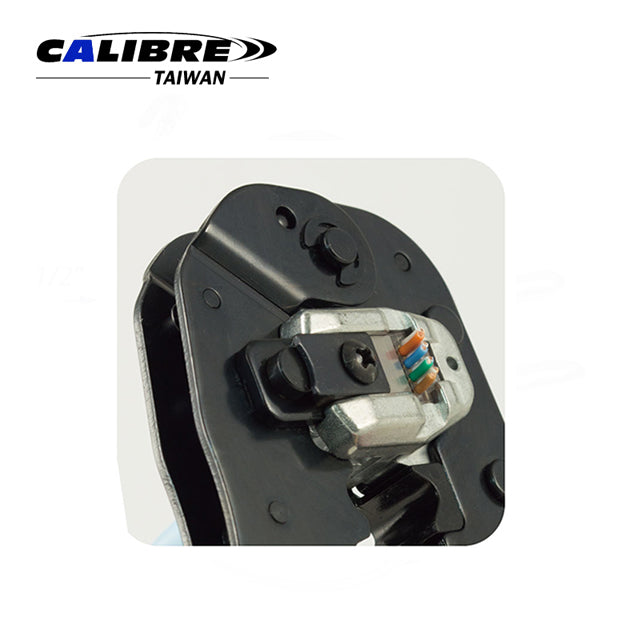

  • Zinc alloy section crimps and trims the extended wires with flat surface in one step accurately.

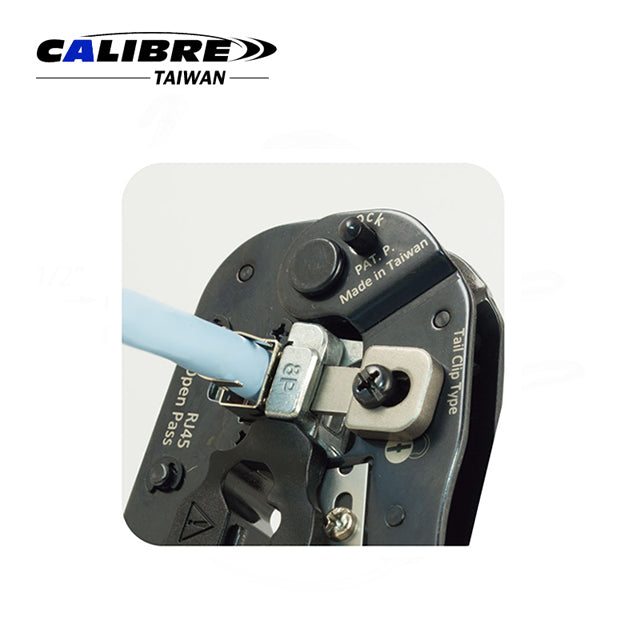

  • 360-degree holder wraps clip and crimps onto cable securely.

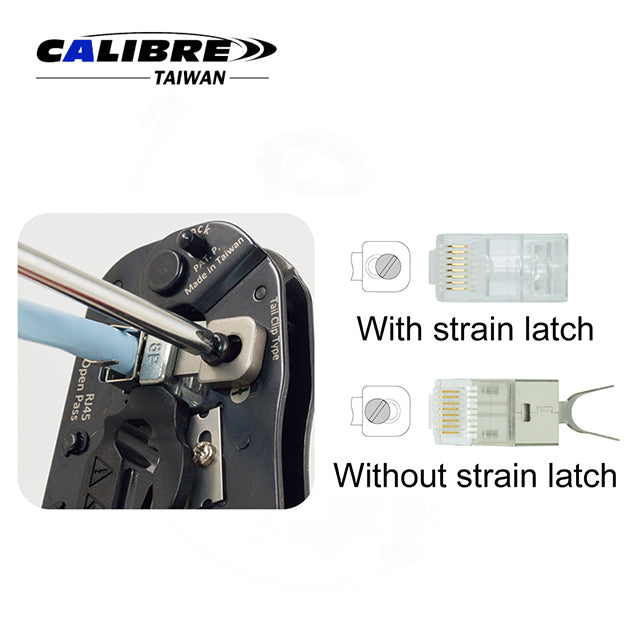

  • Adjustable crimp bar for the plug type with or without strain latch.
  • Integrated round cable stripper & cutter for cable preparation and user handy.
  • Blade-guard reduces injury during cutting and stripping operation.
  • Handle lock keeps in closed position for better safety and storage.
  • Ergonomic non-slip dual-color grips enhance user comfort.

Application:

  • Open-Pass Shielded/Unshielded 8P8C/RJ45 and Shielded Tail Clip
  • Cable Around Ø5.5~Ø8.5
Packaging:
  • 1pc/Sliding Card
