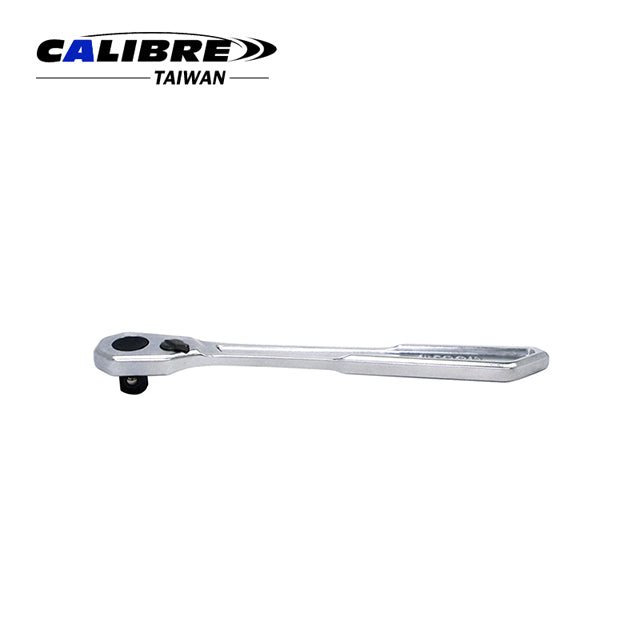

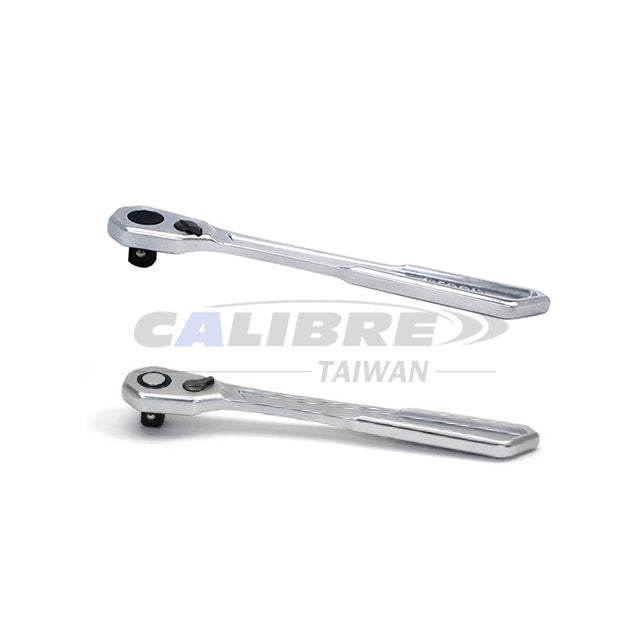

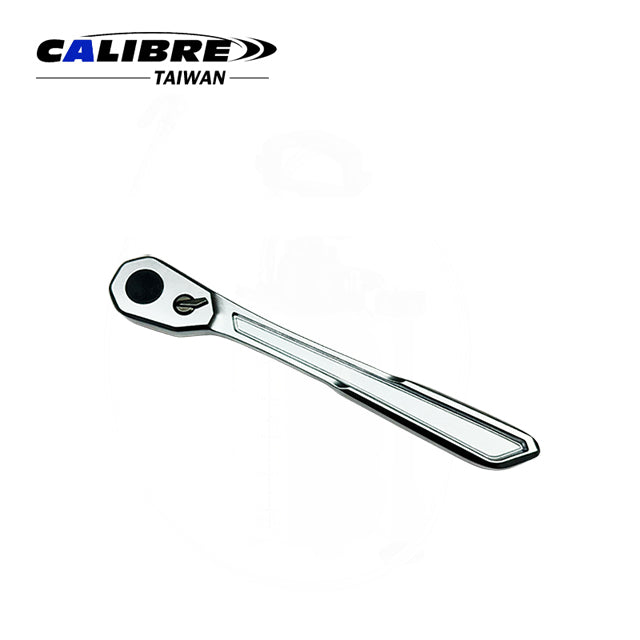

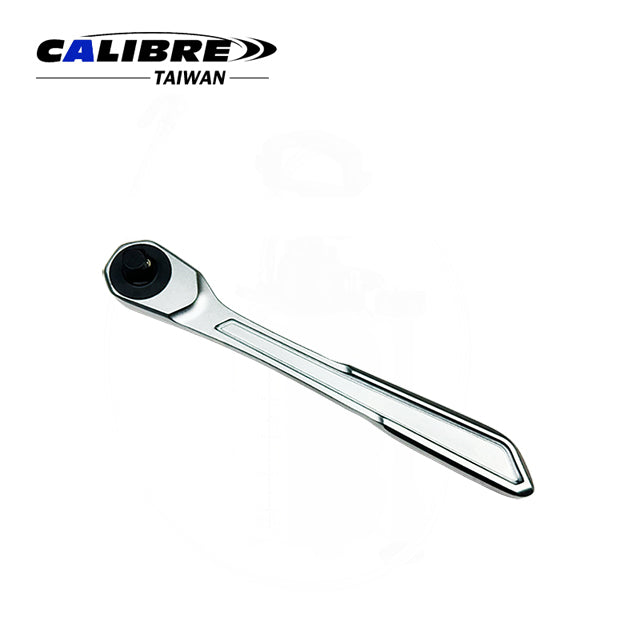

CA250043 TAIWAN CALIBRE 90T Slim Ratchet Handle

CA250043 TAIWAN CALIBRE 90T Slim Ratchet Handle

Size
Slim Head

Ratchet handle

Ratchet handle operation is optimized with this 90-tooth slim design. First, select the 1/4", 3/8", or 1/2" drive size based on your socket and torque requirements. Flip the reversible lever to change the drive direction. The high-density gear allows for a 4-degree swing arc, perfect for restricted areas. Being 30% lighter and thinner than standard models, it reduces fatigue during professional automotive or industrial assembly tasks.

Size:

CA250043-14:
  • 1/4" Dr, 131 × 22.7 × 17 mm, 86 g
  • Torque 62 Nm
CA250043-38
  • 3/8" Dr, 199 × 30.7 × 22.5 mm, 206 g
  • Torque 202 Nm
CA250043-12
  • 1/2" Dr, 249 × 38.8 × 29 mm, 420 g,
  • Torque 512 Nm

Material:

  • Chrome plated / Satin finish / CR-V Steel / CR-MO Square Drive

Feature:

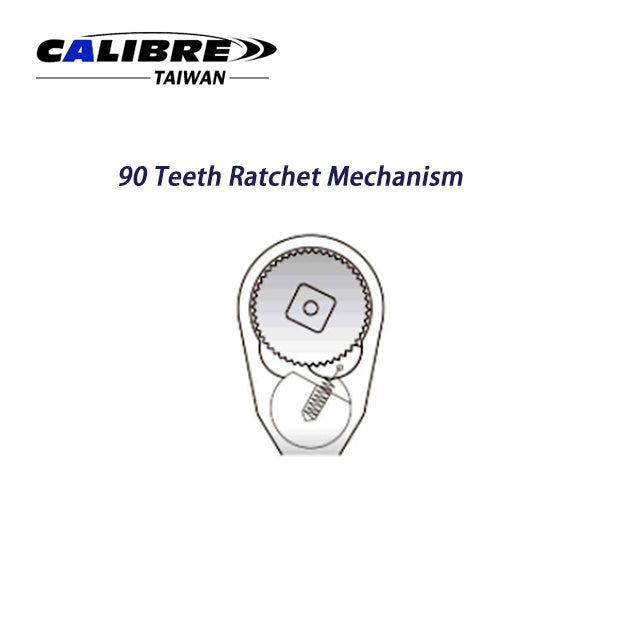

  • 90 teeth ratchet mechanism.
  • American type pawl gear system

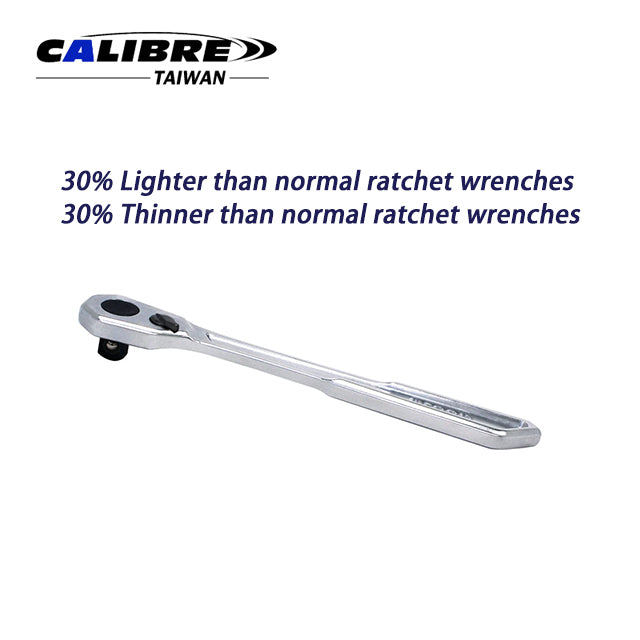

  • 30% lighter than normal ratchet wrenches

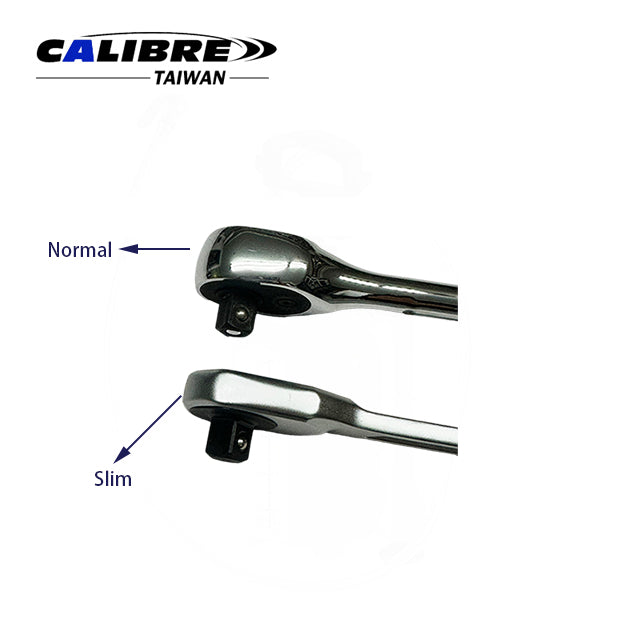

  • 30% thinner than normal ratchet wrenches

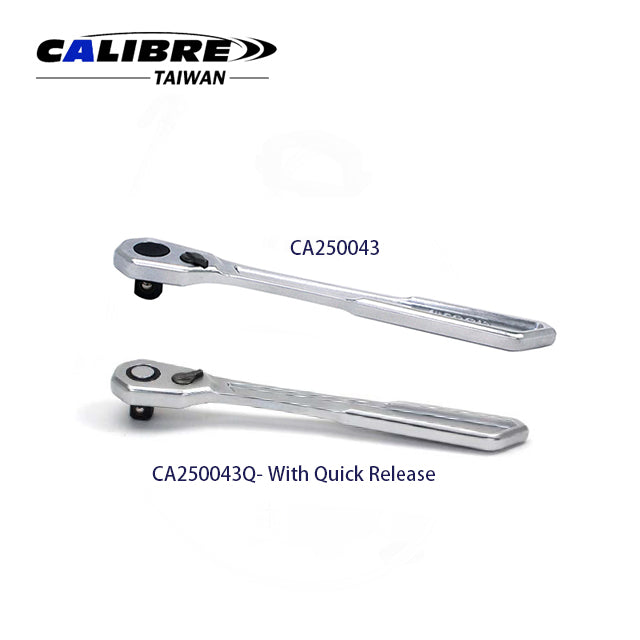

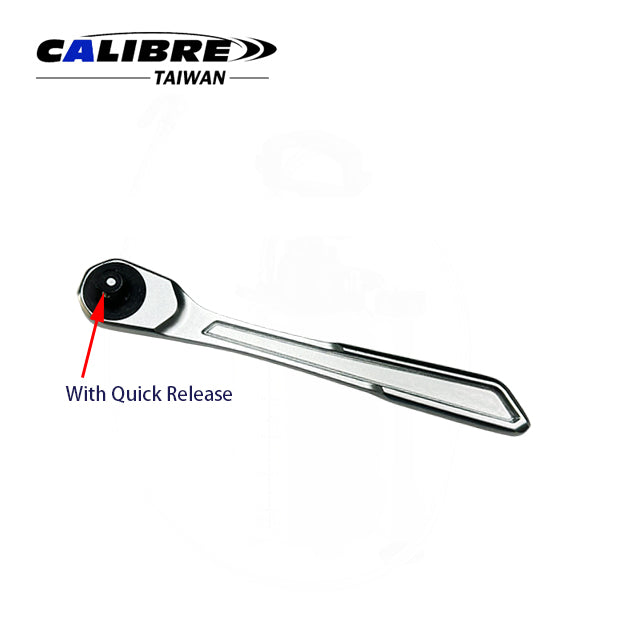

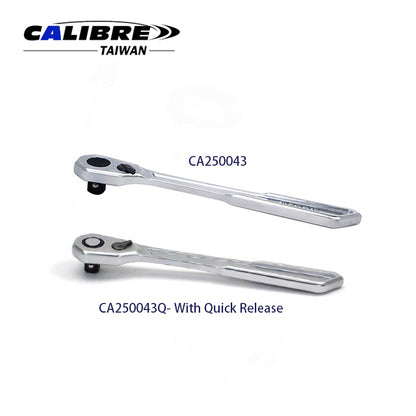

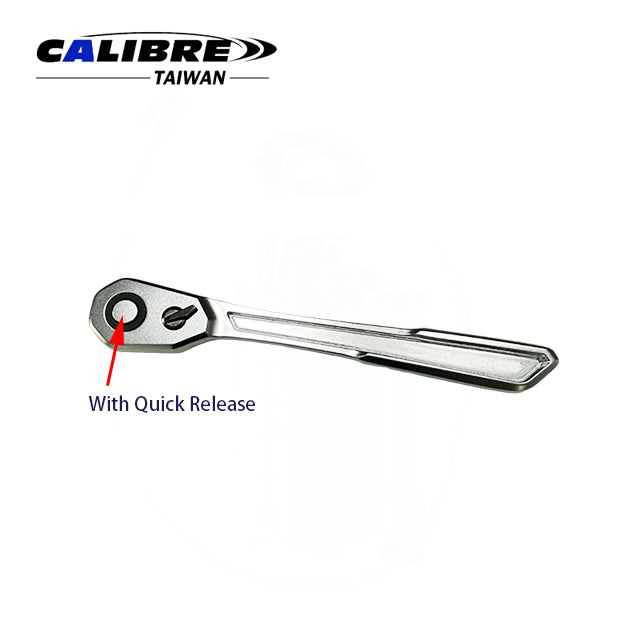

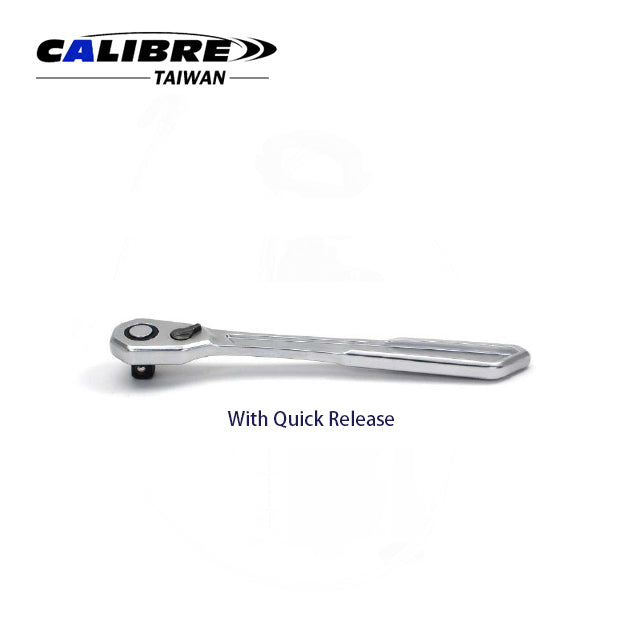

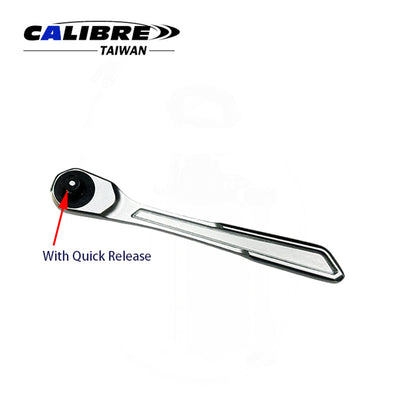

  • Reversible, Without Quick Release.
Packaging:
  • 1pc/Bulk
  • CA250043-14: 20/200pc/19.5/20.5kgs/0.9'
  • CA250043-38: 10/100pc/21.9/22.9kgs/1.12'
  • CA250043-12: 10/50pc/20/21kgs/0.73'

Know More:
Ratchet Wrenches - What are DIN, ANSI (ASME), JIS, ISO Torque standards ?
