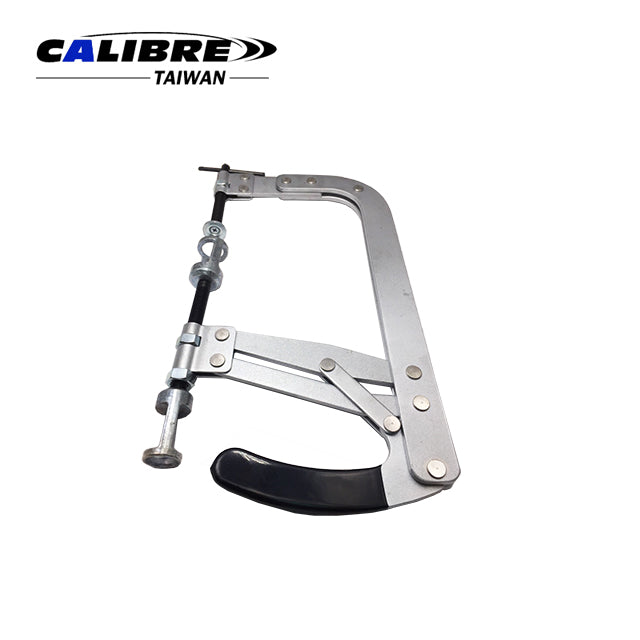

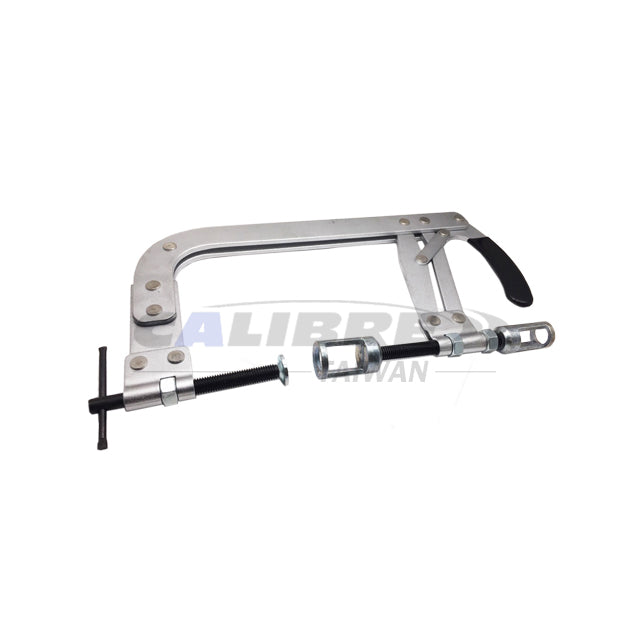

CA230003 TAIWAN CALIBRE Large Valve Spring Compressor

CA230003 TAIWAN CALIBRE Large Valve Spring Compressor

This valve spring removal tools set is designed for overhead valve engines. Use the direct-action lever to compress springs for easy retainer access, even in tight spaces.
Attach one of the two adapters (25mm or 30mm) to fit the valve spring retainer. Adjust jaw opening from 35mm to 142mm and ensure 150mm throat clearance. Carefully compress the spring and remove the retainer. These valve spring removal tools improve visibility and control during disassembly.
Feature:
  • Designed to compress valve springs on overhead valve engines.

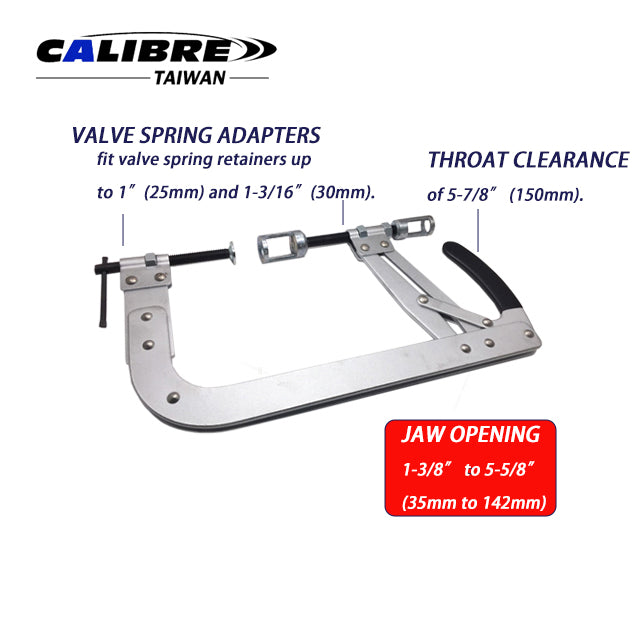

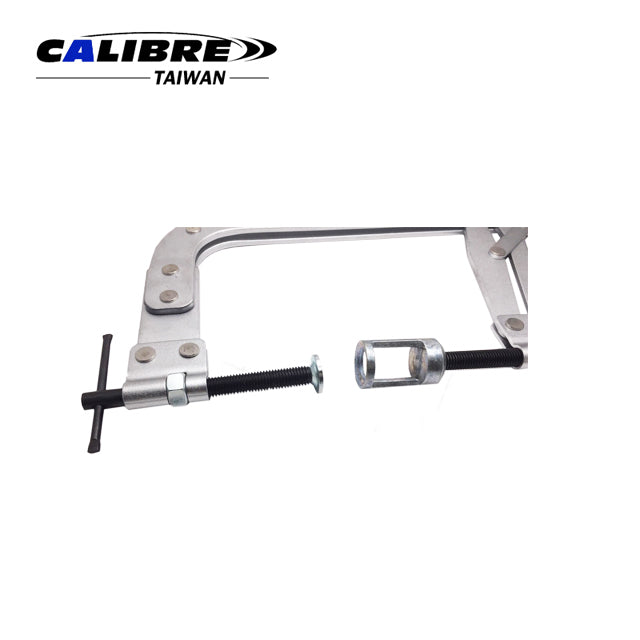

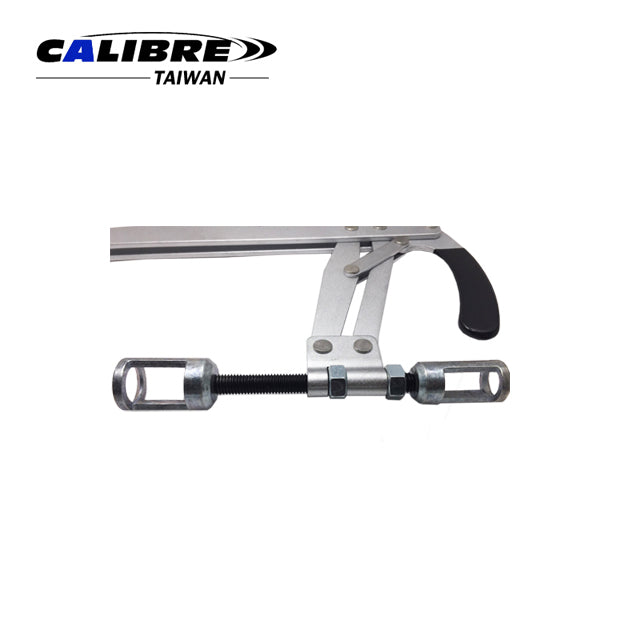

  • Includes two valve spring adapters, which fit valve spring retainers up to 1”(25mm) and 1-3/16”(30mm).
  • Unique, direct action compressor lever give better visibility of valve spring retainers located in difficult access areas.
  • Jaw opening of 1-3/8” to 5-5/8” (35mm to 142mm); Throat clearance of 5-7/8” (150mm).
Packaging:
  • 1pc/White Box
  • 6pc/13.8/14.8kgs/0.8'
