• 1” Pinless Straight Impact Wrench
  • Pinless Straight Impact Wrench
  • 1 inch impact gun
1 3

Projen Taiwan

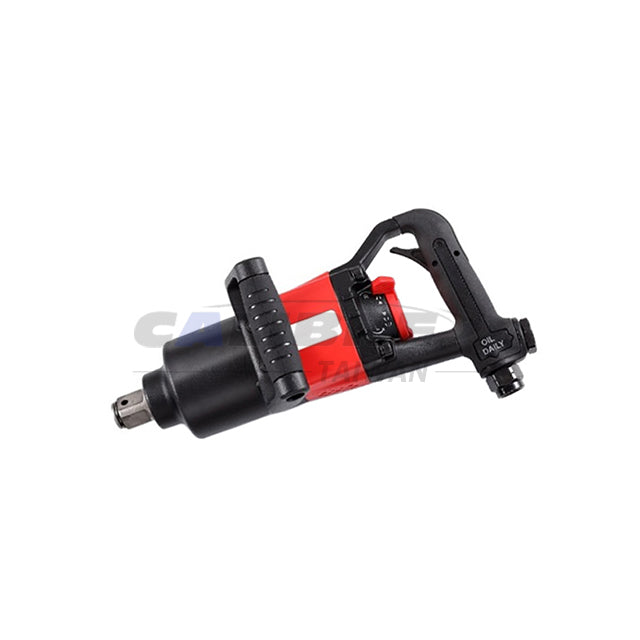

CA220016L1 CALIBRE 1” Pinless Straight Impact Wrench

CA220016L1 CALIBRE 1” Pinless Straight Impact Wrench

1 inch impact gun

1 inch impact gun (CA220016L1) operation guide: Connect 1/2" air inlet to a minimum 3/4" hose providing 90 PSI. Grip ergonomic handle and choose inner or outer trigger to run at 5500 RPM. Select from 3 torque settings for up to 2000 ft-lb maximum torque. Adjust upward or downward plastic exhaust cover for comfort during heavy-duty fastening tasks.

Feature:

  • Composite Housing, Light Weight
  • Rugged Front Cover-Aluminum Metal For Durability
  • Upward/Downward Plastic Exhaust Cover
  • 3 Torque Settings, Pinless
  • Ergonomics Handle
  • Inner/Outer Trigger Design
  • Backward/Downward Air Inlet Design

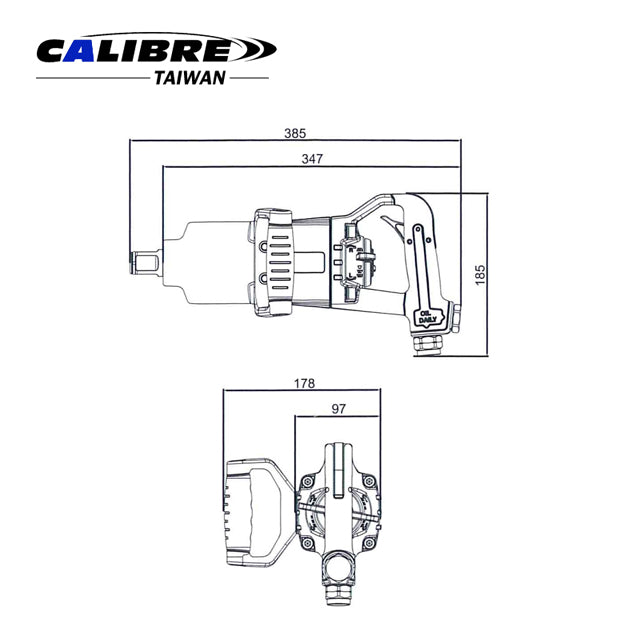

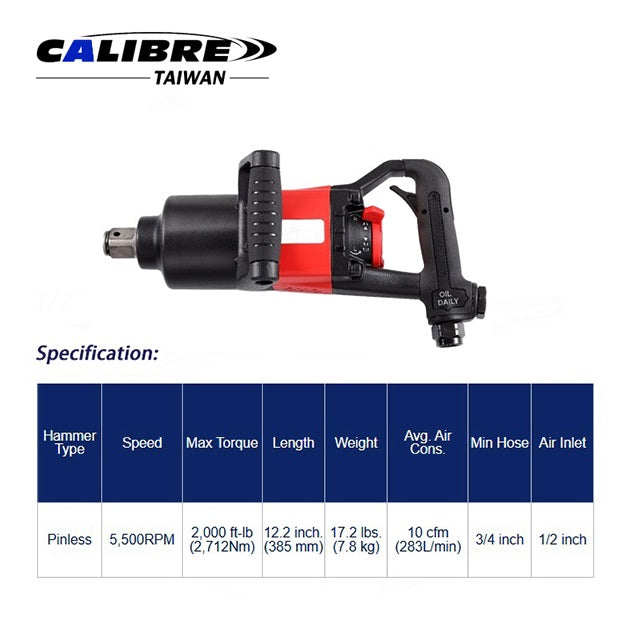

Size:

  • Length: 385mm
  • Weight: 7.8kg (17.2lbs)
  • Speed: 5500RPM
  • Max. Torque @90psi: 2712 Nm (2000 ft-lb)
  • Working Torque @90psi: 515-2400 Nm (380-1800 ft-lb)
  • Avg. Air Consumption: 383 L/min (10 cfm)
  • Min Hose: 3/4"
  • Air Inlet: 1/2"
Packaging:
  • 1pc/Inner Box
  • 10pc/5.5/6.5kgs/0.6'
