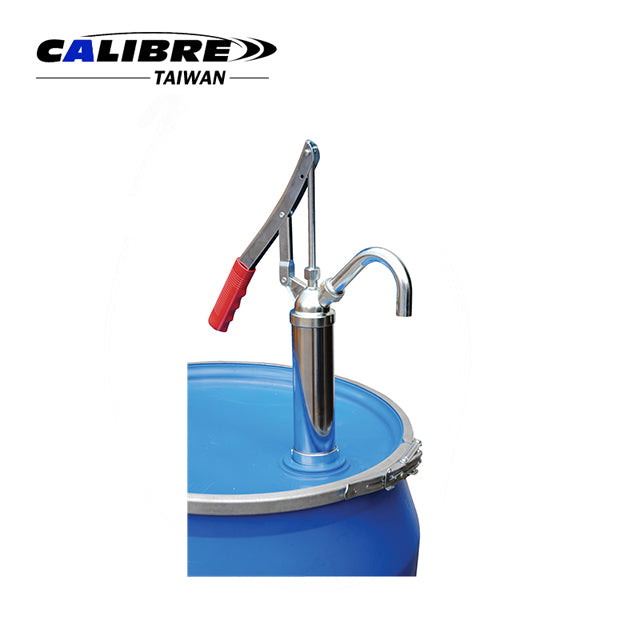

CA140023 TAIWAN CALIBRE Stainless Steel Lever Action Drum Pump

CA140023 TAIWAN CALIBRE Stainless Steel Lever Action Drum Pump

Drum pump

Drum pump lever action transfers chemicals and petroleum fluids safely. Features 304 SS body, PVDF/PTFE parts, 11 oz/stroke, self-priming, rotatable 3/4" spout, and adjustable suction tube for 15–55 gal drums.

Specifications:

  • Pump Type: Lever Action
  • Flow: 11 oz / Stroke
  • Maximum Fluid Temperature: 140˚F / 60˚C
  • Mounting: 1-1/2" & 2" MNPT Bung Adapter
  • Suction Tube Length: 35" Maximum
  • Inlet: 1" O.D.
  • Outlet: 3/4" O.D. Curved Spout
  • Wetted Parts: 304 S.S. & PVDF & PTFE
  • Maximum Viscosity: 2,000 SSU

Material:

  • 304 Stainless steels

Feature:

  • This pump has a 304 stainless steel body and PVDF & PTFE internal parts, is ideal for transferring soluble, corrosive, volatile and aggressive chemicals, such as Esters,
  • Alcohols, Alkali, Strong Acids, Hydrocarbons and other fluids are compatible with pump materials of construction.
  • Also suitable for transferring Petroleum based fluids, such as Automotive Additives, Diesel, Lube Oils, Kerosene, Solvents, Thinner, Benzene, Cleaning Solutions, Fuel Oils, Transmission Fluid, and water-based chemicals, Anti-Freeze, Soaps, Waxes, etc.
  • Supply with 2" & 1-1/2" bung adapter and a self-adjusting telescopic suction tube to fit most 15, 30 and 55gallon drums.
  • Self-priming unit.
  • Discharge spout can be rotated 180° and can fit I.D. 3/4" garden hose.
Packaging:
  • 1Set/Color Box
  • 10Set/21.9/23.9kgs/2.2'
