Projen Taiwan - Auto Tools, Hand Tools manufacturer

CA140013 - TAIWAN CALIBRE Rotary Drum Pump

CA140013 - TAIWAN CALIBRE Rotary Drum Pump

Optional No.:
  • Cast Iron: CA140013
  • Cast Iron with PE extension hose: CA140013A
  • Grey pump body: CA140013D

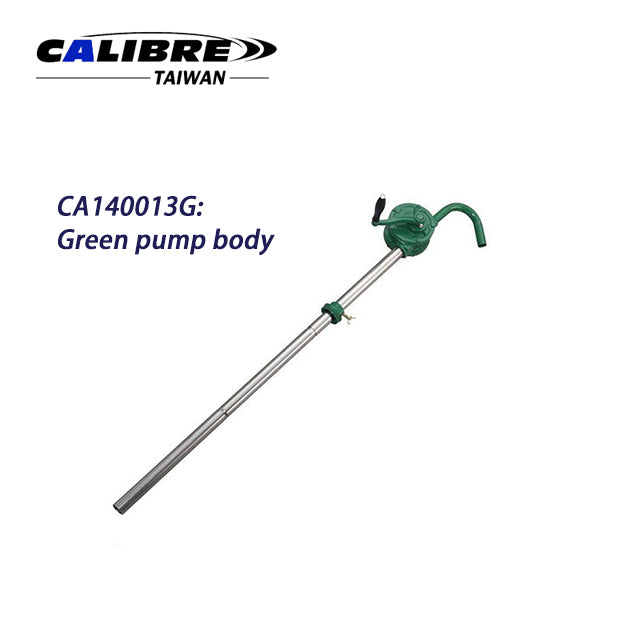

  • Green pump body: CA140013G
Specifications:
  • Pump Type: Rotary - Vane
  • Flow: 8 oz / Stroke
  • Maximum Fluid Temperature: 140˚F / 60˚C
  • Mounting: 2 inch MNPT Bung Adapter
  • Suction Tube Length: 40" Maximum
  • Inlet: 1-1/4" O.D.
  • Outlet: 1" O.D. Curved Spout
  • Wetted Parts: Cast Iron, Steel & NBR
  • Maximum Viscosity: 2,000 SSU
Feature:
  • Commonly used for dispensing or transferring non-corrosive and petroleum based fluids, such as Diesel, Kerosene, Transmission Fluid, Machine Oil, Lube Oil,
  • Fuel Oil, Anti-Freeze, etc.
  • Ideal for heavy-duty use in industrial, automotive and agricultural applications.
  • Supply with 2" bung adapter and 3-piece plated steel suction tube to fit most 15, 30 and 55 gallon drums.
  • Self-priming unit.
  • Do not use with organic solvents, alkalis, acids, petrol and water-based fluids.
  • Liquids do not with dirt to ensure pump life.
Packaging:
  • 1pc/Inner Box
  • 6pc/29/31kgs/2.2’
