CA130003 TAIWAN CALIBRE 72 Teeth Digital Torque Wrench

CA130003 TAIWAN CALIBRE 72 Teeth Digital Torque Wrench

Digital torque wrench

Digital torque wrench operation starts smoothly. First, insert batteries. Next, choose units. Subsequently, set presets. Afterwards, select Peak or Track mode. Meanwhile, during tightening, observe backlit readings. Moreover, heed alarms simultaneously. Additionally, log memory afterwards. Consequently, achieve accuracy. Furthermore, auto shut-off occurs later. Thus, store safely finally.

Size:

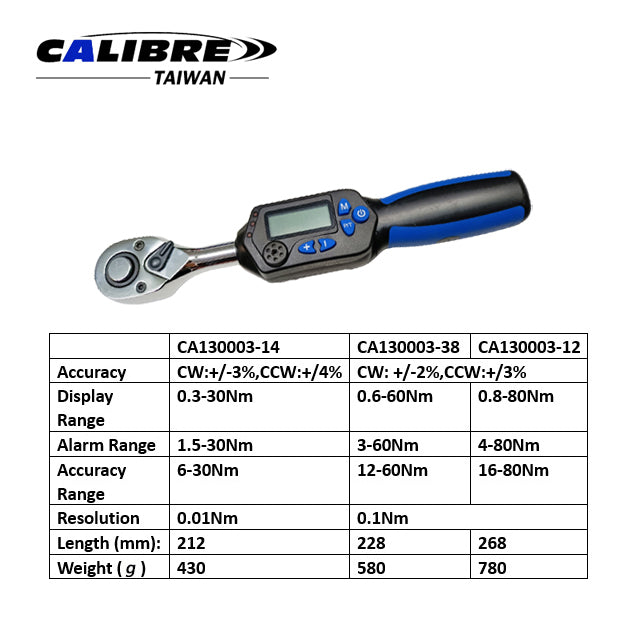

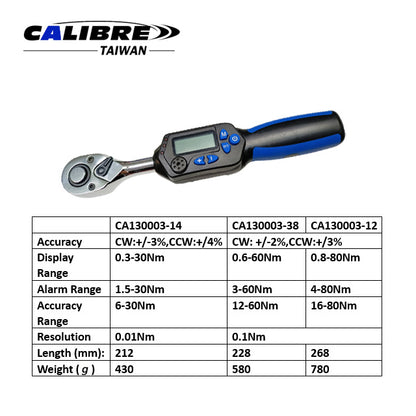

Specification CA130003-14 CA130003-38 CA130003-12

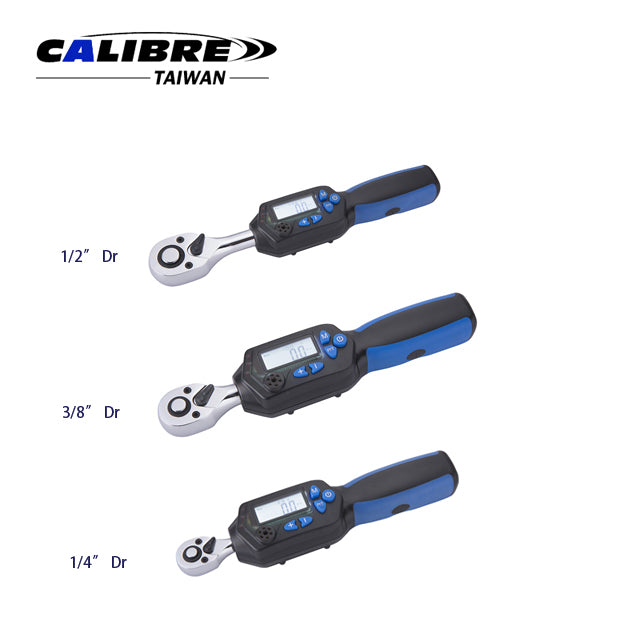

Drive Size 1/4" Dr. 3/8" Dr. 1/2" Dr.
Accuracy CW: ±3%
CCW: ±4%		 CW: ±2%
CCW: ±3%		 CW: ±2%
CCW: ±3%
Display Range 0.3–30 Nm 0.6–60 Nm 0.8–80 Nm
Alarm Range 1.5–30 Nm 3–60 Nm 4–80 Nm
Accuracy Range 6–30 Nm 12–60 Nm 16–80 Nm
Resolution 0.01 Nm 0.1 Nm 0.1 Nm
Length 212 mm 228 mm 268 mm
Weight (g) 430 580 780

Contents:

  • Preset: 10
  • Memory: 100(10memory for each preset)
  • Unit: Nm, Kg-m,Kg-cm, Lb-ft, Lb-in
  • Mode: Peak/Track
  • Backlight: Yes
  • Battery: AAA*2pcs
  • Battery Life: 55hrs
  • Auto Shout Off: 60seconds
  • Storage Temp: -20ºC -70ºC (-4 ºF-157.9ºF)
  • Operating Ambient Temp: -10ºC-60 ºC (14ºF-139.9 ºF)
  • Operating Humidity: 15-90% noncondensing

Packaging:

  • 1pc/Blow Mould Case
  • CA130003-14: 6/12pc/8.4/9.5kgs/1.3'
  • CA130003-38: 6/12pc/10.5/11.5kgs/1.3'
  • CA130003-12: 6/12pc/13.2/14.2kgs/1.3'
