CA003955-CA003958 TAIWAN CALIBRE Injection Line Socket

CA003955-CA003958 TAIWAN CALIBRE Injection Line Socket

Size

Fuel line wrench

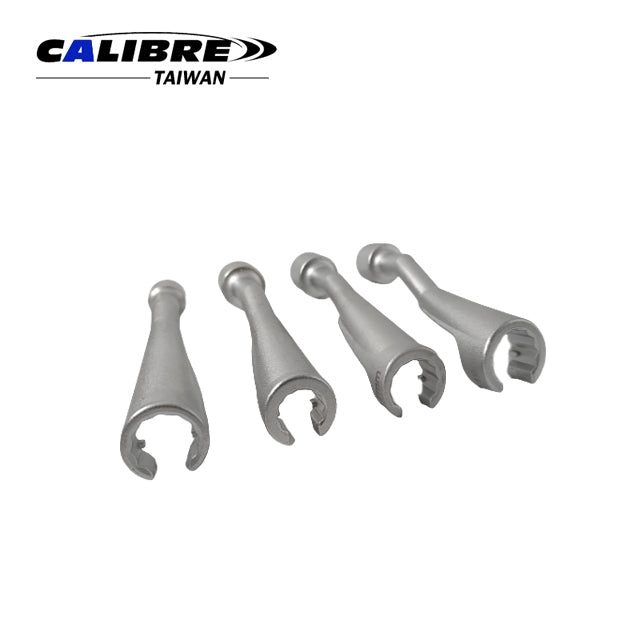

Fuel line wrench sockets CA003955-CA003958 are 12-point open tools designed for common rail injection systems on BMW, VW, and Mercedes engines. To operate, select the correct size (14mm to 19mm) and slide the open end over the injection line onto the screwed connection. Attach a 3/8" or 1/2" drive ratchet to apply steady torque, ensuring a secure fit to prevent damage to high-pressure fuel lines during maintenance.

Size:

  • CA003955: 3/8" Dr x 17 x 115mmL
  • CA003956: 1/2" Dr x 14 x 119mmL
  • CA003957: 1/2" Dr x 17 x 119mmL
  • CA003958: 1/2" Dr x 19 x 119mmL

Feature:

  • Open 12-point socket for the operation of screwed connections on injection lines
  • On man commercial vehicles
  • With D 20 engines

Application:

  • Common rail injection systems:
  • CA003955: For BMW Diesel Engines and Opel 2.5TD Engines.
  • CA003956: For BMW, VW
  • CA003957: For Mercedes 100.130.314.360.360h.352a.346/355.401.402.403.407h.615.616.617
  • CA003958: For Mercedes 352.A.346/355.A.401.402/422.LA.403.407h.
Packaging:

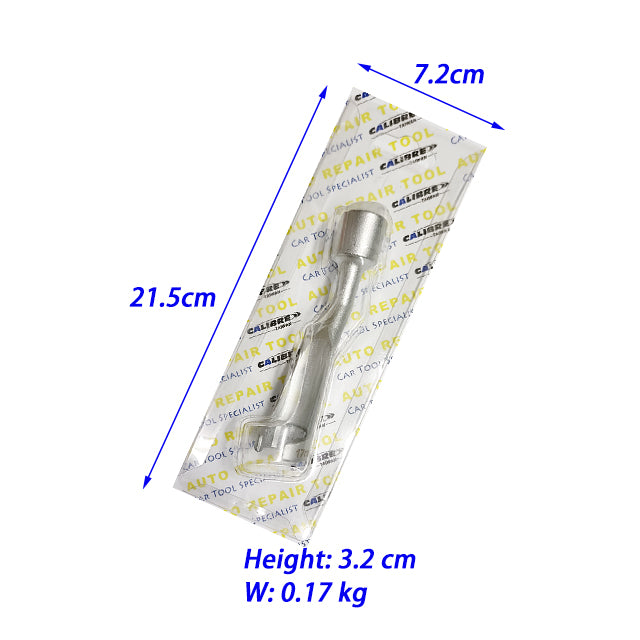

  • 1pc/sliding card
  • CA003955: 96pc/14.8/15.8kgs/1.68'
  • CA003956: 96pc/16.4/17.4kgs/1.68'
  • CA003957: 96pc/16.5/17.5kgs/1.68'
  • CA003958: 96pc/16.5/17.5kgs/1.68'
