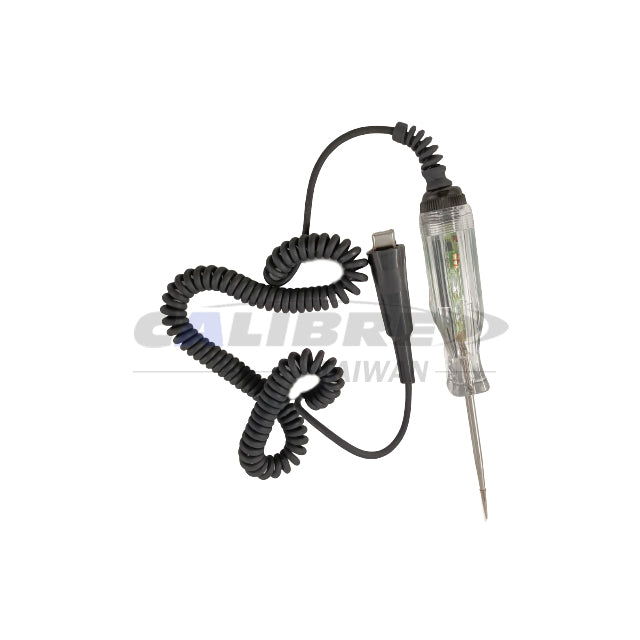

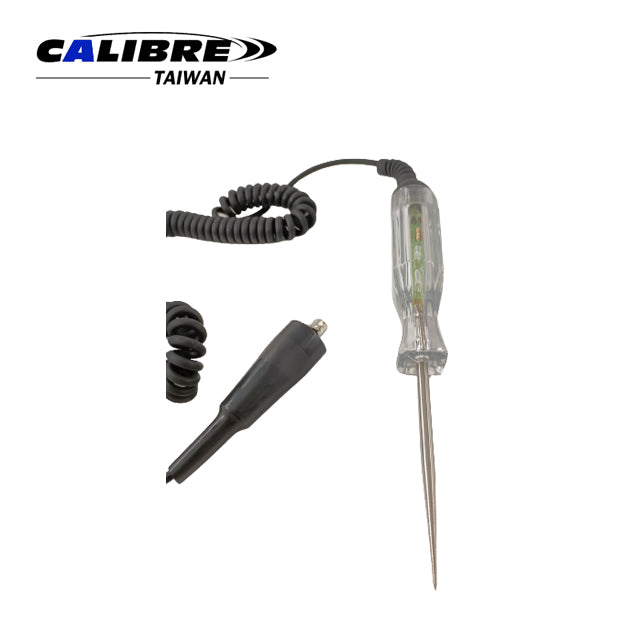

CA003937 TAIWAN CALIBRE 12-42V LED Heavy Duty Circuit Tester

CA003937 TAIWAN CALIBRE 12-42V LED Heavy Duty Circuit Tester

Voltage detector pen

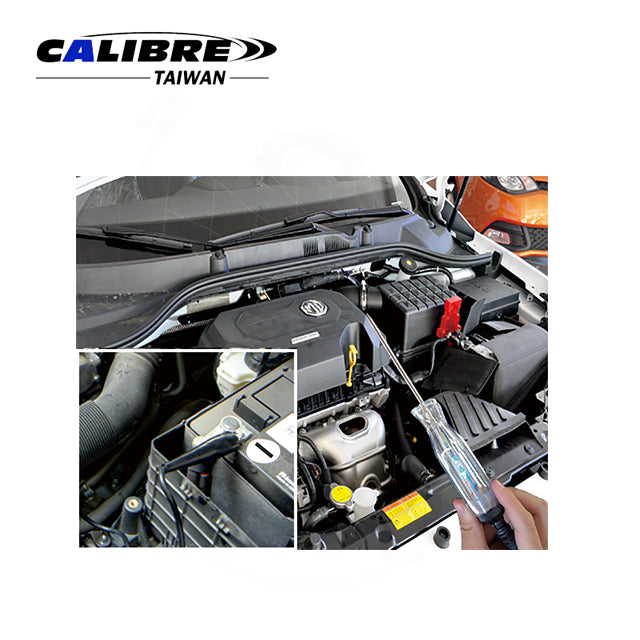

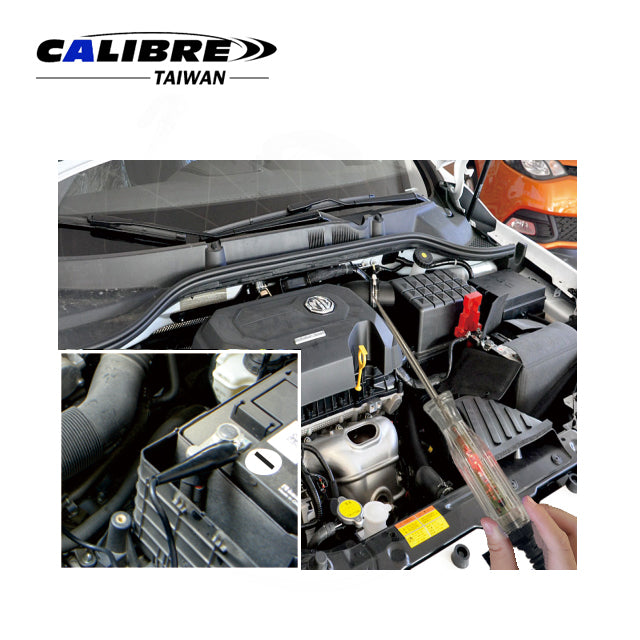

Voltage detector pen CA003937 TAIWAN CALIBRE tests heavy-duty 12-42V circuits. To operate: Attach the insulated alligator clip to a proper ground. Probe the wire or circuit using the 90mm stainless-steel probe. Check the 360-degree clear handle; two bright LEDs automatically identify voltage. A blue light indicates under 36V for general 12V cars, while a red light signals over 36V for hybrid 42V vehicles, preventing accidental short circuits safely.

Feature:

  • With CE and PAHs Approval.
  • Compatible with current 12V system plus newer 42V system.
  • Automatic voltage identification featuring BLUE for under 36V and RED for over 36V.
  • Safe for low current circuits since tester only draws 3mA at 12V.
  • Two super-bright LED for visibility under all conditions.
  • Heavy-duty stainless-steel probe (length: Approximately 90mm / 3.5")
  • 12-feet cord remains flexible in low temperature.

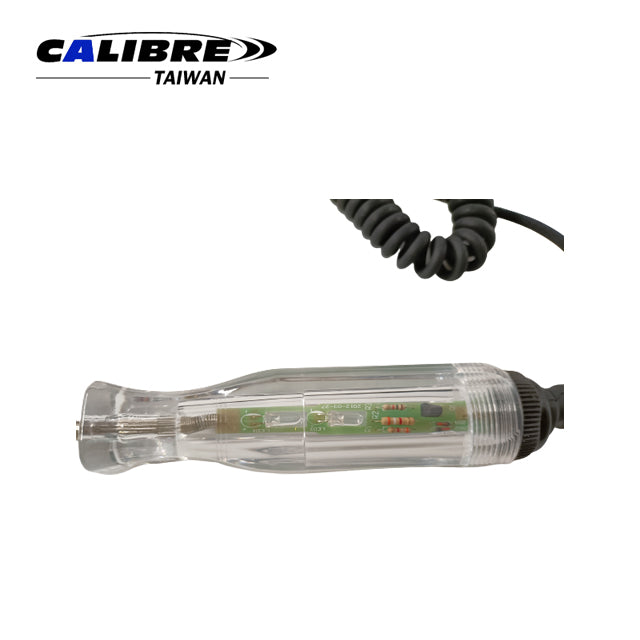

  • New crystal-clear handle provides 360° visibility, ever under bright light.
  • Insulated handle and heavy-duty alligator clip(ground) helps prevent accidental shorts.

Application:

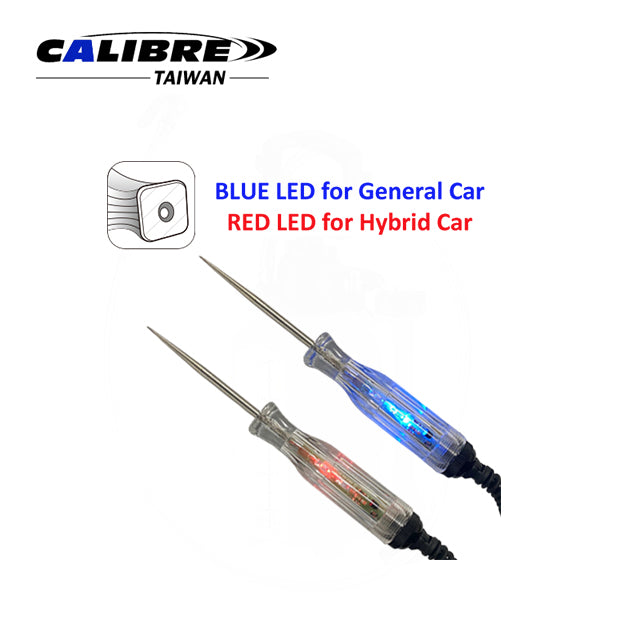

  • Automatic voltage identification:
  • BLUE LED for General car (12 Volt)
  • RED LED for Hybrid car (42 Volt)
Packaging:
  • 1pc/Sliding Card
  • 50/60pc/14.6/15.6kgs/3.2'
