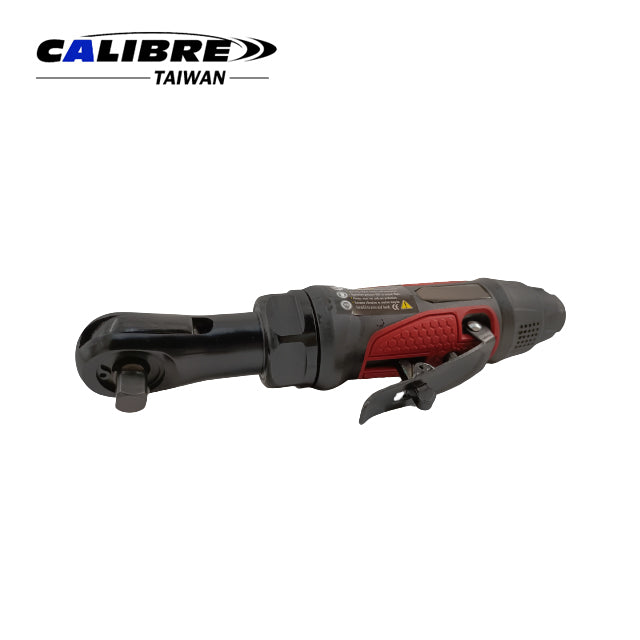

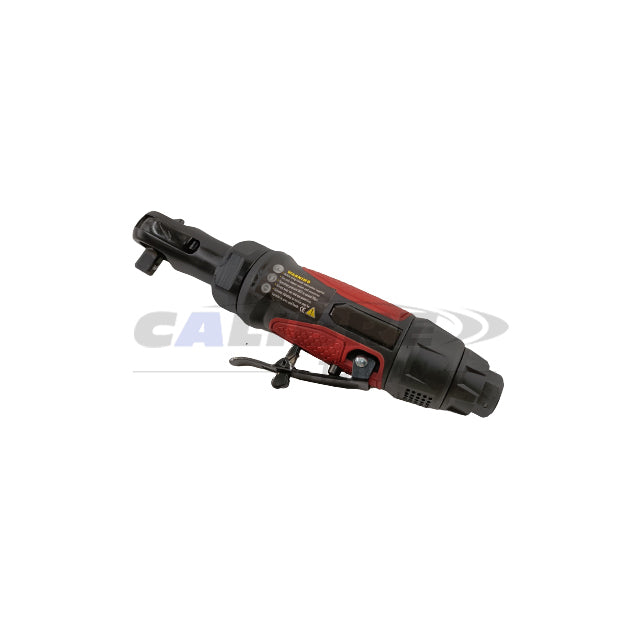

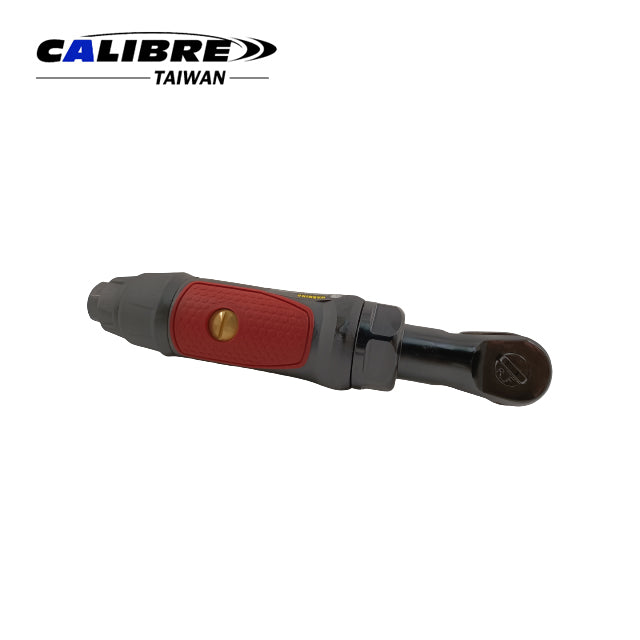

CA002282 TAIWAN CALIBRE 3/8” Composite Mini Air Ratchet

CA002282 TAIWAN CALIBRE 3/8” Composite Mini Air Ratchet

Air ratchet wrench

Air ratchet wrench provides compact and controlled fastening with up to 30 ft-lb torque. First, connect the 1/4-inch air inlet and set pressure to 90 psi. Next, select the desired speed using the adjustable regulator. Then, operate the 3/8-inch ratchet at up to 280 rpm. Finally, adjust the 360-degree swivel exhaust to direct airflow away from the work area.

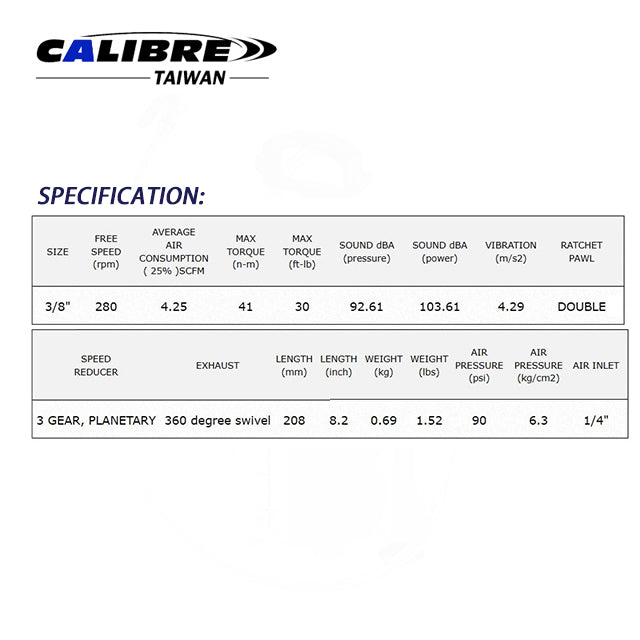

Feature:

  • Free speed - 280 rpm
  • Air Consumption - 17scfm
  • Max Torque - 30 ft-lb (41Nm)
  • Sound DBA (pressure) - 92.61
  • Sound DBA (power) - 103.61
  • Vibration (m/s2) - 4.29

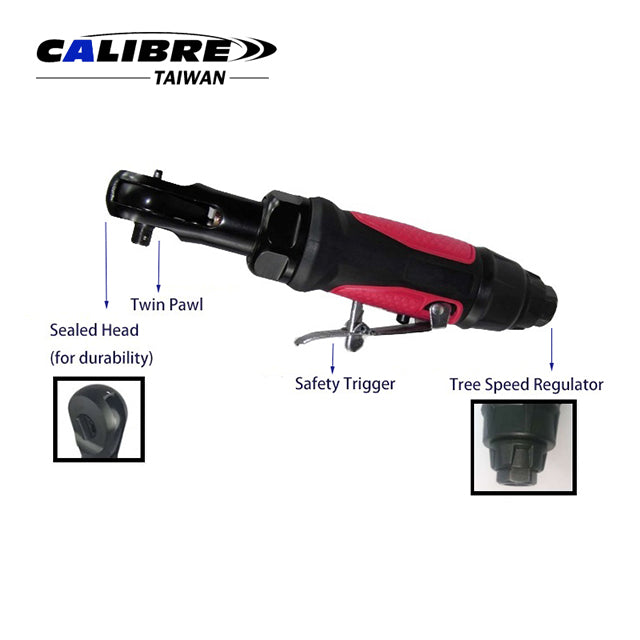

  • Ratchet PAWL - Double
  • Speed Reducer - 3 Gear, Planetary
  • Exhaust - 360 Degree Swivel
  • Length - 208mm (8.2 inch)
  • Weight - 0.69kg (1.52 lbs)
  • Air Pressure - 90psi (6.3 kg/cm2)
  • Air Inlet - 1/4"
  • Adjustable regulator
  • Ratchet housing: close head
Packaging:
  • 1pc/Plain Grey Box
  • 20pc/16/17kgs/0.8’
