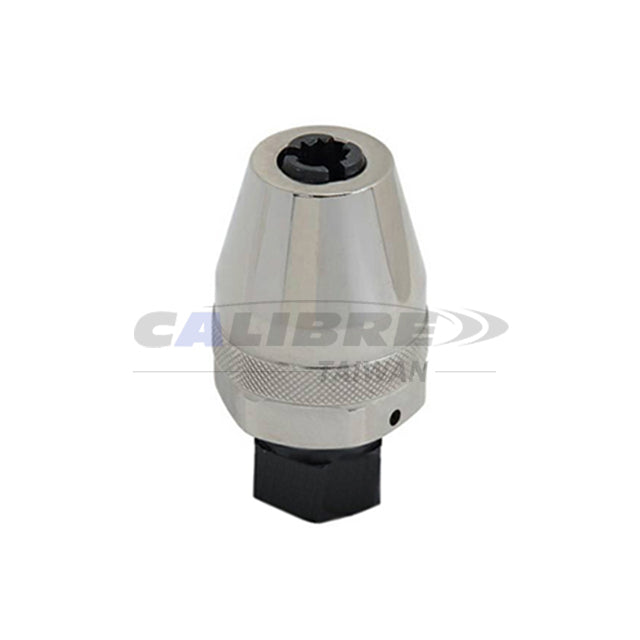

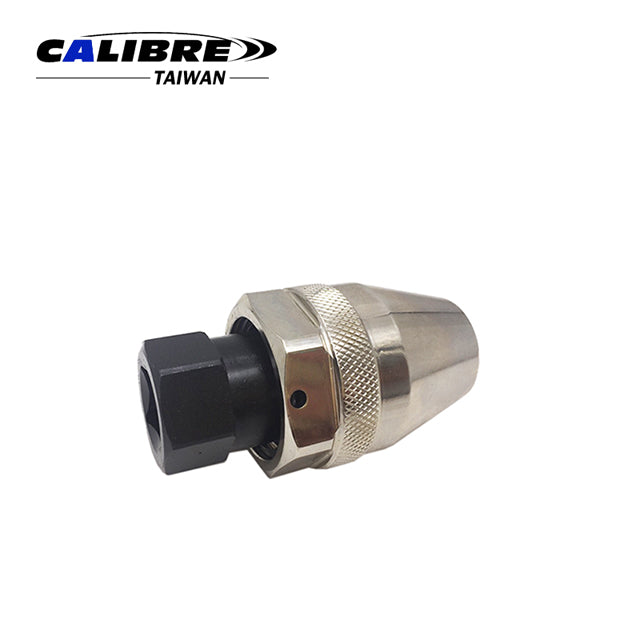

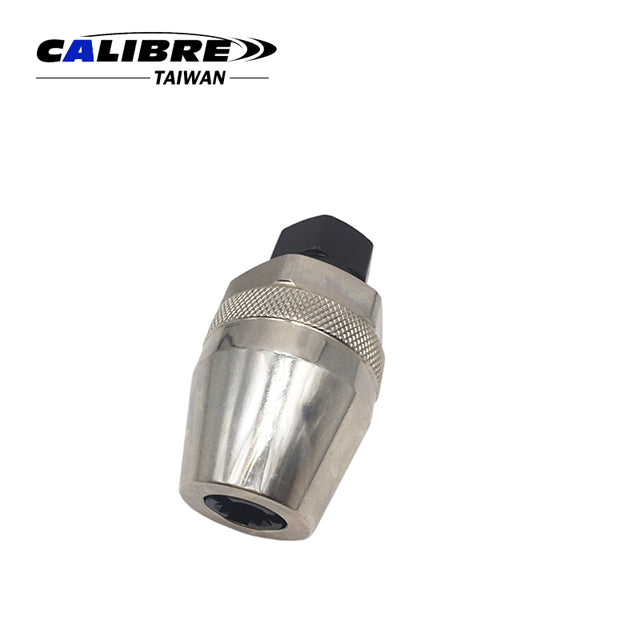

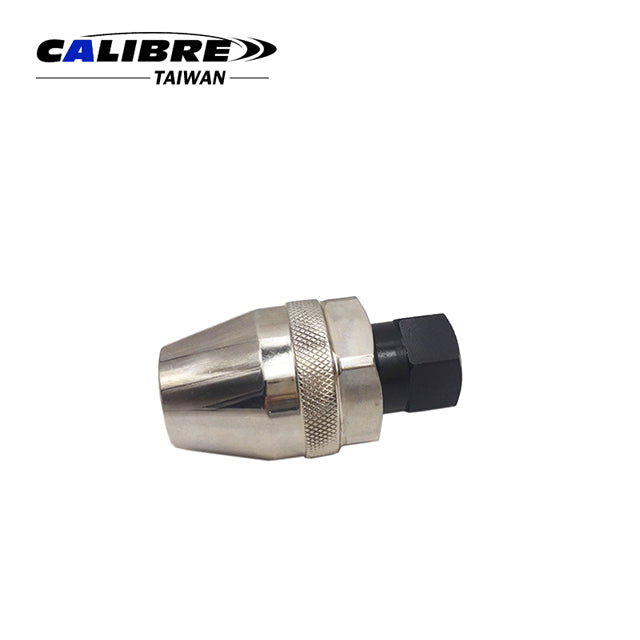

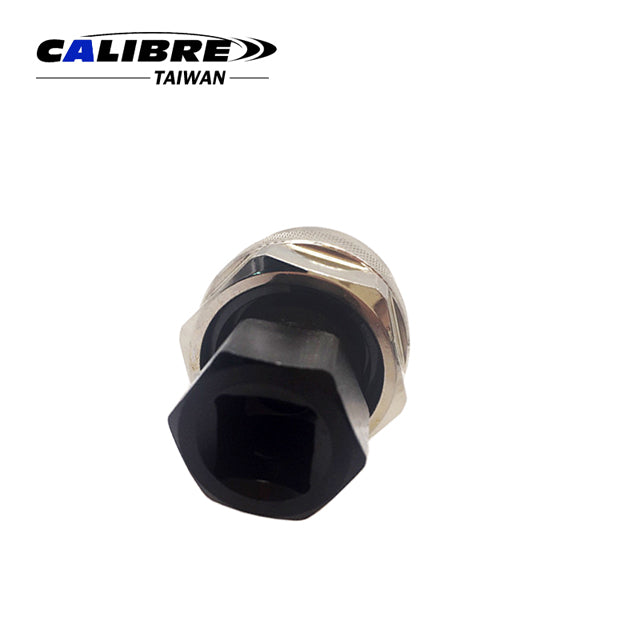

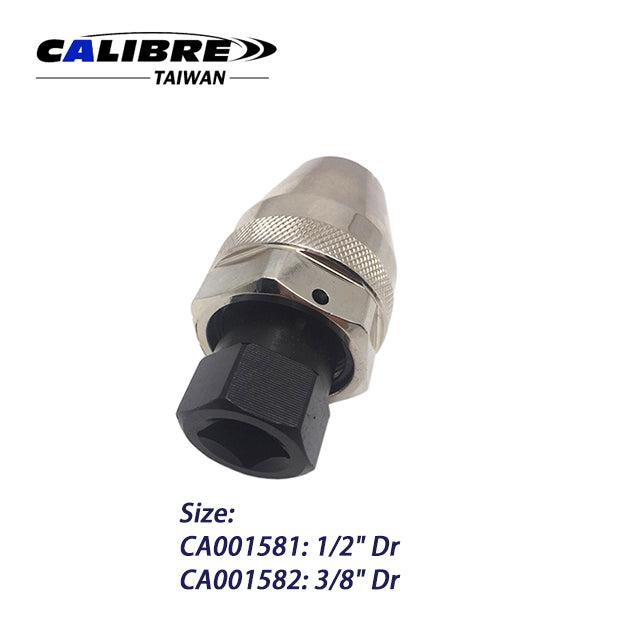

CA001581 - CA001582 CALIBRE 6-13mm Impact Stud Extractor

The Impact Stud Extractor is designed for use with a 3/8-inch drive, ideal for impact wrenches and ratchets. Additionally, it works well with flat wrenches, adjustable wrenches, sockets, and locking pliers. This versatile tool adjusts to fit studs from 1/4-inch to 1/2-inch (6mm to 12mm), making it highly adaptable.

To operate, simply place the Impact Stud Extractor over the stud. Next, turn the bottom hex flat nut counterclockwise to tighten the jaws. Once the jaws securely grip the damaged stud or bolt, continue turning counterclockwise to remove it easily. To release, turn the extractor clockwise.

However, be aware that the strong clamping force may slightly wear the stud’s threads. Nonetheless, this tool saves time by allowing for quick and effective stud removal. For any additional questions, our customer service team is ready to assist.
